FZJ70

Toyota LAND-CRUISER · 1992 · 3,982 parts · 203 categories
FZJ70 ×

← Back to categories

3,982 items

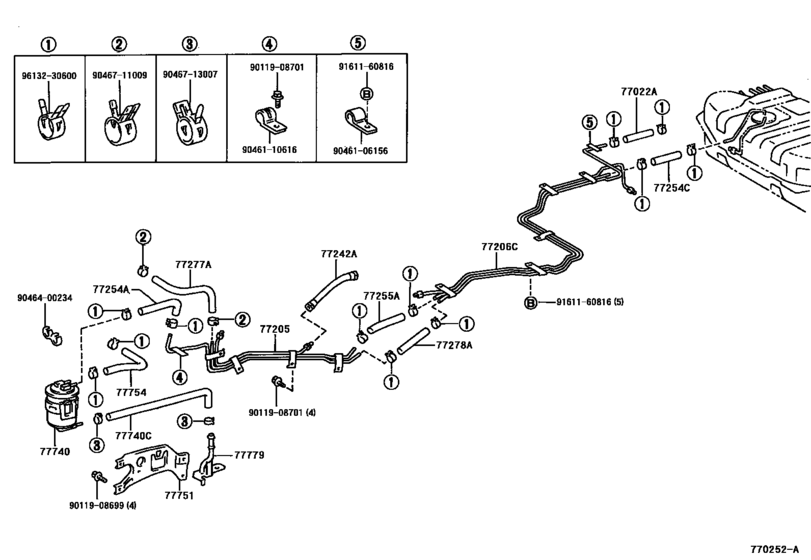

Fuel Tank & Tube ([08.1992 - 06.2001] FUEL TUBE (9208-0106)FZJ70..EFI) 28
#OEMPart name
77022 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77022 95337-06020 Hose, Differential Pressure Control
77022 95333-06030 Hose, Fuel
77022 95338-06030 HOSE, FUEL
77205 77206-60100 Tube Sub-Assy, Fuel Main
77206 77205-60820 Tube Sub-Assy, Fuel Main, No.2
77242 77259-60330 Hose, Fuel, No.1 (For Main Tube, No.2)
77254 77249-60080 Hose, Fuel, No.1 (For Emission Tube, No.1)
77277 95334-06040 Hose, Fuel, No.2(For Fuel Main Tube)
77277 95334-06055 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77740 77740-60380 Canister Assy, Charcoal
77740 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77751 77751-60170 Bracket, Charcoal Canister Base
77754 77754-60170 Hose, Charcoal Canister Outlet, No.1
77779 77779-60030 Tube, Charcoal Canister Outlet
9011908699 90119-08699 New Genuine Part
9011908701 90119-08701 BOLT
9046106156 90461-06156 New Genuine Part
9046110616 90461-10616 New Genuine Part
9046400234 90464-00234 New Genuine Part
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
