Search › Model › FZJ70

FZJ70

Toyota LAND-CRUISER · 1992 · 3,982 parts · 203 categories

3,982 items

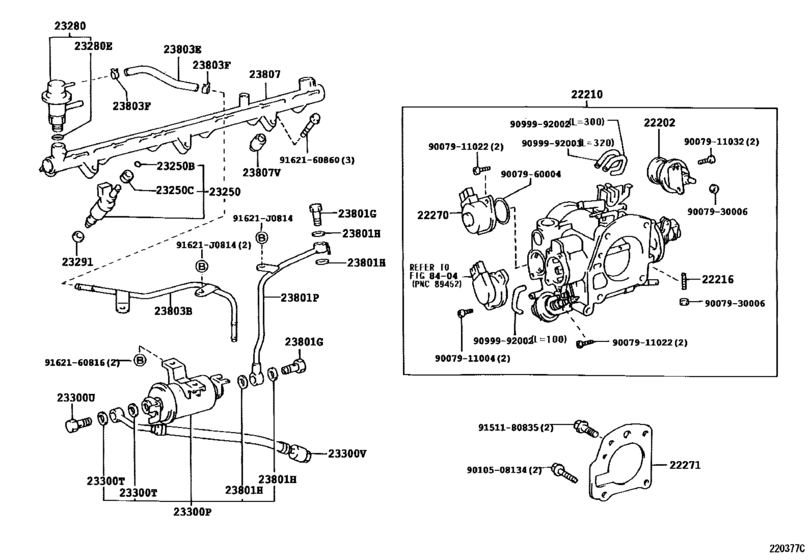

Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75) 54

#	OEM	Part name
22202	22202-66030	Dash Pot Sub-Assy
22210	22210-66060	Body Assy, Throttle
22270	22270-66011	Valve Assy, Idle Speed Control(For Thlottle Body)
22271	22271-66010	Gasket, Throttle Body
23091	77209-60130	Tube Sub-Assy, Fuel Pump
23206	77203-60110	Bracket, Fuel Pump
23206	77169-14010	Gasket, Fuel Pump Bracket
23217	23217-46060	Filter, Fuel Pump
23220	23221-66040	Pump Assy, Fuel
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23239	23239-11010	Hose, Fuel Pump
23249	23249-74610	Rubber, Cushion(For Fuel Pump)
23250	23209-74080	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23280	23280-75010	Regulator Assy, Fuel Pressure
23280	90301-09002	Ring, O(For Fuel Pressure Regulator)
23291	23291-41010	Insulator, Injector Vibration
23300	23300-69045	Filter, Fuel(For Efi)
23300	90430-12026	Gasket
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23300	90923-01402	Hose, Fuel(For Fuel Inlet)
23801	23801-66020	Pipe Sub-Assy, Fuel, No.1
23803	23803-66020	Pipe Sub-Assy, Fuel, No.3
23803	95333-06010	Hose, Fuel
23803	95334-06010	Hose, Fuel
23803	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
91621	91621-J0814	Bolt (For Transmission Control Cable Bracket)
9007911004	90079-11004	New Genuine Part
9007911022	90079-11022	New Genuine Part
9007911032	90079-11032	New Genuine Part
9007911032	90079-11044	New Genuine Part
9007930006	90079-30006	New Genuine Part
9007960004	90079-60004	Ring, O(For Power Adjust)
9010508134	90105-08134	New Genuine Part
9011908701	90119-08701	BOLT
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9046712067	90467-12067	Clip(For Fuel Pump Hose)
9046713054	90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713054	96135-51300	Clamp, Hose
9048001303	90480-01303	Grommet, Fuel Hose
9094901182	90949-01182	Plate, Fuel Tube Grommet Support
9099992002	90999-92002	Air Hose (300 mm)
9099992003	90999-92003	Hose, Breather (For Transfer Case)
9151180835	91511-80835	Bolt(For Transaxle Case & Engine Setting)
9151180835	91511-C0835	Bolt(For Transaxle Case & Engine Setting)
9162160816	91621-60816	New Genuine Part
9162160816	91621-B0816	BOLT WWASHER
9162160860	91621-60860	BOLT WWASHER
9413060800	94130-60800	Nut(For Clutch Pedal Stopper)
9413060800	90170-A0003	New Genuine Part
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)

OEM	Part name	Category
22202-66030	Dash Pot Sub-Assy	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
22210-66060	Body Assy, Throttle	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
22270-66011	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
22271-66010	Gasket, Throttle Body	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23209-74080	Injector Assy, Fuel	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23217-46060	Filter, Fuel Pump	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23221-66040	Pump Assy, Fuel	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23239-11010	Hose, Fuel Pump	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23249-74610	Rubber, Cushion(For Fuel Pump)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23280-75010	Regulator Assy, Fuel Pressure	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23300-69045	Filter, Fuel(For Efi)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23801-66020	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
23803-66020	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
77169-14010	Gasket, Fuel Pump Bracket	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
77203-60110	Bracket, Fuel Pump	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
77209-60130	Tube Sub-Assy, Fuel Pump	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90079-11004	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90079-11022	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90079-11032	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90079-11044	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90079-30006	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90079-60004	Ring, O(For Power Adjust)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90105-08134	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90119-08701	BOLT	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90159-50219	BOLT	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90159-A0057	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90170-A0003	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90301-09002	Ring, O(For Fuel Pressure Regulator)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90430-12026	Gasket	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90467-12067	Clip(For Fuel Pump Hose)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90480-01303	Grommet, Fuel Hose	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90923-01402	Hose, Fuel(For Fuel Inlet)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90949-01182	Plate, Fuel Tube Grommet Support	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90999-92002	Air Hose (300 mm)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
90999-92003	Hose, Breather (For Transfer Case)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
91511-80835	Bolt(For Transaxle Case & Engine Setting)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
91511-C0835	Bolt(For Transaxle Case & Engine Setting)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
91621-60816	New Genuine Part	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
91621-60860	BOLT WWASHER	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
91621-B0816	BOLT WWASHER	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
94130-60800	Nut(For Clutch Pedal Stopper)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
94612-10800	Washer, Plate(For Repair Actuator Set)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
95333-06010	Hose, Fuel	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
95334-06010	Hose, Fuel	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
96135-51300	Clamp, Hose	Fuel Injection System ([08.1992 - ] (9208- )1FZFE..FZJ70,73,75)
