Search › Model › FN3
FN3

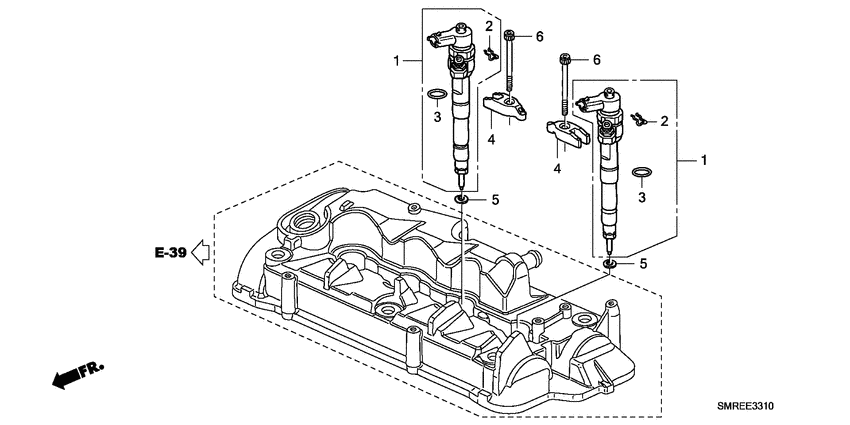

Injector (DIESEL) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 16450-RMA-E02 | Injector assy |
| 2 | 16451-RBD-E01 | Clip |
| 3 | 16452-RMA-E01 | O-ring - 16.8X1.8 |
| 4 | 16461-RBD-E01 | Arm - NOZZLE |
| 5 | 16472-RBD-E00 | Gasket - NOZZLE |
| 6 | 90019-RBD-E01 | Bolt - SPECIAL SOCKET |
| OEM | Part name | Category |
|---|---|---|
| 16450-RMA-E02 | Injector assy | Injector (DIESEL) |
| 16451-RBD-E01 | Clip | Injector (DIESEL) |
| 16452-RMA-E01 | O-ring - 16.8X1.8 | Injector (DIESEL) |
| 16461-RBD-E01 | Arm - NOZZLE | Injector (DIESEL) |
| 16472-RBD-E00 | Gasket - NOZZLE | Injector (DIESEL) |
| 90019-RBD-E01 | Bolt - SPECIAL SOCKET | Injector (DIESEL) |
