FK3

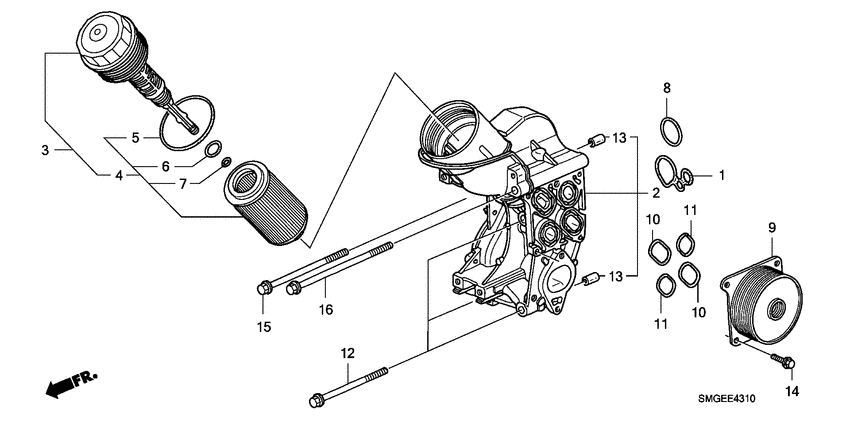

Oil filter case (DIESEL) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 15401-RBD-E01 | O-ring a - OIL FILTER CASE |
| 2 | 15405-RSR-E01 | Case kit - OIL FILTER |
| 3 | 15420-RSR-E01 | Filter assy - OIL |
| 4 | 15430-RSR-E01 | Element kit |
| 5 | 15432-RBD-E02 | O-ring a |
| 6 | 15433-RBD-E02 | O-ring b |
| 7 | 15434-RBD-E02 | O-ring c |
| 8 | 15461-RBD-E01 | O-ring b - OIL FILTER CASE |
| 9 | 15500-RBD-E01 | Cooler - ENGINE OIL |
| 10 | 15501-RBD-E01 | O-ring a - OIL COOLER |
| 11 | 15502-RBD-E01 | O-ring b - OIL COOLER |
| 12 | 90003-RSR-E00 | Bolt - FLANGE, 10X100 |
| OEM | Part name | Category |
|---|---|---|
| 15401-RBD-E01 | O-ring a - OIL FILTER CASE | Oil filter case (DIESEL) |
| 15405-RSR-E01 | Case kit - OIL FILTER | Oil filter case (DIESEL) |
| 15420-RSR-E01 | Filter assy - OIL | Oil filter case (DIESEL) |
| 15430-RSR-E01 | Element kit | Oil filter case (DIESEL) |
| 15432-RBD-E02 | O-ring a | Oil filter case (DIESEL) |
| 15433-RBD-E02 | O-ring b | Oil filter case (DIESEL) |
| 15434-RBD-E02 | O-ring c | Oil filter case (DIESEL) |
| 15461-RBD-E01 | O-ring b - OIL FILTER CASE | Oil filter case (DIESEL) |
| 15500-RBD-E01 | Cooler - ENGINE OIL | Oil filter case (DIESEL) |
| 15501-RBD-E01 | O-ring a - OIL COOLER | Oil filter case (DIESEL) |
| 15502-RBD-E01 | O-ring b - OIL COOLER | Oil filter case (DIESEL) |
| 90003-RSR-E00 | Bolt - FLANGE, 10X100 | Oil filter case (DIESEL) |
