FK3

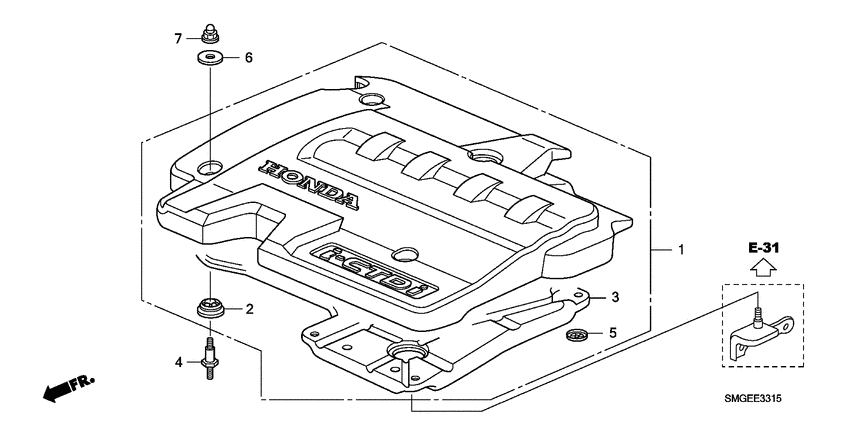

Engine cover (DIESEL) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 32121-RSR-E03 | Cover comp. - ENGINE |
| 2 | 32122-RBD-E00 | Grommet |
| 3 | 32124-RSR-E02 | Insulator |
| 4 | 90051-RBD-E01 | Bolt a - ENGINE COVER STUD |
| 5 | 90301-RBD-E00 | Nut - PUSH, 5MM |
| 6 | 90491-RBD-E00 | Washer - ENGINE COVER |
| OEM | Part name | Category |
|---|---|---|
| 32121-RSR-E03 | Cover comp. - ENGINE | Engine cover (DIESEL) |
| 32122-RBD-E00 | Grommet | Engine cover (DIESEL) |
| 32124-RSR-E02 | Insulator | Engine cover (DIESEL) |
| 90051-RBD-E01 | Bolt a - ENGINE COVER STUD | Engine cover (DIESEL) |
| 90301-RBD-E00 | Nut - PUSH, 5MM | Engine cover (DIESEL) |
| 90491-RBD-E00 | Washer - ENGINE COVER | Engine cover (DIESEL) |
