Search › Model › FK3
FK3

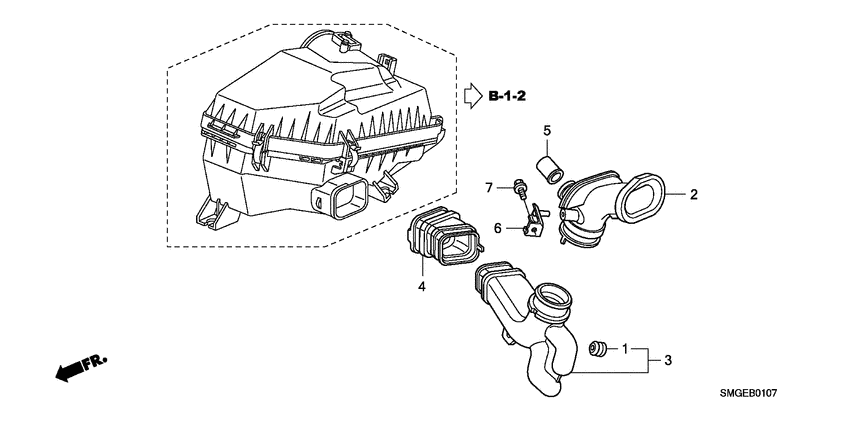

Air intake tube (DIESEL) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING |
| 2 | 17251-RSR-E00 | Tube a - AIR INTAKE |
| 3 | 17252-RSR-E00 | Tube comp. b - AIR INTAKE |
| 4 | 17253-RSR-E00 | Tube c - AIR INTAKE |
| 5 | 17255-RSR-E00 | Tube - SIDE BRANCH |
| 6 | 17256-RSR-E00 | Stay comp - AIR INTAKE |
| OEM | Part name | Category |
|---|---|---|
| 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Air intake tube (DIESEL) |
| 17251-RSR-E00 | Tube a - AIR INTAKE | Air intake tube (DIESEL) |
| 17252-RSR-E00 | Tube comp. b - AIR INTAKE | Air intake tube (DIESEL) |
| 17253-RSR-E00 | Tube c - AIR INTAKE | Air intake tube (DIESEL) |
| 17255-RSR-E00 | Tube - SIDE BRANCH | Air intake tube (DIESEL) |
| 17256-RSR-E00 | Stay comp - AIR INTAKE | Air intake tube (DIESEL) |
