Search › Model › FK10
FK10

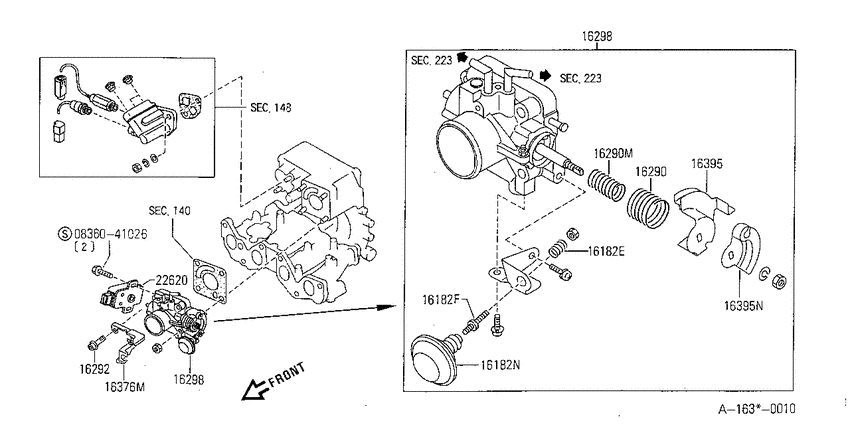

Throttle chamber (1991-02-01 ~ ; ALL) 14
| # | OEM | Part name |
|---|---|---|
| 16182 | 16145-V5260 | Spring |
| 16182 | 16183-V5260 | Screw-Dashpot |
| 16182 | 16183-N8410 | Screw-Dashpot |
| 16182 | 16182-17B11 | Idle Speed Control-Fi Pot |
| 16290 | 16160-03E12 | SPRING-THROTTLE RETURN |
| 16290 | 16160-02F02 | Spring-Throttle Return |
| 16292 | 16122-17B00 | Bolt-Chamber |
| 16298 | 16118-17B11 | Throttle Body |
| 16376 | 16165-17B00 | Bracket-Accelerator Cable |
| 16395 | 16134-17B00 | Lever-Throttle |
| 16395 | 16134-17B10 | Lever-Throttle |
| 22620 | 22620-07F10 | Throttle Position Switch |
| 836041026 | 08360-41026 | スクリユ-,マシン |
| 836041026 | 08360-41025 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08360-41025 | スクリユ-,マシン | Throttle chamber (1991-02-01 ~ ; ALL) |
| 08360-41026 | スクリユ-,マシン | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16118-17B11 | Throttle Body | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16122-17B00 | Bolt-Chamber | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16134-17B00 | Lever-Throttle | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16134-17B10 | Lever-Throttle | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16145-V5260 | Spring | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16160-02F02 | Spring-Throttle Return | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16160-03E12 | SPRING-THROTTLE RETURN | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16165-17B00 | Bracket-Accelerator Cable | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16182-17B11 | Idle Speed Control-Fi Pot | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16183-N8410 | Screw-Dashpot | Throttle chamber (1991-02-01 ~ ; ALL) |
| 16183-V5260 | Screw-Dashpot | Throttle chamber (1991-02-01 ~ ; ALL) |
| 22620-07F10 | Throttle Position Switch | Throttle chamber (1991-02-01 ~ ; ALL) |
