Search › Model › FK10
FK10

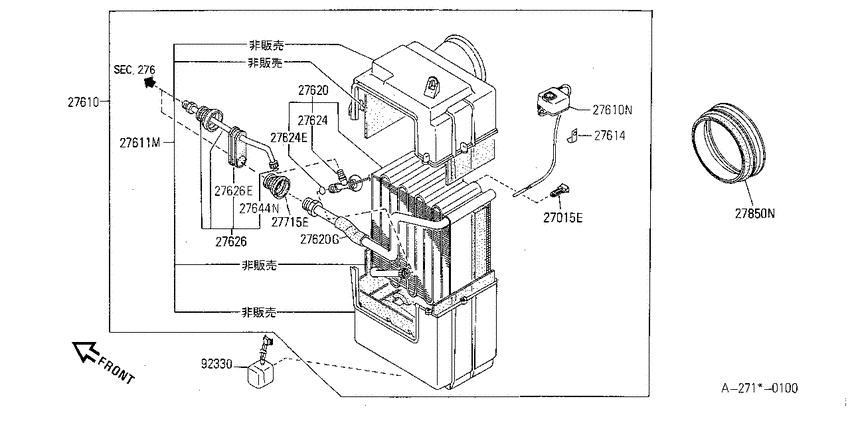

Cooling unit (1991-02-01 ~ ; ALL) 13
| # | OEM | Part name |
|---|---|---|
| 27015 | 27333-D0100 | Bracket-Thermo Switch |
| 27610 | 27275-37B00 | Cooling Unit Assy |
| 27610 | 27679-37B00 | Thermister |
| 27611 | 27285-35B00 | Case-Cooling Unit |
| 27614 | 27294-35B00 | Bracket-Thermo Switch |
| 27620 | 27280-37B00 | Evaporator Assy-Cooler |
| 27620 | 27288-35B00 | Insulator |
| 27626 | 92450-37B00 | Tube-Evaporator Inlet |
| 27626 | 27289-01G00 | Grommet |
| 27644 | 92470-N8200 | O Ring |
| 27715 | 92561-01B01 | Grommet-Tube |
| 27850 | 27272-20B00 | Duct-Heater |
| 92330 | 27620-35B00 | タイマ- アツセンブリ-,アクセル カツト |
| OEM | Part name | Category |
|---|---|---|
| 27272-20B00 | Duct-Heater | Cooling unit (1991-02-01 ~ ; ALL) |
| 27275-37B00 | Cooling Unit Assy | Cooling unit (1991-02-01 ~ ; ALL) |
| 27280-37B00 | Evaporator Assy-Cooler | Cooling unit (1991-02-01 ~ ; ALL) |
| 27285-35B00 | Case-Cooling Unit | Cooling unit (1991-02-01 ~ ; ALL) |
| 27288-35B00 | Insulator | Cooling unit (1991-02-01 ~ ; ALL) |
| 27289-01G00 | Grommet | Cooling unit (1991-02-01 ~ ; ALL) |
| 27294-35B00 | Bracket-Thermo Switch | Cooling unit (1991-02-01 ~ ; ALL) |
| 27333-D0100 | Bracket-Thermo Switch | Cooling unit (1991-02-01 ~ ; ALL) |
| 27620-35B00 | タイマ- アツセンブリ-,アクセル カツト | Cooling unit (1991-02-01 ~ ; ALL) |
| 27679-37B00 | Thermister | Cooling unit (1991-02-01 ~ ; ALL) |
| 92450-37B00 | Tube-Evaporator Inlet | Cooling unit (1991-02-01 ~ ; ALL) |
| 92470-N8200 | O Ring | Cooling unit (1991-02-01 ~ ; ALL) |
| 92561-01B01 | Grommet-Tube | Cooling unit (1991-02-01 ~ ; ALL) |
