FK1

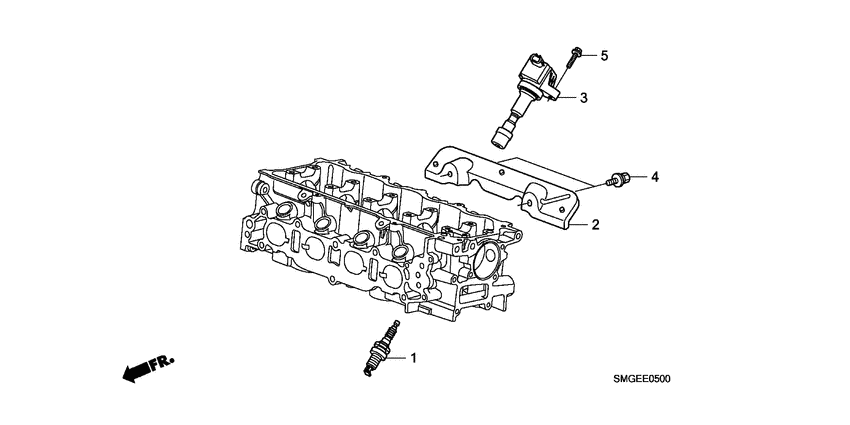

Plug hole coil (1.4L) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 12290-RB1-003 | Plug - SPARK (IZFR6K13) (NGK) |
| 1 | 12290-RB1-004 | Plug - SPARK (SKJ20DR-M13) (DENSO) |
| 2 | 30511-RB0-000 | Insulator - PLUG TOP COIL HEAT |
| 3 | 30520-RB0-003 | Coil assy - PLUG TOP |
| 4 | 90015-PWA-000 | Bolt-washer - 6X14 |
| OEM | Part name | Category |
|---|---|---|
| 12290-RB1-003 | Plug - SPARK (IZFR6K13) (NGK) | Plug hole coil (1.4L) |
| 12290-RB1-004 | Plug - SPARK (SKJ20DR-M13) (DENSO) | Plug hole coil (1.4L) |
| 30511-RB0-000 | Insulator - PLUG TOP COIL HEAT | Plug hole coil (1.4L) |
| 30520-RB0-003 | Coil assy - PLUG TOP | Plug hole coil (1.4L) |
| 90015-PWA-000 | Bolt-washer - 6X14 | Plug hole coil (1.4L) |
