FK1

Honda CIVIC · 2006 · 2,043 parts · 139 categories
FK1 ×

← Back to categories

2,043 items

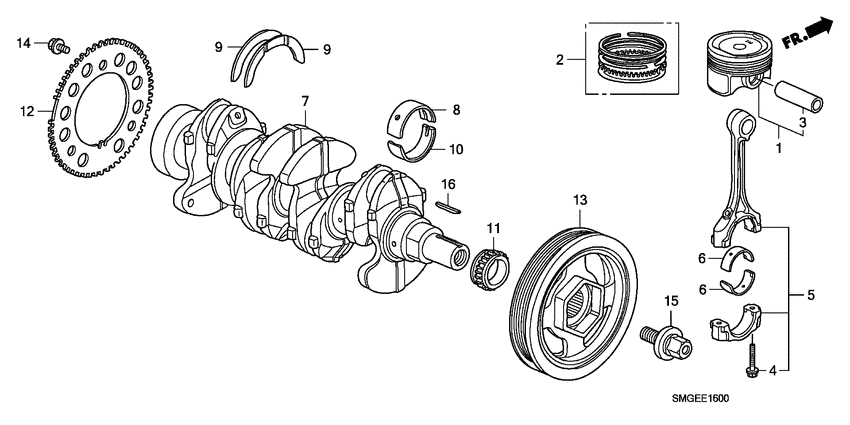

Crankshaft/piston (1.4L) 45
#OEMPart name
1 13010-RB0-000 Piston set - STD.
1 13020-RB6-Z00 Piston set - OS 0.25
2 13021-RB6-Z02 Ring set - PISTON (OS 0.25) (NIPPON)
2 13011-RB0-004 RING SET, PISTON (STD) (RIKEN)
2 13021-RB6-Z01 Ring set - PISTON (OS 0.25) (RIKEN)
3 13111-PWA-000 Pin - PISTON
4 13204-PWA-003 Bolt - CONNECTING ROD
5 13210-RB0-000 Rod comp - CONNECTING
6 13218-PWA-003 Bearing h - CONNECTING ROD (WHITE) (DAIDO)
6 13215-PWA-004 Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
6 13213-PWA-003 Bearing c - CONNECTING ROD (BROWN) (DAIDO)
6 13216-PWA-004 Bearing f - CONNECTING ROD (PINK) (TAIHO)
6 13214-PWA-003 Bearing d - CONNECTING ROD (GREEN) (DAIDO)
6 13217-PWA-004 Bearing g - CONNECTING ROD (RED) (TAIHO)
6 13215-PWA-003 Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
6 13212-PWA-004 Bearing b - CONNECTING ROD (BLACK) (TAIHO)
6 13218-PWA-004 Bearing h - CONNECTING ROD (WHITE) (TAIHO)
6 13216-PWA-003 Bearing f - CONNECTING ROD (PINK) (DAIDO)
6 13213-PWA-004 Bearing c - CONNECTING ROD (BROWN) (TAIHO)
6 13217-PWA-003 Bearing g - CONNECTING ROD (RED) (DAIDO)
6 13214-PWA-004 Bearing d - CONNECTING ROD (GREEN) (TAIHO)
6 13212-PWA-003 Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7 13310-RB0-000 Crankshaft comp.
8 13325-RB0-003 Bearing e - MAIN UPPER (YELLOW) (DAIDO)
8 13327-RB0-003 Bearing g - MAIN UPPER (RED) (DAIDO)
8 13322-RB0-003 Bearing b - MAIN UPPER (BLACK) (DAIDO)
8 13324-RB0-003 Bearing d - MAIN UPPER (GREEN) (DAIDO)
8 13326-RB0-003 Bearing f - MAIN UPPER (PINK) (DAIDO)
8 13321-RB0-003 BEARING A - MAIN UPPER (BLUE) (DAIDO)
8 13323-RB0-003 Bearing c - MAIN UPPER (BROWN) (DAIDO)
9 13331-PR3-004 Washer - THRUST (TAIHO)
9 13331-PR3-003 Washer - THRUST (DAIDO)
10 13346-RB0-003 Bearing f - MAIN LOWER (PINK) (DAIDO)
10 13341-RB0-003 BEARING A - MAIN LOWER (BLUE) (DAIDO)
10 13343-RB0-003 Bearing c - MAIN LOWER (BROWN) (DAIDO)
10 13345-RB0-003 Bearing e - MAIN LOWER (YELLOW) (DAIDO)
10 13347-RB0-003 Bearing g - MAIN LOWER (RED) (DAIDO)
10 13342-RB0-003 Bearing b - MAIN LOWER (BLACK) (DAIDO)
10 13344-RB0-003 Bearing d - MAIN LOWER (GREEN) (DAIDO)
11 13621-RB0-003 Sprocket - CAM CHAIN DRIVE
12 13623-RB0-000 Plate - CRANK PULSER
13 13810-RB0-003 Pulley comp - CRANKSHAFT
14 90013-RB0-003 Bolt - SPECIAL, 8X9
15 90017-PWA-G02 Bolt-washer - 14X36
16 90704-PH7-000 Key, SPECIAL
