FJ80

Toyota LAND-CRUISER · 1990 · 5,858 parts · 223 categories
FJ80 ×

← Back to categories

5,858 items

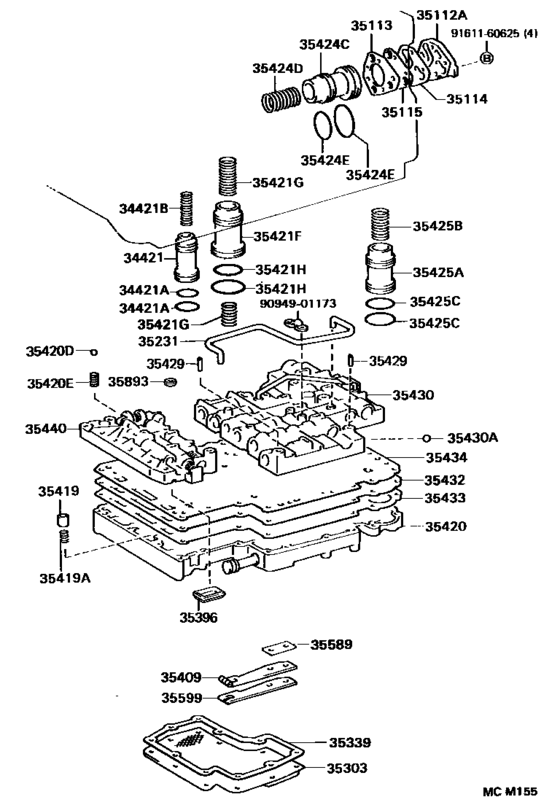

Valve Body & Oil Strainer (Atm) ([01.1990 - 08.1992] A440F (9001-9208)FJ80,HZJ80..4FC) 132
#OEMPart name
34421 34421-36010 Piston, Overdrive Brake Accumulator
34421 34421-37010 Piston, Overdrive Brake Accumulator
34421 90301-26003 Ring, O (For Overdrive Brake Accumulator Piston)
34421 90301-29003 Ring, O (For Overdrive Brake Accumulator Piston)
34421 90501-33004 Spring (For Overdrive Brake Accumulator Piston)
35112 35112-36010 Cover, Front Clutch Accumulator
35113 35113-36010 Gasket, Front Clutch Accumlator, No.2
35113 35113-60010 Gasket, Front Clutch Accumlator, No.2
35114 35114-36010 Gasket, Front Clutch Accumlator, No.1
35114 35114-60010 Gasket, Front Clutch Accumlator, No.1
35115 35115-36010 Plate, Front Clutch Accumulator
35212 35212-36010 Valve, Lock Up Relay
35212 90501-11024 Spring, Compression (For Lock Up Relay Valve)
35213 35213-36010 Valve, Lock Up Relay Control
35215 90250-03051 Pin, Straight (For Lock Up Signal Valve)
35215 90250-04054 Pin, Straight (For Lock Up Relay Valve Sleeve)
35215 35215-36010 Sleeve, Lock Up Relay Valve, No.1
35216 35216-36010 Sleeve, Lock Up Relay Valve, No.2
35222 35222-60010 Plate, Lock Up Relay Valve Body
35223 35223-36010 Gasket, Lock Up Relay Valve Body
35231 35231-36010 Tube, Lock Up Signal Valve Apply
35285 35285-60010 Plate, Solenoid Lock
35303 35303-60010 Strainer Sub-Assy, Oil
35339 35339-36010 Gasket, Oil Strainer
35339 35339-60020 Gasket, Oil Strainer
35396 35396-36010 Strainer, Throttle Oil
35409 35409-60010 Spring Sub-Assy, Manual Detent
35415 35415-36010 Valve, Primary Regulator
35415 90501-19002 Spring, Compression (For Primary Regulator Valve)
35415 90201-06566 Washer (For Primary Regulator Valve)
35415 90523-06004 Ring, E (For Primary Regulator Valve)
35416 35416-36010 Plunger, Primary Regulator Valve, No.1
35417 35417-36010 Sleeve, Primary Regulator Valve
35418 35418-36010 Valve, Manual
35419 35419-36010 Valve, Check, No.1
35419 90501-10098 Spring, Compression (For Check Valve)
35420 35420-60031 Body Assy, Lower Valve
35420 35420-60050 Body Assy, Lower Valve
35420 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35420 90080-36191 Ball, Check Valve
35420 90360-09001 Ball (For Manual Transmission Oil Pump)
35420 90503-04003 Spring (For Lower Valve Body)
35421 35402-60020 Piston, Accumulator, No.2
35421 35423-36010 Piston, Accumulator, No.2
35421 90501-22025 Spring, Compression (For Accumulator Piston No.2)
35421 90501-38004 Spring, Compression (For Accumulator Piston No.2)
35421 90501-38005 Spring, Compression (For Accumulator Piston No.2)
35421 90501-40008 Spring, Compression (For Accumulator Piston No.2)
35421 90301-37004 Ring (For Accumulator Piston No.2)
35424 35424-36010 Piston, C-1 Accumulator
35424 90501-27008 Spring, Compression (For C-1 Accumulator Piston)
35424 90301-24002 Ring, O (For C-1 Accumulator Piston)
35425 35405-60040 Piston, C-2 Accumulator
35425 35425-36010 Piston, C-2 Accumulator
35425 90501-30016 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-35009 Spring, Compression (For C-2 Accumulator Piston)
35425 90301-28003 Ring, O (For C-1 Accumulator Piston)
35425 90301-33006 Ring, O (For C-2 Accumulator Piston)
35425 35425-22010 Seat, Pressure Regulator Valve Sleeve
35429 35429-36010 Tube, Line Pressure
35430 35430-60120 Body Assy, Rear Upper Valve
35430 35430-60130 Body Assy, Rear Upper Valve
35432 35432-60011 Plate, Valve Body, No.1
35432 35432-60070 Plate, Valve Body, No.1
35432 35432-60071 Plate, Valve Body, No.1
35432 35432-60080 Plate, Valve Body, No.1
35433 35433-36010 Gasket, Valve Body, No.1
35433 35433-60010 Gasket, Valve Body, No.1
35434 35434-36010 Gasket, Valve Body, No.2
35434 35434-60010 Gasket, Valve Body, No.2
35435 35435-36011 Gasket, Valve Body Plate, No.3
35436 35436-36011 Gasket, Valve Body Plate, No.4
35437 35437-36011 Plate, Valve Body Cover
35439 35439-60010 Gasket, Valve Body Plate, No.5
35440 35440-60011 Body Assy, Front Upper Valve
35441 35441-60010 Strainer, Solenoid Oil
35445 35445-36010 Valve, Low Modulator
35445 90501-08095 Spring, Compression (For Low Modulator Valve)
35445 90282-03007 Key, Straight (For Reverse Control Valve)
35445 90339-04009 Plug (For Lock Up Signal Valve)
35454 35454-36010 Valve, Low Coast Shift
35454 90282-03006 Key, Straight (For Reverse Control Valve)
35454 90339-06004 Plug (For Low Coast Shift Valve)
35455 35455-36010 Plug, 1-2 Shift Valve Low
35455 90339-06009 Plug (For 1-2 Shift Valve Low Plug)
35455 90250-03050 Pin, Straight (For 1-2 Shift Valve Low Plug)
35463 35463-36010 Valve, 1-2 Relay
35463 90339-04019 Plug (For 1-2 Relay Valve)
35463 90501-06043 Spring, Compression (For 1-2 Relay Valve)
35464 35464-36011 Valve, 1-2 Shift
35464 90501-07040 Spring, Compression (For 1-2 Shift Valve)
35466 35466-60010 Valve, 2Nd Lock
35466 90501-08062 Spring, Compression (For 2Nd Lock Valve)
35466 90282-03005 Key, Straight(For Transfer Direct Clutch Modulator Valve)
35466 90339-04017 Plug (For Transfer Direct Clutch Modulator Valve)
35472 35472-36011 Cover, Valve Body, No.2
35474 35474-60010 Cover, Valve Body, No.4
35489 35489-36010 Valve, 3-2 Kick Down Orifice Control
35489 90501-08075 Spring (For 3-2 Kick Down Orifice Control Valve)
35491 35491-36010 Valve, Accumulator Control, No.1
35491 90501-12083 Spring, Compression (For Accumulator Control Valve No.1)
35491 90339-04016 Plug (For Accumulator Control Valve No.1)
35589 35589-36010 Spacer, Manual Detent Spring
35599 35599-60010 Cover, Manual Detent Spring
35847 35847-36010 Tube, Transmission Lube Apply
35893 35893-36010 Gasket, Center Support Apply
9010505002 90105-05002 New Genuine Part
9010505007 90105-05007 New Genuine Part
9010505015 90105-05015 New Genuine Part
9010505016 90105-05016 New Genuine Part
9010505017 90105-05017 New Genuine Part
9010505018 90105-05018 New Genuine Part
9010505023 90105-05023 New Genuine Part
9010505025 90105-05025 New Genuine Part
9010505027 90105-05027 New Genuine Part
9010505028 90105-05028 New Genuine Part
9010505029 90105-05029 New Genuine Part
9010505030 90105-05030 New Genuine Part
9010506025 90105-06025 New Genuine Part
9010506025 91511-C0635 BOLT, FLANGE
9010506058 90105-06058 New Genuine Part
9010506060 90105-06060 New Genuine Part
9010506061 90105-06061 New Genuine Part
9010506064 90105-06064 New Genuine Part
9010506069 90105-06069 Bolt (For Governor Body)
9010506070 90105-06070 New Genuine Part
9010506071 90105-06071 New Genuine Part
9010506072 90105-06072 New Genuine Part
9010506073 90105-06073 New Genuine Part
9094901173 90949-01173 New Genuine Part
9161160625 91611-60625 Bolt, W/washer (For Parking Cove & Case)
9161160625 91611-B0625 Bolt (For Automatic Transmission Oil Pan)
