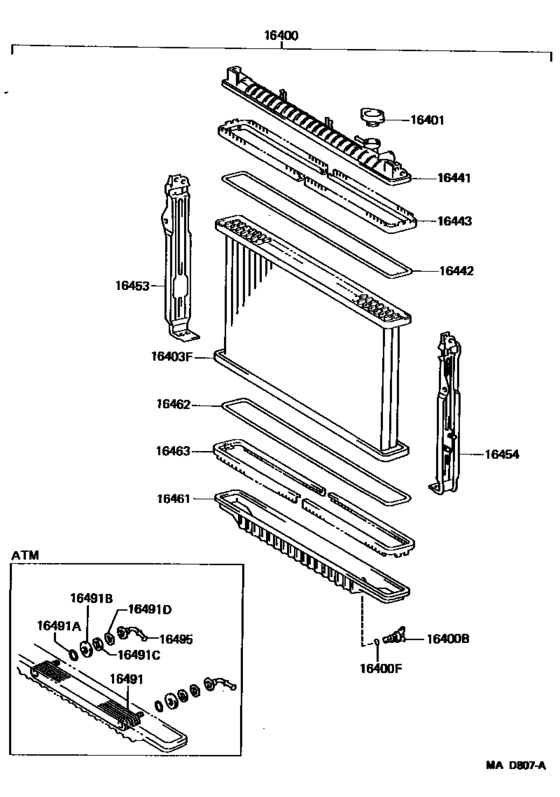

| 16400-61240 |
Radiator Assy |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16401-54750 |
Radiator Cap |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16401-71010 |
Cap Sub-Assy(For Water Outlet) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16403-17060 |
Core Sub-Assy, Radiator |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16417-15210 |
Plug, Radiator Drain Cock |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16418-24200 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16441-61160 |
Tank, Radiator, Upper |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16442-61160 |
Ring, O(For Radiator Upper Tank) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16443-61160 |
Plate, Radiator Tank, Lock, Upper |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16453-61160 |
Plate, Radiator Side |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16453-66030 |
Plate, Radiator Side |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16454-61160 |
Plate, Radiator Side |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16454-66030 |
Plate, Radiator Side |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16461-61170 |
Tank, Radiator, Lower |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16491-61170 |
Cooler, Oil(For Atm) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16492-61170 |
Ring, O(For Atm Oil Cooler) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16493-61170 |
Washer, Plate(For Atm Oil Cooler) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16494-61170 |
Washer, Spring(For Atm Oil Cooler) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16495-17030 |
Nut, Flare(For Atm Oil Cooler) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16495-61170 |
Nut, Flare(For Atm Oil Cooler) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16496-15580 |
Nut(For Atm Oil Cooler) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16496-61170 |
Nut(For Atm Oil Cooler) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
| 16497-17030 |
Nut, Flare(For Atm Oil Cooler) |
Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)3F#) |
