| 04317-60030 |
Gasket Kit, Clutch Under Cover |

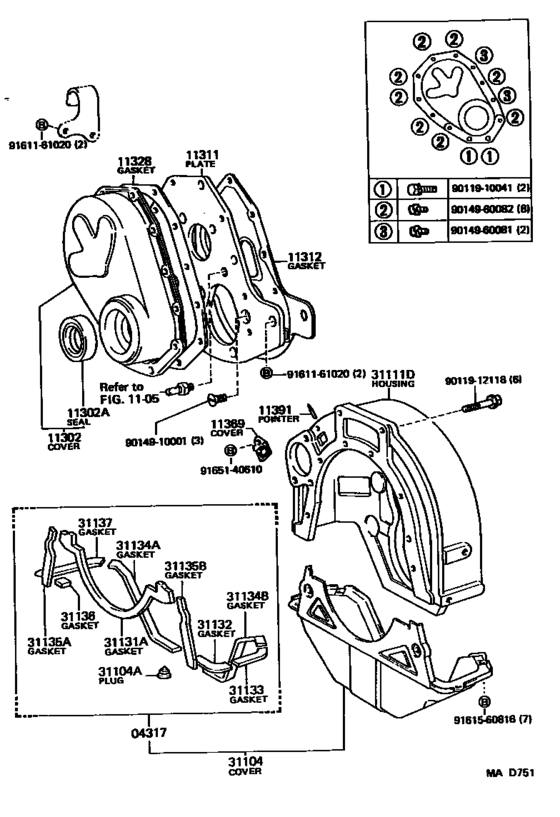

Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 11302-61031 |
Cover Sub-Assy, Timing Chain Or Belt |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 11311-61020 |
Plate, Front End |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 11312-61021 |
Gasket, Front End Plate |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 11328-61010 |
Gasket, Timing Gear Or Chain Cover |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 11369-60011 |
Cover, Flywheel Housing Front |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 11391-60010 |
Pointer, Timing |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31104-60030 |
Cover, Flywheel Housing Under |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31111-60220 |
Housing, Clutch |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31131-60010 |
Gasket, Clutch Under Cover, No.1 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31132-60020 |
Gasket, Clutch Under Cover, No.2 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31133-60020 |
Gasket, Clutch Under Cover, No.3 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31134-60020 |
Gasket, Clutch Under Cover, No.4 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31134-60030 |
Gasket, Clutch Under Cover, No.4 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31135-60021 |
Gasket, Clutch Under Cover, No.5 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31135-60031 |
Gasket, Clutch Under Cover, No.5 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31136-60010 |
Gasket, Clutch Under Cover, No.6 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 31137-60010 |
Gasket, Clutch Under Cover, No.7 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 90119-10041 |
New Genuine Part |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 90119-12118 |
BOLT |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 90149-10001 |
New Genuine Part |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 90149-60081 |
New Genuine Part |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 90149-60082 |
SCREW |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 90311-45008 |
Seal, Oil(For Timing Chain Or Belt Cover) |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 90950-01200 |
Plug, Hole(For Clutch Under Cover) |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 90950-01580 |
Plug, Hole(For Clutch Under Cover) |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 91611-60814 |
Bolt |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 91611-61020 |
Bolt(For Transaxle & Engine Setting) |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 91612-B1020 |
Bolt (For Transfer Case)Cover No.2 |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 91615-60816 |
Bolt(For Oil Receiver Pipe) |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
| 91651-40610 |
RIVET |
Timing Gear Cover & Rear End Plate ([01.1990 - 08.1992] (9001-9208)3F) |
