FJ70

Toyota LAND-CRUISER · 1984 · 5,845 parts · 233 categories
FJ70 ×

← Back to categories

5,845 items

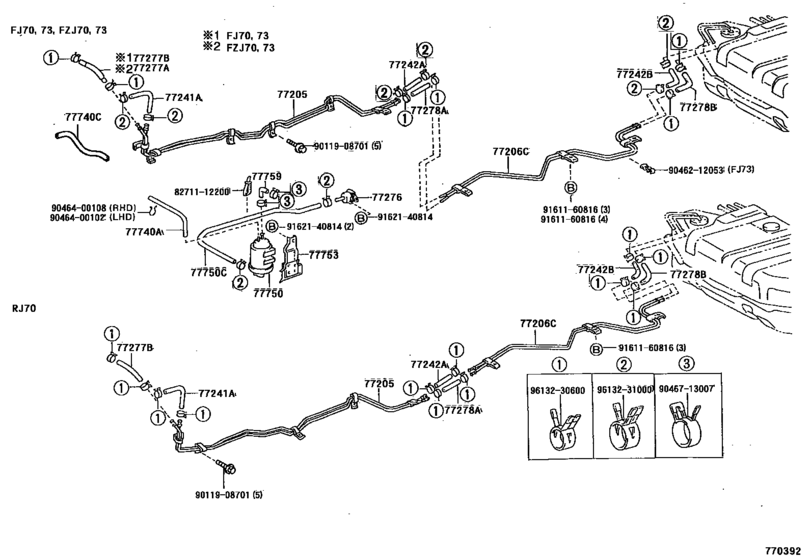

Fuel Tank & Tube ([01.1990 - 08.1999] FUEL TUBE (9001-9908)FJ70,73,FZJ70,73,RJ70..GEN..CBR) 33
#OEMPart name
77205 77205-60570 Tube Sub-Assy, Fuel Main
77206 77205-60201 Tube Sub-Assy, Fuel Main, No.2
77206 77205-60202 Tube Sub-Assy, Fuel Main, No.2
77241 77259-60100 Hose, Fuel, No.1 (For Main Tube, No.1)
77242 95333-08020 Hose, Lpg Injector
77242 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77242 90447-14071 Hose, Fuel, No.2 (For Main Tube, No.2)
77276 77276-60020 Protector, Fuel Hose
77277 95333-06040 Hose
77278 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77278 95337-06020 Hose, Differential Pressure Control
77278 90447-12082 Hose, Fuel, No.2 (For Return Tube, No.2)
77278 90447-12058 Hose, Fuel
77278 90447-12122 Hose, Fuel, No.1(For Return Tube, No.1)
77740 90999-92003 Hose, Breather (For Transfer Case)
77750 77704-60060 Canister Assy, Charcoal
77750 90445-12116 Hose, Fuel, No.3(For Charcoal Canister)
77753 77751-60070 Bracket, Charcoal Canister, No.3
77759 77759-60030 Hose, Charcoal Canister
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9011908701 90119-08701 BOLT
9046212053 90462-12053 New Genuine Part
9046400102 90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable)
9046400108 90464-00108 New Genuine Part
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9162140814 91621-40814 Bolt
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613231000 96132-31000 Clip(For Ventilation Tube)
9613231000 96132-41500 Clip(For Ventilation Tube)
Source
Public OEM parts-catalog data
Variants
2 / 38
Category
233
Collected
2026-08-02
