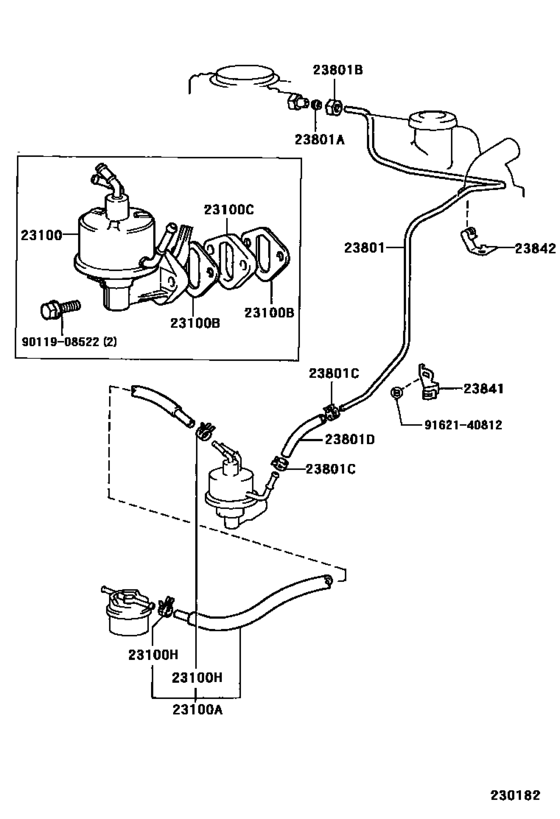

| 23100-61101 |
Pump Assy, Fuel |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 23811-61060 |
Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1 |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 23841-61030 |
Clamp, Fuel Pipe(Hose), No.1 |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 23842-61020 |
Clamp, Fuel Pipe(Hose), No.2 |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 77260-60081 |
Hose, Fuel |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 77260-60082 |
Hose, Fuel |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 90119-08522 |
BOLT |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 90402-13041 |
Nut, Union(For Fuel Pipe) |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 90923-05019 |
Gasket, Fuel Pump |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 90923-06009 |
Insulator, Fuel Pump |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 91621-40812 |
BOLT |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 95333-08020 |
Hose, Lpg Injector |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 95337-08020 |
Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1) |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 96132-30800 |
Clip, No.3(For Idle-Up Hose) |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 96132-31000 |
Clip(For Ventilation Tube) |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 96132-41500 |
Clip(For Ventilation Tube) |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 96132-51300 |
Clip(For Ventilation Hose No.2) |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
| 96395-71400 |
Olive(For Fuel Pipe) |
Fuel Pump & Pipe ([01.1990 - 08.1992] (9001-9208)3F) |
