Search › Model › FJ70

FJ70

Toyota LAND-CRUISER · 1984 · 5,845 parts · 233 categories

5,845 items

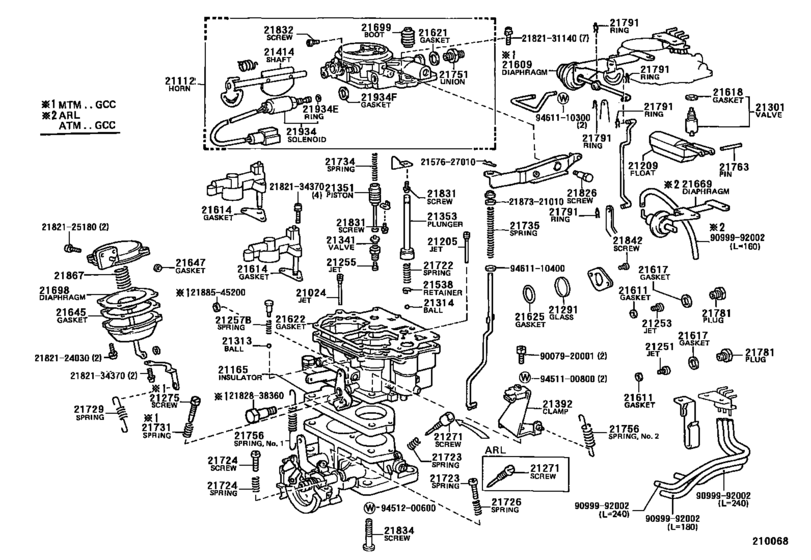

Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC) 69

#	OEM	Part name
21024	21024-61010	Jet Sub-Assy, 2Nd
21112	21112-61251	Horn, Air
21165	21165-61310	Insulator
21205	21024-61060	Jet Sub-Assy, Slow
21209	21209-33011	Float Sub-Assy
21251	90999-41136	Jet, 1St Main
21253	90999-42220	Jet, 2Nd Main
21255	90999-43110	Jet, Power
21257	21864-26020	Spring(For Pump Jet)
21271	21271-61110	Screw, Idle Adjusting
21291	21291-34320	Glass, Level Gage
21301	21301-61050	Valve Sub-Assy, Needle
21313	21313-11020	Ball, Steel, No.1(For Discharge Weight)
21314	21314-11020	Ball, Steel(For Auxiliary Acceleration Pump)
21341	21341-13080	Valve, Power
21351	21351-34030	Piston, Power
21353	21353-61020	Plunger, Pump
21392	21392-61190	Clamp, Choke Wire
21414	21054-61020	Shaft, Choke
21538	21538-31010	Retainer, Ball Check
21611	21611-22010	Gasket, Main Jet
21614	21614-61310	Gasket, Venturi
21617	21617-30010	Gasket, Main Passage Plug
21618	21618-14010	Gasket, Needle Valve Seat
21621	21633-24030	Gasket, Carburetor To Carburetor Hose Union Bolt
21622	21622-61310	Gasket, Air Horn
21625	21655-60200	Gasket, Level Gage
21645	21645-33080	Gasket, Diaphragm, Cap
21645	21645-41010	Gasket, Diaphragm, Cap
21647	21649-33080	Gasket, Diaphragm Housing Cap
21669	21669-61011	Diaphragm Sub-Assy
21698	21669-61100	Diaphragm
21699	21699-61010	Boot(For Pump Plunger)
21722	21722-60200	Spring, Pump Damping
21723	21723-21030	Spring, Idle Adjusting
21726	21723-11041	Spring, Idle Adjusting
21729	21729-61190	Spring, 1St Throttle Back
21734	21734-13530	Spring, Power Piston
21735	21735-61190	Spring, Pump Arm
21751	21894-61020	Union, Nipple
21756	21756-61010	Spring, Back(For Throttle Shaft)
21756	21756-61190	Spring, Back(For Throttle Shaft)
21763	21763-38010	Pin, Float Lever
21781	21781-15230	Plug, Main Passage(For Carburetor Jet)
21791	21791-60010	Ring, Snap, No.1(For Carburetor Link)
21791	21791-13010	Ring, Snap, No.1(For Carburetor Link)
21826	21826-24470	Screw, Pump Arm Set
21831	21821-15060	Screw, 2Nd Throttle Valve Set
21832	21832-33010	Screw(For Choke Lever Adapter Set)
21834	21834-31140	Screw, Set, No.2(For Carburetor Body Set)
21842	21842-33010	Screw, Power Piston Stop
21934	21062-61251	Solenoid, Throttle Valve
21934	21062-61060	Solenoid, Throttle Valve
21934	21655-44101	Ring, O(For Lifter Rod)
21934	21649-38010	Gasket
2157627010	21576-27010	Clip, Pump Strainer
2182124030	21821-24030	Screw(For Vacuum Lock Diaphragm Ring Set)
2182125180	21821-25180	Screw, Set, No.2(For Carburetor Body Set)
2182131140	21821-31140	Screw(For 2Nd Regulator Cover Set)
2182134370	21821-34370	Screw, 2nd Throttle Valve Set
2182838360	21828-38360	Screw, 1St Idle Set
2187321010	21873-21010	Washer, Plunger
2188545200	21885-45200	Washer, Idel Adjust
9007920001	90079-20001	New Genuine Part
9099992002	90999-92002	Air Hose (300 mm)
9451100800	94511-00800	WASHERSPRING
9451200600	94512-00600	Washer, Seal(For Head Cover Set)
9461110300	94611-10300	New Genuine Part
9461110400	94611-10400	New Genuine Part

OEM	Part name	Category
21024-61010	Jet Sub-Assy, 2Nd	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21024-61060	Jet Sub-Assy, Slow	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21054-61020	Shaft, Choke	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21062-61060	Solenoid, Throttle Valve	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21062-61251	Solenoid, Throttle Valve	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21112-61251	Horn, Air	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21165-61310	Insulator	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21209-33011	Float Sub-Assy	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21271-61110	Screw, Idle Adjusting	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21291-34320	Glass, Level Gage	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21301-61050	Valve Sub-Assy, Needle	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21313-11020	Ball, Steel, No.1(For Discharge Weight)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21314-11020	Ball, Steel(For Auxiliary Acceleration Pump)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21341-13080	Valve, Power	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21351-34030	Piston, Power	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21353-61020	Plunger, Pump	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21392-61190	Clamp, Choke Wire	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21538-31010	Retainer, Ball Check	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21576-27010	Clip, Pump Strainer	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21611-22010	Gasket, Main Jet	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21614-61310	Gasket, Venturi	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21617-30010	Gasket, Main Passage Plug	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21618-14010	Gasket, Needle Valve Seat	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21622-61310	Gasket, Air Horn	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21633-24030	Gasket, Carburetor To Carburetor Hose Union Bolt	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21645-33080	Gasket, Diaphragm, Cap	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21645-41010	Gasket, Diaphragm, Cap	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21649-33080	Gasket, Diaphragm Housing Cap	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21649-38010	Gasket	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21655-44101	Ring, O(For Lifter Rod)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21655-60200	Gasket, Level Gage	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21669-61011	Diaphragm Sub-Assy	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21669-61100	Diaphragm	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21699-61010	Boot(For Pump Plunger)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21722-60200	Spring, Pump Damping	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21723-11041	Spring, Idle Adjusting	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21723-21030	Spring, Idle Adjusting	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21729-61190	Spring, 1St Throttle Back	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21734-13530	Spring, Power Piston	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21735-61190	Spring, Pump Arm	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21756-61010	Spring, Back(For Throttle Shaft)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21756-61190	Spring, Back(For Throttle Shaft)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21763-38010	Pin, Float Lever	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21781-15230	Plug, Main Passage(For Carburetor Jet)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21791-13010	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21791-60010	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21821-15060	Screw, 2Nd Throttle Valve Set	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21821-24030	Screw(For Vacuum Lock Diaphragm Ring Set)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21821-25180	Screw, Set, No.2(For Carburetor Body Set)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21821-31140	Screw(For 2Nd Regulator Cover Set)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21821-34370	Screw, 2nd Throttle Valve Set	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21826-24470	Screw, Pump Arm Set	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21828-38360	Screw, 1St Idle Set	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21832-33010	Screw(For Choke Lever Adapter Set)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21834-31140	Screw, Set, No.2(For Carburetor Body Set)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21842-33010	Screw, Power Piston Stop	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21864-26020	Spring(For Pump Jet)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21873-21010	Washer, Plunger	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21885-45200	Washer, Idel Adjust	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
21894-61020	Union, Nipple	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
90079-20001	New Genuine Part	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
90999-41136	Jet, 1St Main	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
90999-42220	Jet, 2Nd Main	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
90999-43110	Jet, Power	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
90999-92002	Air Hose (300 mm)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
94511-00800	WASHERSPRING	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
94512-00600	Washer, Seal(For Head Cover Set)	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
94611-10300	New Genuine Part	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)
94611-10400	New Genuine Part	Carburetor ([01.1990 - 08.1992] (9001-9208)3F..ARL,GCC)

Source: Public OEM parts-catalog data
Variants: 2 / 38
Category: 233
Collected: 2026-08-02
