Search › Model › FJ62

FJ62

Toyota LAND-CRUISER · 1984 · 6,093 parts · 264 categories

6,093 items

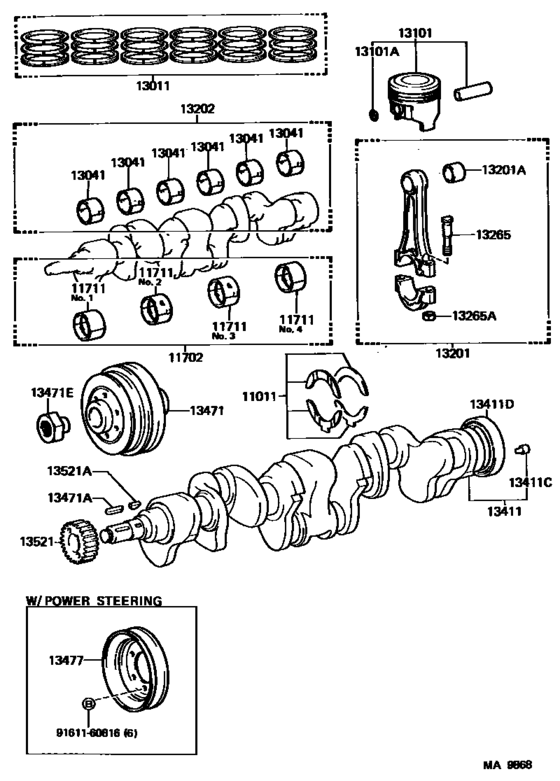

Crankshaft & Piston ([08.1988 - ] (8808- )3FE) 85

#	OEM	Part name
11011	11011-61010	Washer Set, Crankshaft Thrust
11011	11011-61020	Washer Set, Crankshaft Thrust
11011	11012-61010	Washer Set, Crankshaft Thrust
11011	11012-61020	Washer Set, Crankshaft Thrust
11011	11013-61010	Washer Set, Crankshaft Thrust
11011	11013-61020	Washer Set, Crankshaft Thrust
11702	11704-61010	Bearing Set, Crankshaft
11702	11704-61020	Bearing Set, Crankshaft
11702	11705-61010	Bearing Set, Crankshaft
11702	11705-61020	Bearing Set, Crankshaft
11711	11071-61010-01	Bearing, Crankshaft
11711	11071-61020-01	Bearing, Crankshaft
11711	11071-61010-02	Bearing, Crankshaft
11711	11071-61020-02	Bearing, Crankshaft
11711	11071-61010-03	Bearing, Crankshaft
11711	11071-61020-03	Bearing, Crankshaft
11711	11071-61010-04	Bearing, Crankshaft
11711	11071-61020-04	Bearing, Crankshaft
11711	11071-61010-05	Bearing, Crankshaft
11711	11071-61020-05	Bearing, Crankshaft
11711	11072-61010-01	Bearing, Crankshaft
11711	11072-61020-01	Bearing, Crankshaft
11711	11072-61010-02	Bearing, Crankshaft
11711	11072-61020-02	Bearing, Crankshaft
11711	11072-61010-03	Bearing, Crankshaft
11711	11072-61020-03	Bearing, Crankshaft
11711	11072-61010-04	Bearing, Crankshaft
11711	11072-61020-04	Bearing, Crankshaft
11711	11072-61010-05	Bearing, Crankshaft
11711	11072-61020-05	Bearing, Crankshaft
11711	11073-61010-01	Bearing, Crankshaft
11711	11073-61020-01	Bearing, Crankshaft
11711	11073-61010-02	Bearing, Crankshaft
11711	11073-61020-02	Bearing, Crankshaft
11711	11073-61010-03	Bearing, Crankshaft
11711	11073-61020-03	Bearing, Crankshaft
11711	11073-61010-04	Bearing, Crankshaft
11711	11073-61020-04	Bearing, Crankshaft
11711	11073-61010-05	Bearing, Crankshaft
11711	11073-61020-05	Bearing, Crankshaft
11711	11701-61010-01	Bearing, Crankshaft
11711	11701-61020-01	Bearing, Crankshaft
11711	11701-61010-02	Bearing, Crankshaft
11711	11701-61020-02	Bearing, Crankshaft
11711	11701-61010-03	Bearing, Crankshaft
11711	11701-61020-03	Bearing, Crankshaft
11711	11701-61010-04	Bearing, Crankshaft
11711	11701-61020-04	Bearing, Crankshaft
11711	11701-61010-05	Bearing, Crankshaft
11711	11701-61020-05	Bearing, Crankshaft
13011	13011-61062	Ring Set, Piston
13011	13013-61062	Ring Set, Piston
13011	13015-61062	Ring Set, Piston
13011	13017-61062	Ring Set, Piston
13041	13041-35020-0A	Bearing, Connecting Rod
13041	13041-35020-A0	Bearing, Connecting Rod
13041	13041-35020-0B	Bearing, Connecting Rod
13041	13041-35020-B0	Bearing, Connecting Rod
13041	13041-35020-0C	Bearing, Connecting Rod
13041	13041-35020-C0	Bearing, Connecting Rod
13101	13101-61032-01	Piston Sub-Assy, W/pin
13101	13101-61032-02	Piston Sub-Assy, W/pin
13101	13101-61032-03	Piston Sub-Assy, W/pin
13101	13103-61032	Piston Sub-Assy, W/pin
13101	13105-61032	Piston Sub-Assy, W/pin
13101	13107-61032	Piston Sub-Assy, W/pin
13101	90521-25002	Ring, Hole Snap(For Piston Pin)
13201	13201-38011	Rod Sub-Assy, Connecting
13201	13201-35020	Rod Sub-Assy, Connecting
13201	90999-73072	Bush(For Connecting Rod Small End)
13202	13204-61020	Bearing Set, Connecting Rod
13265	13265-39025	Bolt, Connecting Rod
13265	90170-10198	Nut, Hexagon(For Connecting Rod Bolt)
13411	13401-61021	Crankshaft
13411	13401-61023	Crankshaft
13411	90241-10017	Pin, Straight(For Crankshaft)
13411	90311-99005	Seal, Oil(For Crankshaft)
13471	13470-61030	Pulley, Crankshaft
13471	90281-07004	Key, Crankshaft(For Crankshaft Pulley Set)
13471	90179-22010	Nut(For Crankshaft Pulley)
13477	13471-61010	Pulley, Crankshaft, No.2
13521	13521-61010	Gear Or Sprocket, Crankshaft Timing
13521	90280-05010	Key(For Oil Pump Drive Spline)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
11011-61010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11011-61020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11012-61010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11012-61020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11013-61010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11013-61020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61010-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61010-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61010-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61010-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61010-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61020-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61020-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61020-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61020-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11071-61020-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61010-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61010-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61010-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61010-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61010-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61020-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61020-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61020-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61020-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11072-61020-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61010-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61010-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61010-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61010-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61010-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61020-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61020-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61020-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61020-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11073-61020-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61010-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61010-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61010-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61010-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61010-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61020-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61020-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61020-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61020-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11701-61020-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11704-61010	Bearing Set, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11704-61020	Bearing Set, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11705-61010	Bearing Set, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
11705-61020	Bearing Set, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13011-61062	Ring Set, Piston	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13013-61062	Ring Set, Piston	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13015-61062	Ring Set, Piston	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13017-61062	Ring Set, Piston	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13041-35020-0A	Bearing, Connecting Rod	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13041-35020-0B	Bearing, Connecting Rod	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13041-35020-0C	Bearing, Connecting Rod	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13041-35020-A0	Bearing, Connecting Rod	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13041-35020-B0	Bearing, Connecting Rod	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13041-35020-C0	Bearing, Connecting Rod	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13101-61032-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13101-61032-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13101-61032-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13103-61032	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13105-61032	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13107-61032	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13201-35020	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13201-38011	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13204-61020	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13265-39025	Bolt, Connecting Rod	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13401-61021	Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13401-61023	Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13470-61030	Pulley, Crankshaft	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13471-61010	Pulley, Crankshaft, No.2	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
13521-61010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
90170-10198	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
90179-22010	Nut(For Crankshaft Pulley)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
90241-10017	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
90281-07004	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
90311-99005	Seal, Oil(For Crankshaft)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
90521-25002	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
90999-73072	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)
91611-B0816	Bolt	Crankshaft & Piston ([08.1988 - ] (8808- )3FE)

Source: Public OEM parts-catalog data
Variants: 2 / 94
Category: 264
Collected: 2026-08-02
