Search › Model › FJ61

FJ61

Toyota LAND-CRUISER · 1982 · 4,542 parts · 207 categories

4,542 items

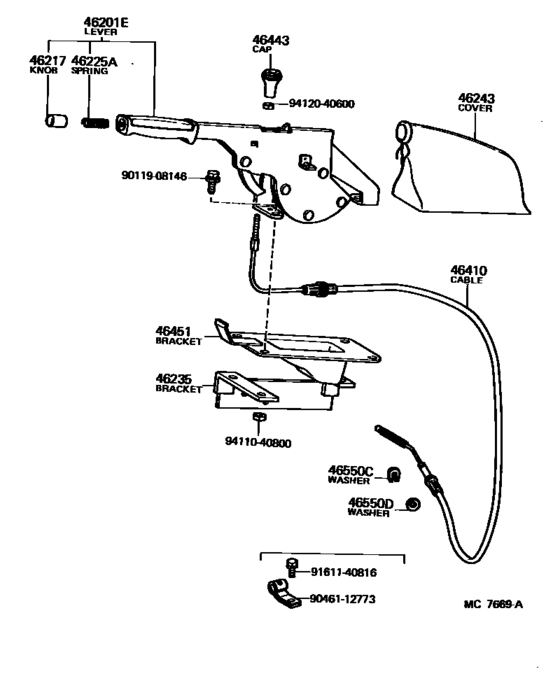

Parking Brake & Cable ([11.1980 - ] (8011- )IV4) 42

#	OEM	Part name
46201	46210-60040-01	Lever Sub-Assy, Parking Brake
46201	46210-60041-C0	Lever Assy, Parking Brake
46217	46217-10020-01	Knob, Parking Brake Release Rod
46217	46217-10020-11	Knob, Parking Brake Release Rod (Black)
46225	90501-10745	Spring, Compression(For Parking Brake Pawl Rod)
46235	46235-60010	Bracket, Parking Brake Lever Support
46243	46243-60030-01	Cover, Parking Brake Lever
46410	46410-60110	Cable Assy, Parking Brake, No.1
46443	46443-12020	Cap, Cable Adjusting
46451	46451-60040	Bracket, Cable Support
46501	46501-60030	Drum Sub-Assy, Parking Brake
46501	46501-60031	Drum Sub-Assy, Parking Brake
46501	90114-11124	Bolt (For Transfer Output Shaft Companion Flange)
46506	46506-35011	Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center
46520	46503-60020	Plate Sub-Assy, Parking Brake
46527	46527-35010	Guide, Shoe(For Parking Brake)
46550	90213-06002	Washer, Type C(For Parking Brake Shoe)
46550	90213-06003	Washer, Type C(For Parking Brake Shoe)
46550	90213-07006	Washer, Type C (For Shift Lever Pin) - TYPE C(FOR PARKING BRAKE SHOE)
46550	90213-09005	Washer, Type C(For Parking Brake Shoe)
46550	90206-08024	Washer, Wave(For Parking Brake Shoe)
46550	46550-60011	Shoe Assy, Parking Brake, Rh Or Center No.2
46550	46550-35014	Shoe Assy, Parking Brake, Rh Or Center No.2
46550	90506-16052	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90506-14048	Spring, Tension, No.2(For Parking Brake Shoe Return)
46551	46551-35010	Pin, Anchor(For Parking Brake)
46555	46555-35010	Spring, Brake Shoe Hold Down
46556	46556-35010	Pin, Shoe Hold Down Spring
46577	46577-35010	Cover, Adjusting Cam Hole
46611	46601-60010	Lever, Parking Brake Shoe, Rh Or Center
9010108063	90101-08063	New Genuine Part
9010108064	90101-08064	New Genuine Part
9011908146	90119-08146	Bolt(For Parking Brake Setting)
9046112773	90461-12773	New Genuine Part
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411551400	94115-51400	Nut, Lock
9412040600	94120-40600	Nut, Wire Adjusting, No.1
9451101400	94511-01400	WASHER
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
46210-60040-01	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46210-60041-C0	Lever Assy, Parking Brake	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46217-10020-01	Knob, Parking Brake Release Rod	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46217-10020-11	Knob, Parking Brake Release Rod (Black)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46235-60010	Bracket, Parking Brake Lever Support	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46243-60030-01	Cover, Parking Brake Lever	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46410-60110	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46443-12020	Cap, Cable Adjusting	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46451-60040	Bracket, Cable Support	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46501-60030	Drum Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46501-60031	Drum Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46503-60020	Plate Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46506-35011	Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46527-35010	Guide, Shoe(For Parking Brake)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46550-35014	Shoe Assy, Parking Brake, Rh Or Center No.2	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46550-60011	Shoe Assy, Parking Brake, Rh Or Center No.2	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46551-35010	Pin, Anchor(For Parking Brake)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46555-35010	Spring, Brake Shoe Hold Down	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46556-35010	Pin, Shoe Hold Down Spring	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46577-35010	Cover, Adjusting Cam Hole	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
46601-60010	Lever, Parking Brake Shoe, Rh Or Center	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90101-08063	New Genuine Part	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90101-08064	New Genuine Part	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90114-11124	Bolt (For Transfer Output Shaft Companion Flange)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90119-08146	Bolt(For Parking Brake Setting)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90206-08024	Washer, Wave(For Parking Brake Shoe)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90213-06002	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90213-06003	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90213-07006	Washer, Type C (For Shift Lever Pin) - TYPE C(FOR PARKING BRAKE SHOE)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90213-09005	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90461-12773	New Genuine Part	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90501-10745	Spring, Compression(For Parking Brake Pawl Rod)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90506-14048	Spring, Tension, No.2(For Parking Brake Shoe Return)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
90506-16052	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
91611-B0816	Bolt	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
94110-40800	Nut(For Steering Damper)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
94115-51400	Nut, Lock	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
94120-40600	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
94130-00802	Nut, No.1 (For Center Support Bearing)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
94511-01400	WASHER	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Parking Brake & Cable ([11.1980 - ] (8011- )IV4)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 207
Collected: 2026-08-02
