| 04494-60020 |
Shoe Kit, Front Brake |

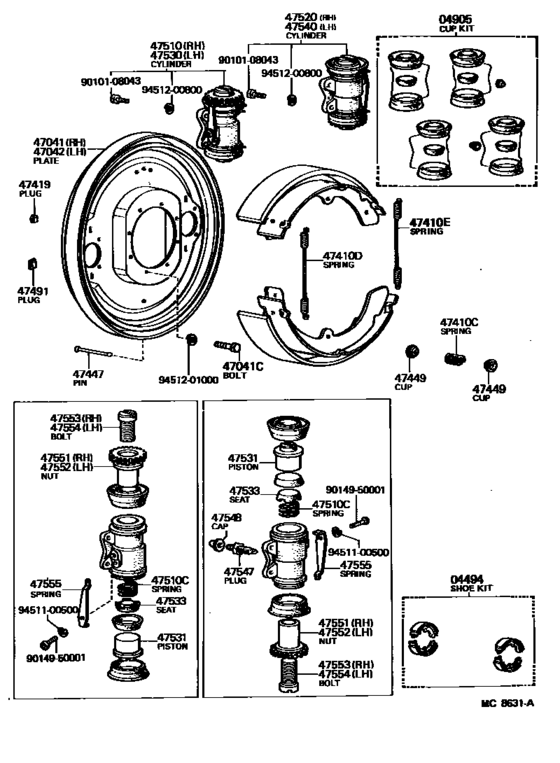

Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 04494-60021 |
Shoe Kit, Front Brake |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 04905-35042 |
Cup Kit, Front Wheel Cylinder |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 31478-30010 |
Bleeder Plug Cap |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47041-60050 |
Plate Sub-Assy, Brake Backing, Front Rh |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47042-60010 |
Plate Sub-Assy, Brake Backing, Front Lh |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47419-35011 |
Plug, Hole(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47447-60010 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47491-36010 |
Plug, Hole(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47491-36020 |
Plug, Hole(For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47510-69065 |
Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47520-69025 |
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47530-69055 |
Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47531-35030 |
Piston, Wheel Brake Cylinder(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47531-35090 |
Piston, Wheel Brake Cylinder(For Rear Brake) - WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47533-30011 |
Seat, Wheel Cylinder Piston Spring(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47540-69025 |
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47547-12010 |
Plug, Bleeder(For Release Cylinder) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47551-36041 |
Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47552-36041 |
Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47553-60030 |
Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47554-60030 |
Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 47555-36020 |
Spring, Adjuster Lock(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 90101-08043 |
New Genuine Part |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 90101-10439 |
Bolt (For Front Lower Ball Joint) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 90149-50001 |
New Genuine Part |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 90501-08122 |
Spring, Compression(For Front Wheel Brake Cylinder) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 90501-23002 |
Spring(For Front Brake Shoe Hold Down) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 90506-26372 |
Spring, Tension(For Front Brake Shoe Return) - TENSION(FOR REAR BRAKE SHOE RETURN) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 94511-00500 |
Washer, Cover Set, No.2 |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 94512-00800 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
| 94512-01000 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Front Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8008-8110)CBU ; (8011-8411)IV4) |
