FJ56

Toyota LAND-CRUISER · 1975 · 3,895 parts · 160 categories
FJ56 ×

← Back to categories

3,895 items

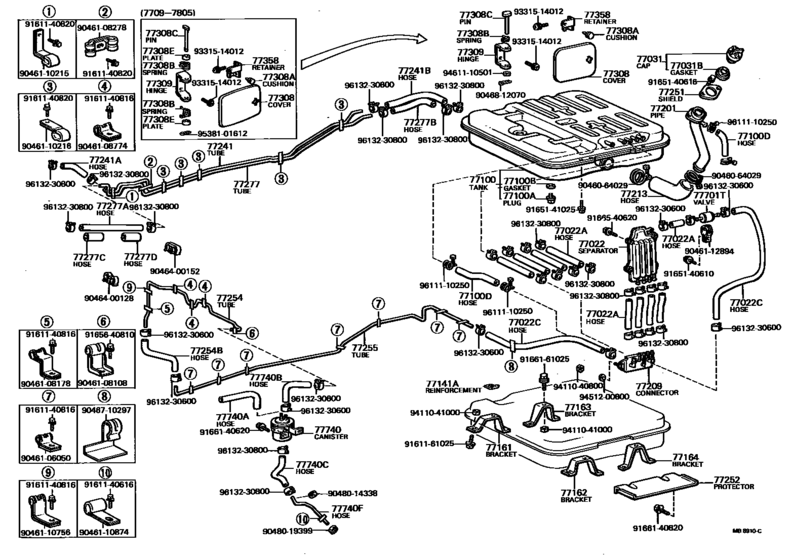

Fuel Tank & Tube ([09.1977 - 07.1980] (7709-8007)FJ56) 108
#OEMPart name
77022 77193-60021 Separator Sub-Assy, Fuel Evaporative
77022 95332-06010 Hose, Fuel Pipe, No.1
77022 95333-06010 Hose, Fuel
77022 95332-08020 Hose, Fuel Pipe, No.1
77022 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77022 95332-08040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77022 95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)
77022 95332-06100 Hose, Fuel(For Fuel Evaporative Separator)
77022 95333-06100 Hose (L=1000)
77031 77310-14070 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77100 77100-60081 Tank Assy, Fuel
77100 77100-60082 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12038 Gasket(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90445-24014 Hose, Fuel, No.1(For Fuel Tank)
77100 90445-24015 Hose, Fuel, No.1(For Fuel Tank)
77141 77141-60020 Reinforcement, Fuel Tank Flange
77161 77501-60010 Bracket, Fuel Tank, Front Rh
77162 77162-60010 Bracket, Fuel Tank, Front Lh
77163 77142-60010 Bracket, Fuel Tank, Rear Rh
77201 77201-60101 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-60102 Pipe Sub-Assy, Fuel Tank Inlet
77209 77209-60010 Connector Sub-Assy, Fuel Tube
77213 77213-60022 Hose, Fuel Tank Sub Inlet
77213 77213-60023 Hose, Fuel Tank Sub Inlet
77241 77251-60091 Tube, Fuel Main, No.1
77241 77251-60140 Tube, Fuel Main, No.1
77241 90445-14030 Hose, Fuel, No.2 (For Main Tube, No.1)
77251 77293-60030 Shield, Fuel Tank, Inlet, No.1
77252 77276-60010 Protector, Fuel Tube
77252 77276-60011 Protector, Fuel Tube
77254 77262-60010 Tube, Fuel Emission, No.1
77254 95332-06040 Hose(For Valve To Timing Gear)
77254 95333-06040 Hose
77255 77261-60010 Tube, Fuel Emission, No.2
77277 77255-60030 Tube, Fuel Return, No.1
77277 77255-60070 Tube, Fuel Return, No.1
77277 95332-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77277 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77277 77259-60050 Hose, Fuel, No.2(For Return Tube, No.1)
77277 90445-25006 Hose, Fuel, No.3(For Return Tube, No.1)
77308 61803-90352 Cover Sub-Assy, Fuel Inlet Box
77308 90541-03078 Cushion(For Cup Holder)
77308 61827-90351 Spring, Torsion(For Fuel Inlet Box Cover)
77308 61824-90355 Pin, Straight(For Fuel Inlet Box Cover)
77309 61823-90354 Hinge Sub-Assy, Fuel Inlet Box Cover
77358 61815-90353 Retainer, Fuel Inlet Cushion
77701 90917-10020 Valve, Check (For Main Fuel Tank)
77740 77740-60032 Canister Assy, Charcoal
77740 90445-07975 Hose, Vacuum, No.1
77740 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
77740 95411-19995 Hose, Vaccum
77740 95332-06030 Hose(For Carburetor)
77740 95333-06030 Hose, Fuel
77740 77264-60010 Tube, Fuel, No.1(For Charcoal Canister)
77740 77264-60020 Tube, Fuel, No.1(For Charcoal Canister)
9046064029 90460-64029 Clamp(For Air Cleaner Inlet, No.1)
9046064029 96111-10650 Clamp(For Air Cleaner Inlet, No.1)
9046106050 90461-06050 New Genuine Part
9046108108 90461-08108 New Genuine Part
9046108178 90461-08178 New Genuine Part
9046108278 90461-08278 New Genuine Part
9046108774 90461-08774 Clamp, Brake Tube, No.18
9046110215 90461-10215 New Genuine Part
9046110216 90461-10216 New Genuine Part
9046110756 90461-10756 New Genuine Part
9046110874 90461-10874 New Genuine Part
9046112894 90461-12894 New Genuine Part
9046400128 90464-00128 New Genuine Part
9046400152 90464-00152 New Genuine Part
9046710297 90467-10297 New Genuine Part
9046812070 90468-12070 Clip, Rear Seat Center Armrest
9048014338 90480-14338 New Genuine Part
9048019399 90480-19399 New Genuine Part
9161140616 91611-40616 Bolt, Hexagon(For Steering Column Bracket)
9161140616 91611-B0616 Bolt(For Transaxle Case Receiver)
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
9161140820 91611-40820 Bolt(For Intake Manifold To Exhaust Manifold)
9161161025 91611-61025 Bolt(For Transaxle & Engine Setting)
9161161025 91612-61025 Bolt (For Control Shaft Cover)
9165140610 91651-40610 RIVET
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165141025 91651-41025 Bolt(For Transaxle Case & Engine Setting)
9165141025 91651-61025 Bolt with washer
9165640810 91656-40810 New Genuine Part
9166140620 91661-40620 New Genuine Part
9166140820 91661-40820 New Genuine Part
9166161025 91661-61025 New Genuine Part
9166540620 91665-40620 New Genuine Part
9166540620 91661-60616 BOLT
9331514012 93315-14012 Screw with washer
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411041000 94110-41000 Nut(For Steering Damper)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461110501 94611-10501 New Genuine Part
9538101612 95381-01612 New Genuine Part
9611110250 96111-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9611110250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
