Search › Model › FJ42

FJ42

Toyota LAND-CRUISER · 1969 · 3,470 parts · 145 categories

3,470 items

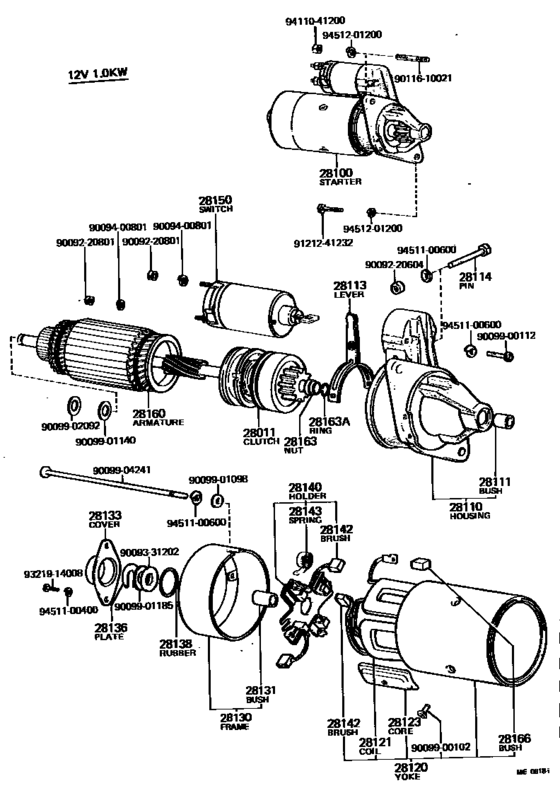

Starter ([03.1969 - 07.1969] (6903-6907)) 69

#	OEM	Part name
28011	28011-60040	Clutch Sub-Assy, Starter
28011	28011-60041	Clutch Sub-Assy, Starter
28100	28100-60040	Starter Assy
28100	28100-60090	Starter Assy
28100	28100-60041	Starter Assy
28110	28110-60041	Housing Assy, Starter Drive
28110	28115-56080	Housing Assy, Starter Drive
28111	28111-51011	Bush(For Starter Housing)
28111	90099-10050	Bush(For Starter Housing)
28111	90099-10052	Bush(For Starter Housing)
28111	90099-10053	Bush(For Starter Housing)
28113	28113-40010	Lever, Starter Pinion Drive
28113	28113-41011	Lever, Starter Pinion Drive
28114	28114-40010	Pin, Starter Drive Lever Set
28114	28114-41011	Pin, Starter Drive Lever Set
28120	28120-60040	Yoke Assy, Starter
28120	28120-60042	Yoke Assy, Starter
28121	28121-41020	Coil, Starter Field
28121	28121-60040	Coil, Starter Field
28123	28123-41020	Core, Starter Pole
28123	28123-50010	Core, Starter Pole
28130	28130-41020	Frame Assy, Starter Commutator End
28130	28130-50010	Frame Assy, Starter Commutator End
28131	28131-20010	Bush, Commutator End Frame
28131	90099-10039	Bush, Commutator End Frame
28131	90099-10040	Bush, Commutator End Frame
28133	28132-40010	Cover, Bearing(For End Frame)
28136	28136-40010	Plate, Starter Lock
28138	28138-40010	Rubber(For Starter Bearing Cover)
28138	28138-26030	Rubber(For Starter Bearing Cover)
28140	28140-41020	Holder Assy, Starter Brush
28140	28140-50011	Holder Assy, Starter Brush
28142	28142-10011	Brush, Starter
28142	28148-50010	Brush, Starter
28143	28143-40010	Spring, Starter Brush
28143	28143-40040	Spring, Starter Brush
28150	28150-21011	Switch Assy, Magnet Starter
28150	28150-41011	Switch Assy, Magnet Starter
28150	28150-33020	Switch Assy, Magnet Starter
28160	28160-41020	Armature Assy, Starter
28160	28160-50012	Armature Assy, Starter
28160	28160-50011	Armature Assy, Starter
28163	28163-40011	Nut Or Collar, Pinion Stop, Starter
28163	90099-07047	Ring, Snap(For Starter Pinion Stop Nut)
28166	28127-40010	Bush, Starter Insulation
28166	28166-40010	Bush, Starter Insulation
9009220604	90092-20604	Nut, Wire Adjusting, No.1
9009220604	94120-40600	Nut, Wire Adjusting, No.1
9009220801	90092-20801	New Genuine Part
9009220801	90099-05809	New Genuine Part
9009331202	90093-31202	Washer, No.2(For Governor Shaft Thrust)
9009400801	90094-00801	New Genuine Part
9009400801	94511-00800	WASHERSPRING
9009900102	90099-00102	New Genuine Part
9009900112	90099-00112	New Genuine Part
9009901098	90099-01098	New Genuine Part
9009901140	90099-01140	New Genuine Part
9009901185	90099-01185	New Genuine Part
9009902092	90099-02092	Washer(For Governor Shaft Thrust)
9009902092	90099-02093	Washer(For Governor Shaft Thrust)
9009904241	90099-04241	New Genuine Part
9009904241	90099-04891	New Genuine Part
9011610021	90116-10021	Bolt, Stud(For Manifold To Cylinder Head)
9121241232	91212-41232	New Genuine Part
9321914008	93219-14008	Screw, W/washer(For Bearing Cover Setting)
9411041200	94110-41200	New Genuine Part
9451100400	94511-00400	WASHERSPRING
9451100600	94511-00600	Washer, Lock, No.2
9451201200	94512-01200	Washer

OEM	Part name	Category
28011-60040	Clutch Sub-Assy, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28011-60041	Clutch Sub-Assy, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28100-60040	Starter Assy	Starter ([03.1969 - 07.1969] (6903-6907))
28100-60041	Starter Assy	Starter ([03.1969 - 07.1969] (6903-6907))
28100-60090	Starter Assy	Starter ([03.1969 - 07.1969] (6903-6907))
28110-60041	Housing Assy, Starter Drive	Starter ([03.1969 - 07.1969] (6903-6907))
28111-51011	Bush(For Starter Housing)	Starter ([03.1969 - 07.1969] (6903-6907))
28113-40010	Lever, Starter Pinion Drive	Starter ([03.1969 - 07.1969] (6903-6907))
28113-41011	Lever, Starter Pinion Drive	Starter ([03.1969 - 07.1969] (6903-6907))
28114-40010	Pin, Starter Drive Lever Set	Starter ([03.1969 - 07.1969] (6903-6907))
28114-41011	Pin, Starter Drive Lever Set	Starter ([03.1969 - 07.1969] (6903-6907))
28115-56080	Housing Assy, Starter Drive	Starter ([03.1969 - 07.1969] (6903-6907))
28120-60040	Yoke Assy, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28120-60042	Yoke Assy, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28121-41020	Coil, Starter Field	Starter ([03.1969 - 07.1969] (6903-6907))
28121-60040	Coil, Starter Field	Starter ([03.1969 - 07.1969] (6903-6907))
28123-41020	Core, Starter Pole	Starter ([03.1969 - 07.1969] (6903-6907))
28123-50010	Core, Starter Pole	Starter ([03.1969 - 07.1969] (6903-6907))
28127-40010	Bush, Starter Insulation	Starter ([03.1969 - 07.1969] (6903-6907))
28130-41020	Frame Assy, Starter Commutator End	Starter ([03.1969 - 07.1969] (6903-6907))
28130-50010	Frame Assy, Starter Commutator End	Starter ([03.1969 - 07.1969] (6903-6907))
28131-20010	Bush, Commutator End Frame	Starter ([03.1969 - 07.1969] (6903-6907))
28132-40010	Cover, Bearing(For End Frame)	Starter ([03.1969 - 07.1969] (6903-6907))
28136-40010	Plate, Starter Lock	Starter ([03.1969 - 07.1969] (6903-6907))
28138-26030	Rubber(For Starter Bearing Cover)	Starter ([03.1969 - 07.1969] (6903-6907))
28138-40010	Rubber(For Starter Bearing Cover)	Starter ([03.1969 - 07.1969] (6903-6907))
28140-41020	Holder Assy, Starter Brush	Starter ([03.1969 - 07.1969] (6903-6907))
28140-50011	Holder Assy, Starter Brush	Starter ([03.1969 - 07.1969] (6903-6907))
28142-10011	Brush, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28143-40010	Spring, Starter Brush	Starter ([03.1969 - 07.1969] (6903-6907))
28143-40040	Spring, Starter Brush	Starter ([03.1969 - 07.1969] (6903-6907))
28148-50010	Brush, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28150-21011	Switch Assy, Magnet Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28150-33020	Switch Assy, Magnet Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28150-41011	Switch Assy, Magnet Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28160-41020	Armature Assy, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28160-50011	Armature Assy, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28160-50012	Armature Assy, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28163-40011	Nut Or Collar, Pinion Stop, Starter	Starter ([03.1969 - 07.1969] (6903-6907))
28166-40010	Bush, Starter Insulation	Starter ([03.1969 - 07.1969] (6903-6907))
90092-20604	Nut, Wire Adjusting, No.1	Starter ([03.1969 - 07.1969] (6903-6907))
90092-20801	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90093-31202	Washer, No.2(For Governor Shaft Thrust)	Starter ([03.1969 - 07.1969] (6903-6907))
90094-00801	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-00102	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-00112	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-01098	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-01140	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-01185	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-02092	Washer(For Governor Shaft Thrust)	Starter ([03.1969 - 07.1969] (6903-6907))
90099-02093	Washer(For Governor Shaft Thrust)	Starter ([03.1969 - 07.1969] (6903-6907))
90099-04241	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-04891	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-05809	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
90099-07047	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([03.1969 - 07.1969] (6903-6907))
90099-10039	Bush, Commutator End Frame	Starter ([03.1969 - 07.1969] (6903-6907))
90099-10040	Bush, Commutator End Frame	Starter ([03.1969 - 07.1969] (6903-6907))
90099-10050	Bush(For Starter Housing)	Starter ([03.1969 - 07.1969] (6903-6907))
90099-10052	Bush(For Starter Housing)	Starter ([03.1969 - 07.1969] (6903-6907))
90099-10053	Bush(For Starter Housing)	Starter ([03.1969 - 07.1969] (6903-6907))
90116-10021	Bolt, Stud(For Manifold To Cylinder Head)	Starter ([03.1969 - 07.1969] (6903-6907))
91212-41232	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
93219-14008	Screw, W/washer(For Bearing Cover Setting)	Starter ([03.1969 - 07.1969] (6903-6907))
94110-41200	New Genuine Part	Starter ([03.1969 - 07.1969] (6903-6907))
94120-40600	Nut, Wire Adjusting, No.1	Starter ([03.1969 - 07.1969] (6903-6907))
94511-00400	WASHERSPRING	Starter ([03.1969 - 07.1969] (6903-6907))
94511-00600	Washer, Lock, No.2	Starter ([03.1969 - 07.1969] (6903-6907))
94511-00800	WASHERSPRING	Starter ([03.1969 - 07.1969] (6903-6907))
94512-01200	Washer	Starter ([03.1969 - 07.1969] (6903-6907))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 145
Collected: 2026-08-02
