FJ42

Toyota LAND-CRUISER · 1969 · 3,470 parts · 145 categories
FJ42 ×

← Back to categories

3,470 items

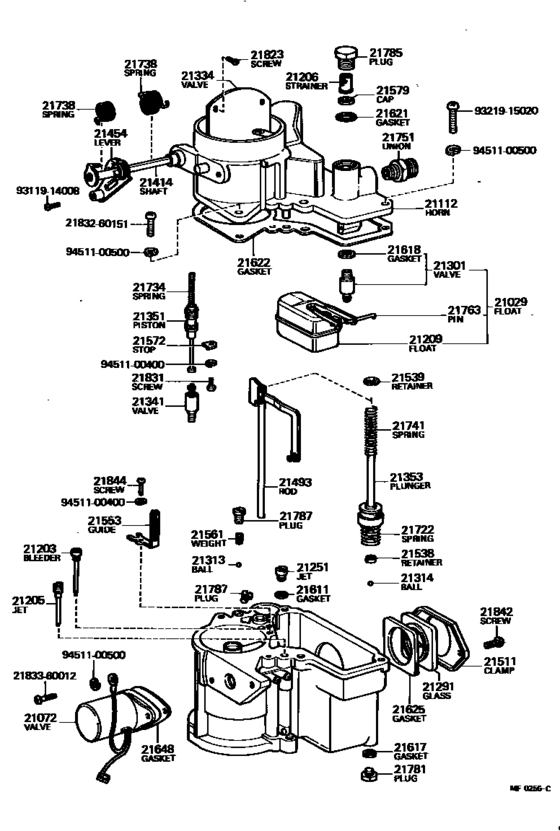

Carburetor ([03.1969 - 09.1969] (6903-6909)) 140
#OEMPart name
21029 21029-60010 Float & Needle Sub-Assy
21029 21209-60010 Float Sub-Assy
21029 21301-60060 Valve Sub-Assy, Needle
21029 21763-60010 Pin, Float Lever
21072 21072-60151 Valve Sub-Assy, Slow
21072 21072-60200 Valve Sub-Assy, Slow
21112 21112-60130 Horn, Air
21112 21112-60152 Horn, Air
21112 21112-60155 Horn, Air
21113 21113-60130 Flange, Carburetor
21113 21113-60131 Flange, Carburetor
21113 21113-60150 Flange, Carburetor
21203 21203-60150 Bleeder Sub-Assy, 1St Main Air
21205 21205-60150 Jet Sub-Assy, Slow
21205 21205-60200 Jet Sub-Assy, Slow
21206 21294-10010 Strainer Sub-Assy
21206 21294-33080 Strainer Sub-Assy
21206 21294-60010 Strainer Sub-Assy
21209 21209-33010 Float Sub-Assy
21209 21209-33011 Float Sub-Assy
21251 21251-60130 Jet, 1St Main
21251 21251-60200 Jet, 1St Main
21251 21251-60151 Jet, 1St Main
21271 21271-60130 Screw, Idle Adjusting
21271 21271-60150 Screw, Idle Adjusting
21271 21271-60200 Screw, Idle Adjusting
21273 21273-30052 Screw, 1St Idle Adjusting
21273 21272-61140 Screw, 1St Idle Adjusting
21273 21273-60151 Screw, Throttle Adjusting
21291 21291-33010 Glass, Level Gage
21291 21291-50010 Glass, Level Gage
21291 21291-23030 Glass, Level Gage
21301 21301-60200 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21313 21313-30010 Ball, Steel, No.1(For Discharge Weight)
21314 21314-60010 Ball, Steel, No.2(For Pump Plunger)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21331 21331-60150 Valve, 1St Throttle
21331 21331-60200 Valve, 1St Throttle
21334 21334-60150 Valve, Choke
21334 21334-60200 Valve, Choke
21341 21304-30010 Valve, Power
21341 21341-60151 Valve, Power
21351 21351-34030 Piston, Power
21351 21351-60151 Piston, Power
21353 21353-60150 Plunger, Pump
21353 21353-60200 Plunger, Pump
21412 21412-60150 Shaft, 1St Throttle
21412 21412-60200 Shaft, 1St Throttle
21412 21412-60201 Shaft, 1St Throttle
21412 21795-41010 Ring, Retainer, No.1(For Throttle Shaft)
21412 21412-60202 Shaft, 1St Throttle
21414 21403-60010 Shaft, Choke
21414 21414-60200 Shaft, Choke
21454 21454-60151 Lever, Choke
21454 21454-60152 Lever, Choke
21454 21454-60200 Lever, Choke
21455 21455-60151 Lever, Throttle
21455 21455-60152 Lever, Throttle
21455 21455-60200 Lever, Throttle
21456 21456-60150 Lever, 1St Throttle Idle Adjusting, No.1
21456 21456-60200 Lever, 1St Throttle Idle Adjusting, No.1
21456 21456-60201 Lever, 1St Throttle Idle Adjusting, No.1
21472 21472-60150 Link, Pump Connecting, No.2
21481 21481-60150 Connector, 1St Idle
21481 21481-60200 Connector, 1St Idle
21481 21481-60201 Connector, 1St Idle
21493 21493-60151 Rod, Lifter
21502 21392-60150 Clamp Sub-Assy, Choke Wire
21502 21392-60200 Clamp Sub-Assy, Choke Wire
21502 21392-60201 Clamp Sub-Assy, Choke Wire
21506 21393-60150 Clamp Sub-Assy, Throttle Wire
21511 21511-33010 Clamp, Level Gage
21511 21511-50011 Clamp, Level Gage
21538 21538-31010 Retainer, Ball Check
21539 21539-60150 Retainer, Pump Spring
21546 21546-10010 Collar, 1St Idle Adjust
21553 21553-60150 Guide
21561 21561-30010 Weight, Pump Discharge
21561 21561-22010 Weight, Pump Discharge
21572 21572-22010 Stop, Power Piston
21572 21572-60060 Stop, Power Piston
21579 21579-60010 Cap, Strainer
21611 21611-22010 Gasket, Main Jet
21617 21617-30010 Gasket, Main Passage Plug
21617 21628-30010 Gasket, Main Passage Plug
21618 21618-60010 Gasket, Needle Valve Seat
21621 21619-22010 Gasket, Union Nipple
21622 21622-60150 Gasket, Air Horn
21622 21622-60151 Gasket, Air Horn
21622 21622-60200 Gasket, Air Horn
21622 21622-61150 Gasket, Air Horn
21622 21622-60201 Gasket, Air Horn
21623 21623-60150 Gasket, Body Flange
21623 21623-60200 Gasket, Body Flange
21625 21625-50010 Gasket, Level Gage
21625 21641-33040 Gasket, Level Gage
21648 21649-60150 Packing(For Slow Valve Cover)
21722 21722-60150 Spring, Pump Damping
21722 21722-60200 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21723 21723-60010 Spring, Idle Adjusting
21724 21723-60150 Spring, Throttle Adjusting
21729 21728-60150 Spring, 1St Throttle Back
21734 21734-41010 Spring, Power Piston
21734 21734-60151 Spring, Power Piston
21738 21737-60010 Spring, Choke Valve Relief
21738 21738-60010 Spring, Choke Valve Relief
21738 21738-60070 Spring, Choke Valve Relief
21741 21741-60150 Spring, Pump
21751 90404-13006 Union, Nipple
21751 90404-13105 Bolt, Union(For Oil Filter Inlet Pipe) - NIPPLE(FOR FUEL INLET)
21763 21763-29270 Pin, Float Lever
21763 21763-61330 Pin, Float Lever
21781 21677-60200 Plug, Main Passage(For Carburetor Jet)
21781 21781-60200 Plug, Main Passage(For Carburetor Jet)
21781 21782-21060 Plug, Main Passage(For Carburetor Jet)
21785 21781-60010 Plug, Carburetor Fuel Inlet Strainer
21787 21787-41011 Plug, Pump Jet
21787 21787-69210 Plug, Pump Jet
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21822 21821-34030 Screw, 1St Throttle Valve Set
21822 21821-34031 Screw, 1St Throttle Valve Set - 2ND THROTTLE VALVE SET
21823 21821-60010 Screw, 2Nd Throttle Valve Set - 1ST THROTTLE VALVE SET
21823 21821-60011 Screw, 2Nd Throttle Valve Set
21823 21823-60010 Screw, Choke, Valve Set
21823 21823-60011 Screw, High Speed Valve Set
21831 21842-33010 Screw, Power Piston Stop
21834 21834-31010 Screw, Set, No.1(For Carburetor Body Set)
21834 21834-60010 Screw, Set, No.2(For Carburetor Body Set)
21852 21852-30010 Nut, Throttle Lever Set
21881 21881-60010 Washer, Lock(For Throttle Shaft)
2183260151 21832-60151 Screw, Set(For Diesel Throttle)
2183360012 21833-60012 Screw, Set, No.1(For Carburetor Body Set)
2185760011 21857-60011 Nut, Choke Wire Set
9311914008 93119-14008 Screw, Choke Wire Clamp
9321915020 93219-15020 New Genuine Part
9451100400 94511-00400 WASHERSPRING
9451100500 94511-00500 Washer, Cover Set, No.2
