FJ40

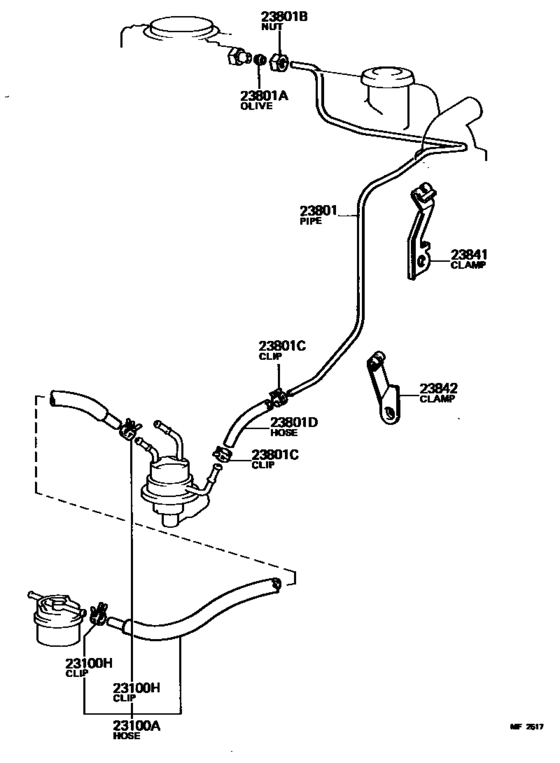

Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) 10
| # | OEM | Part name |
|---|---|---|
| 23100 | 23820-61070 | Hose, Fuel |
| 23100 | 96132-30800 | Clip, No.3(For Idle-Up Hose) |
| 23100 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 23801 | 23811-61032 | Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1 |
| 23801 | 96395-71400 | Olive(For Fuel Pipe) |
| 23801 | 90402-13041 | Nut, Union(For Fuel Pipe) |
| 23801 | 95332-08020 | Hose, Fuel Pipe, No.1 |
| 23801 | 95337-08020 | Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1) |
| 23841 | 23841-61021 | Clamp, Fuel Pipe(Hose), No.1 |
| 23842 | 23842-61031 | Clamp, Fuel Pipe(Hose), No.2 |
| OEM | Part name | Category |
|---|---|---|
| 23811-61032 | Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1 | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 23820-61070 | Hose, Fuel | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 23841-61021 | Clamp, Fuel Pipe(Hose), No.1 | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 23842-61031 | Clamp, Fuel Pipe(Hose), No.2 | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 90402-13041 | Nut, Union(For Fuel Pipe) | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 95332-08020 | Hose, Fuel Pipe, No.1 | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 95337-08020 | Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1) | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 96132-30800 | Clip, No.3(For Idle-Up Hose) | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
| 96395-71400 | Olive(For Fuel Pipe) | Fuel Pipe & Clamp ([08.1980 - ] (8008- )2F) |
