FJ40

Toyota LAND-CRUISER · 1969 · 4,315 parts · 173 categories
FJ40 ×

← Back to categories

4,315 items

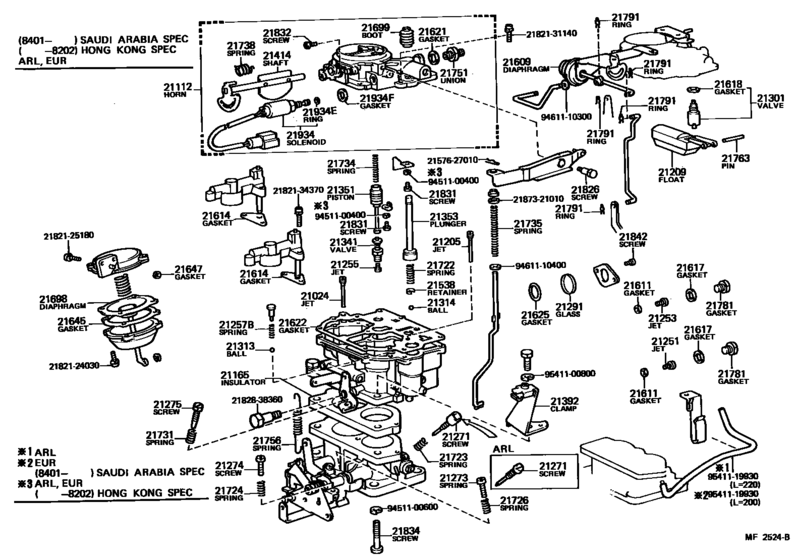

Carburetor ([08.1980 - ] (8008- )2F) 81
#OEMPart name
21024 21024-61010 Jet Sub-Assy, 2Nd
21112 21112-61011 Horn, Air
21112 21112-61112 Horn, Air
21165 21165-61010 Insulator
21165 21165-61310 Insulator
21205 21024-61060 Jet Sub-Assy, Slow
21205 21205-61011 Jet Sub-Assy, Slow
21209 21209-33011 Float Sub-Assy
21251 90999-41132 Jet, 1St Main
21251 90999-41144 Jet, 1St Main
21253 90999-42200 Jet, 2Nd Main
21255 90999-43090 Jet, Power
21257 21864-26020 Spring(For Pump Jet)
21271 21271-61061 Screw, Idle Adjusting
21271 21271-61110 Screw, Idle Adjusting
21273 21273-38010 Screw, Throttle Adjusting
21274 21273-30052 Screw, 1St Idle Adjusting
21274 21272-61140 Screw, 1St Idle Adjusting
21275 21275-41130 Screw, 1St Idle Adjusting
21291 21291-34320 Glass, Level Gage
21301 21301-61050 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21341 21304-61060 Valve, Power
21351 21351-34030 Piston, Power
21353 21353-61020 Plunger, Pump
21392 21392-61020 Clamp, Choke Wire
21414 21054-61020 Shaft, Choke
21538 21538-31010 Retainer, Ball Check
21609 21609-61110 Diaphragm Sub-Assy
21611 21611-22010 Gasket, Main Jet
21614 21614-60200 Gasket, Venturi
21614 21614-61310 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-61010 Gasket, Air Horn
21622 21622-61310 Gasket, Air Horn
21625 21655-60200 Gasket, Level Gage
21645 21645-33080 Gasket, Diaphragm, Cap
21645 21645-41010 Gasket, Diaphragm, Cap
21647 21649-33080 Gasket, Diaphragm Housing Cap
21698 21669-61100 Diaphragm
21699 21699-61010 Boot(For Pump Plunger)
21722 21722-60200 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21726 21723-11041 Spring, Idle Adjusting
21734 21734-21030 Spring, Power Piston
21734 21734-61120 Spring, Power Piston
21735 21735-44010 Spring, Pump Arm
21738 21738-60070 Spring, Choke Valve Relief
21751 21894-61020 Union, Nipple
21756 21756-61010 Spring, Back(For Throttle Shaft)
21763 21763-38010 Pin, Float Lever
21781 21781-30020 Plug, Main Passage(For Carburetor Jet)
21781 21781-16510 Plug, Main Passage(For Carburetor Jet)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21826 21826-24470 Screw, Pump Arm Set
21831 21842-33010 Screw, Power Piston Stop
21832 21832-33010 Screw(For Choke Lever Adapter Set)
21834 21834-31140 Screw, Set, No.2(For Carburetor Body Set)
21934 21062-61010 Solenoid, Throttle Valve
21934 21062-61270 Solenoid, Throttle Valve
21934 21062-61021 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21649-38010 Gasket
2157627010 21576-27010 Clip, Pump Strainer
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2182134370 21821-34370 Screw, 2nd Throttle Valve Set
2182838360 21828-38360 Screw, 1St Idle Set
2187321010 21873-21010 Washer, Plunger
9451100400 94511-00400 WASHERSPRING
9451100600 94511-00600 Washer, Lock, No.2
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
9541100800 95411-00800 New Genuine Part
9541119930 95411-19930 Hose(For Carburetor To Manifold)
9541119930 90999-92002 Air Hose (300 mm)
