Search › Model › FA115

FA115

Toyota HEAVY-DUTY-TRUCK · 1969 · 5,324 parts · 209 categories
FA115 ×

← Back to categories

5,324 items

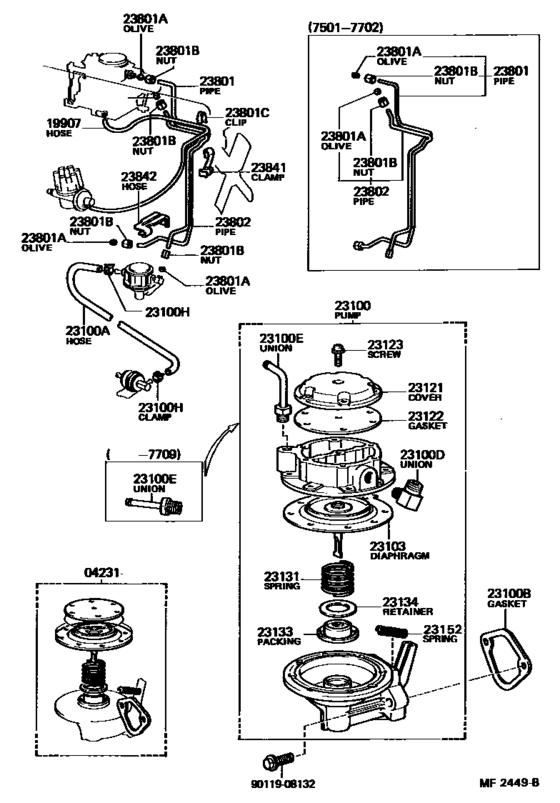

Fuel Pump & Pipe ([01.1975 - 09.1979] (7501-7909)F) 82
#OEMPart name
4231 04231-60070 Pump Kit, Fuel
4231 04231-60071 Pump Kit, Fuel
4231 04231-61010 Pump Kit, Fuel
19907 19907-60032 Hose, Vacuum, No.1
19907 90445-07479 Hose, Vacuum, No.1
19907 90445-08091 Hose, Fuel, No.1(For Charcoal Canister)
19907 90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)
19907 90445-08201 Hose, Fuel, No.1(For Charcoal Canister) - VACUUM, NO.1
23100 23100-60050 Pump Assy, Fuel
23100 23100-69035 Pump Assy, Fuel
23100 23100-60051 Pump Assy, Fuel
23100 23100-60060 Pump Assy, Fuel
23100 23100-69045 Pump Assy, Fuel
23100 23100-60061 Pump Assy, Fuel
23100 23100-61011 Pump Assy, Fuel
23100 23100-60062 Pump Assy, Fuel
23100 23100-61010 Pump Assy, Fuel
23100 23100-61030 Pump Assy, Fuel
23100 23100-61050 Pump Assy, Fuel
23100 23820-61080 Hose, Fuel
23100 90923-01014 Hose, Fuel
23100 95323-07055 Hose, Fuel
23100 90923-01125 Hose, Fuel
23100 95322-07055 Hose, Fuel
23100 95331-08030 Hose Or Tube(For Fuel Evaporative Separator) - FUEL, NO.2 (FOR MAIN TUBE, NO.1)
23100 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
23100 95331-08032 Hose, Fuel - FUEL, NO.1 (FOR MAIN TUBE, NO.3)
23100 95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)
23100 95332-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
23100 95332-08034 Hose, Fuel, No.2 (For Main Tube, No.1)
23100 95332-08040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
23100 90923-05003 Gasket, Fuel Pump
23100 90923-05019 Gasket, Fuel Pump
23100 90923-05005 Gasket, Cylinder Block Side Cover, No.2
23100 23116-60030 Union, Nipple(For Fuel Outlet)
23100 90404-13105 Bolt, Union(For Oil Filter Inlet Pipe) - NIPPLE(FOR FUEL INLET)
23100 90404-51244 Union, Nipple(For Fuel Outlet) - NIPPLE(FOR FUEL INLET)
23100 90404-51266 Union, Nipple(For Fuel Inlet)
23100 90467-13130 Clip(For Fuel Hose)
23100 90467-13138 Clip(For Fuel Hose)
23100 96132-51300 Clip(For Ventilation Hose No.2)
23100 96132-30800 Clip, No.3(For Idle-Up Hose)
23103 23103-60021 Diaphragm Sub-Assy
23103 23103-60050 Diaphragm Sub-Assy
23121 23121-60020 Cover, Fuel Pump
23121 23121-60050 Cover, Fuel Pump
23122 23122-60010 Gasket, Fuel Pump Cover
23122 23122-61010 Gasket, Fuel Pump Cover
23123 23123-60021 Screw, Cover Set, No.1
23123 23123-60022 Screw, Cover Set, No.1
23123 93319-15014 Screw, Cover Set, No.1
23131 23131-60010 Spring, Diaphragm(For Fuel Pump)
23133 23133-60050 Packing, Oil Seal(For Fuel Pump)
23134 23134-40011 Retainer, Oil Seal Packing(For Fuel Pump)
23152 23152-60020 Spring, Rocker Arm
23801 23801-60140 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801 23811-60142 Pipe, Fuel(for Fuel Filter To Injection Pump)
23801 23841-60022 Clamp, Fuel Pipe(Hose), No.1
23801 90402-13041 Nut, Union(For Fuel Pipe)
23801 96395-71400 Olive(For Fuel Pipe)
23801 23801-60142 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801 23801-61010 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801 23811-61010 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801 23811-61030 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801 23811-61032 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801 23841-61021 Clamp, Fuel Pipe(Hose), No.1
23801 23842-61031 Clamp, Fuel Pipe(Hose), No.2
23801 23811-61031 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801 90468-05005 Clip(For Carburetor Fuel Hose)
23801 90468-05025 Clip(For Carburetor Fuel Hose)
23802 23802-61010 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.2
23802 23812-61010 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.2
23802 23812-61030 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.2
23841 23841-60011 Clamp, Fuel Pipe(Hose), No.1
23841 23841-60020 Clamp, Fuel Pipe(Hose), No.1
23841 23841-60021 Clamp, Fuel Pipe(Hose), No.1
23841 23841-61010 Clamp, Fuel Pipe(Hose), No.1
23841 23841-61020 Clamp, Fuel Pipe(Hose), No.1
23842 23842-61010 Clamp, Fuel Pipe(Hose), No.2
23842 23842-61011 Clamp, Fuel Pipe(Hose), No.2
23842 23842-61030 Clamp, Fuel Pipe(Hose), No.2
9011908132 90119-08132 New Genuine Part
