FA115

Toyota HEAVY-DUTY-TRUCK · 1969 · 5,324 parts · 209 categories
FA115 ×

← Back to categories

5,324 items

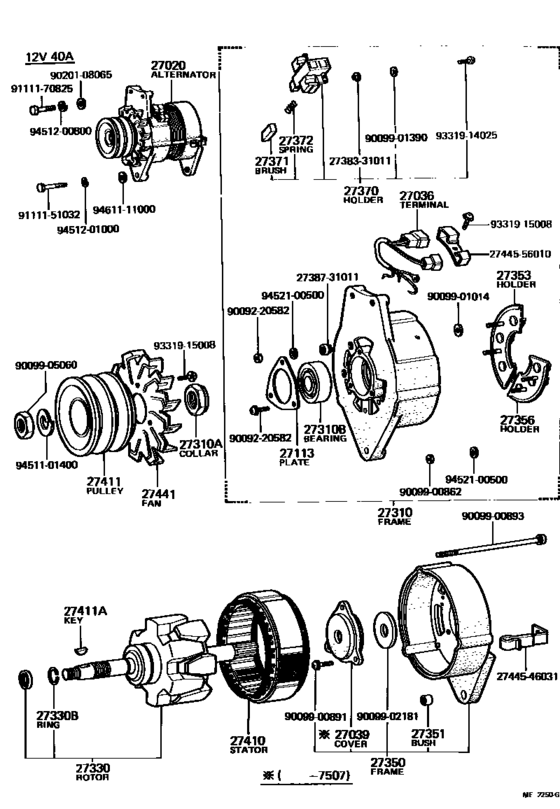

Alternator ([03.1974 - 07.1982] (7403-8207)F ; (7507-8002)F) 70
#OEMPart name
27020 27020-60032 Alternator Assy
27020 27020-61110 Alternator Assy
27020 27020-60033 Alternator Assy
27020 27020-60080 Alternator Assy
27036 27036-60080 Terminal Sub-Assy, Lead Wire, Alternator
27039 27039-33011 Cover, Alternator Rear End
27039 27039-56010 Cover, Rear End Frame(For Vacuum Pump Oil Seal) - ALTERNATOR REAR END
27113 27312-31011 Plate, Bearing Retainer, Alternator
27113 27312-56011 Plate, Bearing Retainer, Alternator
27310 27310-31011 Frame Assy, Drive End, Alternator
27310 27310-31012 Frame Assy, Drive End, Alternator
27310 27314-56010 Collar Or Nut(For Alternator Drive End Frame)
27310 90099-19075 Collar Or Nut(For Alternator Drive End Frame)
27310 90099-19203 Collar Or Nut(For Alternator Drive End Frame)
27310 90099-10013 Bearing(For Alternator Drive End Frame)
27310 90099-10082 Bearing(For Alternator Drive End Frame)
27310 90099-10137 Bearing(For Alternator Drive End Frame)
27330 27330-33010 Rotor Assy, Alternator
27330 27330-60080 Rotor Assy, Alternator
27330 90099-07048 Ring, Snap(For Alternator Rotor)
27330 90099-07103 Ring, Snap(For Alternator Rotor)
27350 27350-33010 Frame Assy, Rectifier End
27350 27350-33011 Frame Assy, Rectifier End
27350 27350-33012 Frame Assy, Rectifier End
27350 27350-77022 Frame Assy, Rectifier End
27350 27350-77023 Frame Assy, Rectifier End
27351 27351-30010 Bush(For Alternator Rectifier End Frame)
27351 27351-56012 Bush(For Alternator Rectifier End Frame)
27353 27353-31012 Holder, W/rectifier Positive, Alternator
27353 27353-60080 Holder, W/rectifier Positive, Alternator
27356 27356-31012 Holder, W/rectifier Negative, Alternator
27356 27356-60080 Holder, W/rectifier Negative, Alternator
27370 27370-31012 Holder Assy, Alternator Brush
27370 27370-60080 Holder Assy, Alternator Brush
27371 27371-31011 Brush, Alternator
27372 27372-31011 Spring, Alternator Brush
27410 27410-33010 Stator Assy, Alternator
27410 27410-46031 Stator Assy, Alternator
27411 27411-60032 Pulley, Alternator
27411 27411-60080 Pulley, Alternator
27411 90097-00465 Key(For Alternator Pulley) - COMPRESSOR CRANKSHAFT
27441 27441-31011 Fan, Alternator
27441 27441-34030 Fan, Alternator
27441 27441-46030 Fan, Alternator
27441 27441-46031 Fan, Alternator
2738331011 27383-31011 Washer, Alternater Terminal Insulator, No.1
2738731011 27387-31011 Insulator, Terminal
2744546031 27445-46031 New Genuine Part
2744546031 27445-46032 New Genuine Part
2744556010 27445-56010 New Genuine Part
9009220582 90092-20582 New Genuine Part
9009900862 90099-00862 New Genuine Part
9009900891 90099-00891 New Genuine Part
9009900893 90099-00893 BOLT
9009901014 90099-01014 New Genuine Part
9009901390 90099-01390 New Genuine Part
9009902181 90099-02181 Felt (For Alternator Rectifier End Frame)
9009905060 90099-05060 Collar Or Nut(For Alternator Drive End Frame)
9020108065 90201-08065 Washer, Plate(For Control Select Lever)
9111151032 91111-51032 Pin Or Bolt(For Steering Worm Yoke)
9111151032 91112-61032 Pin Or Bolt(For Steering Worm Yoke)
9111170825 91111-70825 Bolt, Flexible Attaching(for Steering Main Shaft)
9111170825 91111-80825 Bolt, Flexible Attaching(for Steering Main Shaft)
9331914025 93319-14025 Screw W Washer
9331915008 93319-15008 SCREW
9451101400 94511-01400 WASHER
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9452100500 94521-00500 New Genuine Part
9461111000 94611-11000 New Genuine Part
