F700

Toyota RUSH · 2006 · 3,421 parts · 209 categories

3,421 items

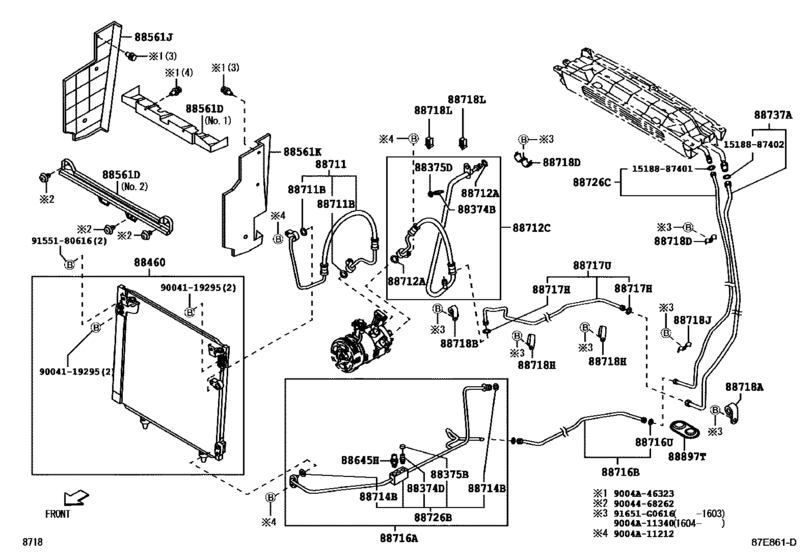

Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA) 42

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88374	88374-87601	Valve, Service, No.1
88375	88375-87603	Cap, Service Valve (For Cooler Pipe)
88375	88375-87601	Cap, Service Valve, No.1
88460	88460-BZ070	Condenser Assy, Cooler
88460	88460-BZ190	Condenser Assy, Cooler
88561	88561-BZ090	Grille, Air Inlet No.3
88561	88561-BZ240	Grille, Air Inlet No.3
88561	88561-BZ250	Grille, Air Inlet No.3
88561	88561-BZ251	Grille, Air Inlet No.3
88561	88561-BZ080	Grille, Air Inlet No.1 - AIR INLET NO.2
88561	88561-BZ070	Grille, Air Inlet No.2 - AIR INLET NO.1
88645	88645-87602	Switch, Pressure No.1
88711	88711-BZ180	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-BZ600	Hose, Cooler Refrigerant Discharge, No.1
88711	15188-87402	Ring, O
88712	15188-87403	Ring, O(For Cooler Refrigerant Suction Hose)
88712	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
88712	88712-BZ170	Hose, Suction
88712	88712-BZ630	Hose, Suction
88714	15188-87401	Ring, O
88716	88716-BZ300	Pipe, Cooler Refrigerant Liquid, A
88716	88716-BZB90	Pipe, Cooler Refrigerant Liquid, A
88716	88716-BZ030	Pipe, Cooler Refrigerant Liquid, B
88716	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
88716	90099-14119-TH	O RING
88717	88717-BZ010	Tube, Suction, No.1
88718	88718-BZ330	Clamp(For Cooler Refrigerant Pipe), No.1
88718	88718-BZ240	Clamp(For Cooler Refrigerant Pipe), No.1
88718	88718-BZ320	Clamp(For Cooler Refrigerant Pipe), No.4
88718	88718-BZ030	Clamp(For Cooler Refrigerant Pipe), No.5
88718	88718-BZ040	Clamp(For Cooler Refrigerant Hose), No.1
88718	88718-BZ280	Clamp(For Cooler Refrigerant Pipe), No.3
88726	88716-BZC70	Pipe, Cooler Refrigerant Liquid, B
88726	88726-BZ050	Pipe, Cooler Refrigerant Liquid, B
88726	88716-BZ310	Pipe, Cooler Refrigerant Liquid, C
88737	88717-BZ120	Tube, Suction, A(For Cool Box)
88897	88897-87Z36	Grommet (For Cooler Unit)
91651	91651-G0616	BOLT WWASHER
9004119295	90041-19295	New Genuine Part
9004468262	90044-68262	New Genuine Part
9155180616	91551-80616	BOLT FLANGE

OEM	Part name	Category
15188-87401	Ring, O	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
15188-87402	Ring, O	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
15188-87403	Ring, O(For Cooler Refrigerant Suction Hose)	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88374-87601	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88375-87601	Cap, Service Valve, No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88375-87603	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88460-BZ070	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88460-BZ190	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88561-BZ070	Grille, Air Inlet No.2 - AIR INLET NO.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88561-BZ080	Grille, Air Inlet No.1 - AIR INLET NO.2	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88561-BZ090	Grille, Air Inlet No.3	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88561-BZ240	Grille, Air Inlet No.3	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88561-BZ250	Grille, Air Inlet No.3	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88561-BZ251	Grille, Air Inlet No.3	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88645-87602	Switch, Pressure No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88711-BZ180	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88711-BZ600	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88712-BZ170	Hose, Suction	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88712-BZ630	Hose, Suction	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88716-BZ030	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88716-BZ300	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88716-BZ310	Pipe, Cooler Refrigerant Liquid, C	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88716-BZB90	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88716-BZC70	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88717-BZ010	Tube, Suction, No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88717-BZ120	Tube, Suction, A(For Cool Box)	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88718-BZ030	Clamp(For Cooler Refrigerant Pipe), No.5	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88718-BZ040	Clamp(For Cooler Refrigerant Hose), No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88718-BZ240	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88718-BZ280	Clamp(For Cooler Refrigerant Pipe), No.3	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88718-BZ320	Clamp(For Cooler Refrigerant Pipe), No.4	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88718-BZ330	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88726-BZ050	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
88897-87Z36	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
90041-19295	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
90044-68262	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
91551-80616	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
91651-G0616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1503- )IDN ; (1505- )MA)
