Search › Model › F700
F700

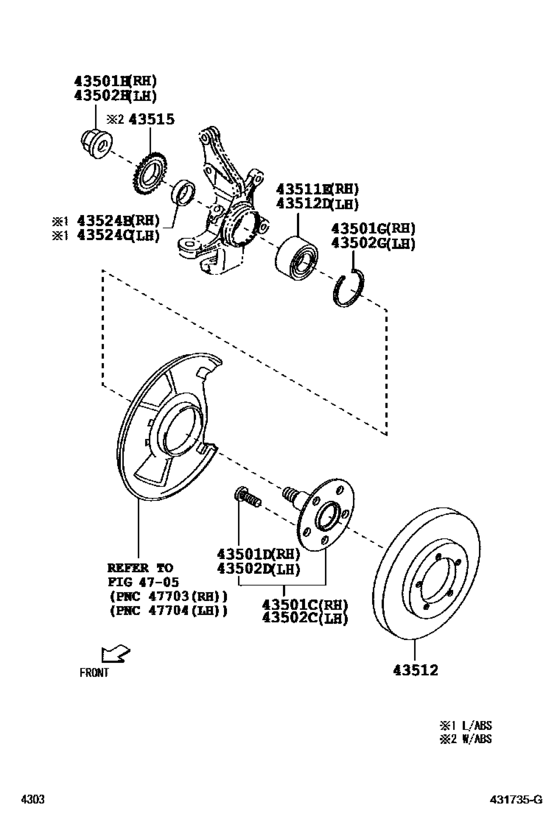

Front Axle Hub ([12.2006 - ] (0612- )) 10
| # | OEM | Part name |
|---|---|---|
| 43501 | 43502-BZ040 | Hub Sub-Assy, Front Axle, Rh |
| 43501 | 90049-12055 | Bolt, Hub (For Rear Axle Rh) |
| 43501 | 90045-21111 | Ring, Hole Snap (For Front Axle Hub Rh) |
| 43501 | 90041-77014 | Nut (For Front Axle Shaft Rh) |
| 43511 | 90043-63368 | Bearing (For Front Axle Hub Rh) |
| 43511 | 90043-63314 | Bearing (For Front Axle Hub Rh) |
| 43512 | 43512-87Z06 | Disc, Front |
| 43515 | 43515-B0020 | Rotor, Skid Control, Front |
| 43524 | 43524-B0010 | Spacer, Front Wheel Inner Bearing, Rh |
| 43524 | 43524-BZ010 | Spacer, Front Wheel Inner Bearing, Rh |
| OEM | Part name | Category |
|---|---|---|
| 43502-BZ040 | Hub Sub-Assy, Front Axle, Rh | Front Axle Hub ([12.2006 - ] (0612- )) |
| 43512-87Z06 | Disc, Front | Front Axle Hub ([12.2006 - ] (0612- )) |
| 43515-B0020 | Rotor, Skid Control, Front | Front Axle Hub ([12.2006 - ] (0612- )) |
| 43524-B0010 | Spacer, Front Wheel Inner Bearing, Rh | Front Axle Hub ([12.2006 - ] (0612- )) |
| 43524-BZ010 | Spacer, Front Wheel Inner Bearing, Rh | Front Axle Hub ([12.2006 - ] (0612- )) |
| 90041-77014 | Nut (For Front Axle Shaft Rh) | Front Axle Hub ([12.2006 - ] (0612- )) |
| 90043-63314 | Bearing (For Front Axle Hub Rh) | Front Axle Hub ([12.2006 - ] (0612- )) |
| 90043-63368 | Bearing (For Front Axle Hub Rh) | Front Axle Hub ([12.2006 - ] (0612- )) |
| 90045-21111 | Ring, Hole Snap (For Front Axle Hub Rh) | Front Axle Hub ([12.2006 - ] (0612- )) |
| 90049-12055 | Bolt, Hub (For Rear Axle Rh) | Front Axle Hub ([12.2006 - ] (0612- )) |
