Search › Model › F700
F700

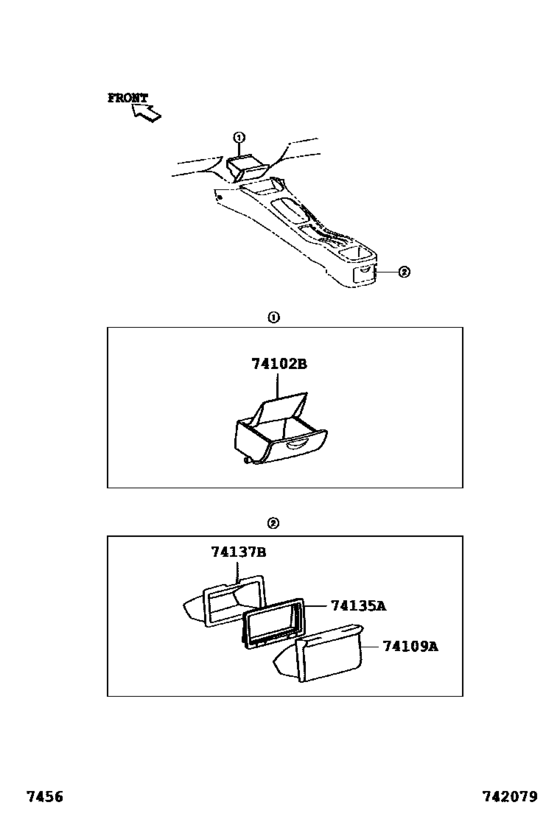

Ash Receptacle ([12.2006 - ] (0612- )) 8
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-BZ060-B0 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-BZ060-E0 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-BZ060-E1 | Box Sub-Assy, Front Ash Receptacle |
| 74109 | 74109-0B010-B1 | Box Sub-Assy, Ash Receptacle |
| 74109 | 74109-0B010-E1 | Box Sub-Assy, Ash Receptacle |
| 74109 | 74109-0B010-E2 | Box Sub-Assy, Ash Receptacle |
| 74135 | 74135-0B010 | Retainer, Rear Ash Receptacle, No.1 |
| 74137 | 74137-0B010 | Retainer, Rear Ash Receptacle, Inner |
| OEM | Part name | Category |
|---|---|---|
| 74102-BZ060-B0 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([12.2006 - ] (0612- )) |
| 74102-BZ060-E0 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([12.2006 - ] (0612- )) |
| 74102-BZ060-E1 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([12.2006 - ] (0612- )) |
| 74109-0B010-B1 | Box Sub-Assy, Ash Receptacle | Ash Receptacle ([12.2006 - ] (0612- )) |
| 74109-0B010-E1 | Box Sub-Assy, Ash Receptacle | Ash Receptacle ([12.2006 - ] (0612- )) |
| 74109-0B010-E2 | Box Sub-Assy, Ash Receptacle | Ash Receptacle ([12.2006 - ] (0612- )) |
| 74135-0B010 | Retainer, Rear Ash Receptacle, No.1 | Ash Receptacle ([12.2006 - ] (0612- )) |
| 74137-0B010 | Retainer, Rear Ash Receptacle, Inner | Ash Receptacle ([12.2006 - ] (0612- )) |
