F654

Toyota AVANZA · 2015 · 1,943 parts · 166 categories

1,943 items

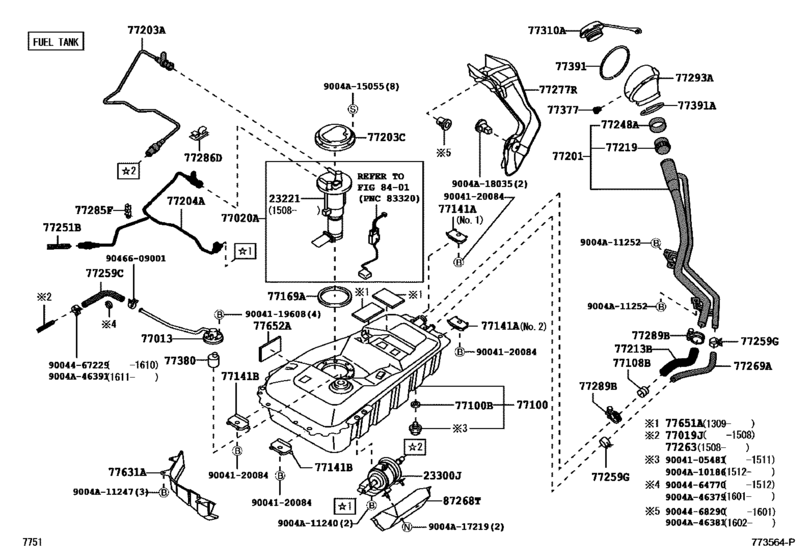

Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- )) 50

#	OEM	Part name
23221	23100-BZ220	Pump, Fuel
23300	23300-B4010	Filter Assy, Fuel
23300	23300-BZ010	Filter Assy, Fuel
77013	77013-BZ100	Tube Sub-Assy, Fuel Tank Breather, No.2
77019	77019-BZ160	Tube Sub-Assy, Fuel Tank To Canister
77020	23210-BZ130	Tube Assy, Fuel Suction W/pump & Gage
77100	77001-BZ270	Tank Assy, Fuel
77100	90044-30291	Gasket(For Fuel Tank)
77100	77001-BZ260	Tank Assy, Fuel
77108	77108-B2010	Valve Sub-Assy, Fuel Tank Filler Check
77141	77141-BZ120	Reinforcement, Fuel Tank Flange
77141	77141-BZ130	Reinforcement, Fuel Tank Flange
77141	77141-BZ090	Reinforcement, Fuel Tank Flange, No.1
77169	23232-BZ010	Gasket, Fuel Pump Bracket
77201	77201-BZ170	Pipe Sub-Assy, Fuel Tank Inlet
77203	77203-BZ100	Tube Sub-Assy, Fuel Suction
77203	23265-BZ010	Bracket, Fuel Pump
77204	77204-BZ010	Tube, Fuel Tank Return
77213	77213-BZ170	Hose, Fuel Tank To Filler Pipe
77213	77213-BZ160	Hose, Fuel Tank To Filler Pipe
77219	77219-0K010	Cover, Fuel Tank Filler Pipe
77251	77251-BZ210	Tube, Fuel Main
77259	77259-BZ010	Hose, Fuel
77259	90044-67244	Clamp Or Clip, Hose(For Water By-Pass Pipe)
77263	77263-BZ160	Tube, Fuel Tank To Canister, No.3
77269	77269-B0010	Hose, Fuel Tank Breather
77269	77269-BZ170	Hose, Fuel Tank Breather
77269	77269-BZ010	Hose, Fuel Tank Breather
77277	77277-BZ012	Protector, Fuel Tank Filler Pipe
77285	77285-B0010	Clamp, Fuel Tube, No.1
77286	77286-B0010	Clamp, Fuel Tube, No.2
77289	96111-30440	Clamp (For Fuel Filler Pipe)
77293	77293-BZ012	Shield, Fuel Tank Filler Pipe, No.3
77310	77300-52030	Cap Assy, Fuel Tank
77377	77377-12050	Bracket, Fuel Lid Lock Control
77380	77380-0K010	Valve Assy, Fuel Cut Off
77391	77391-BZ010	Ring, Fuel Inlet Box
77391	77391-BZ040	Ring, Fuel Inlet Box
77631	77631-BZ061	Protector, Fuel Tank, Lower Center
77651	77651-BZ030	Cushion, Fuel Tank, No.2
77651	77652-B2010	Cushion, Fuel Tank, No.2
77652	77652-BZ040	Cushion, Fuel Tank, No.2
87268	87268-BZ020	Protector, No.1
9004105481	90041-05481	Bolt, Fuel Tank
9004119608	90041-19608	New Genuine Part
9004120084	90041-20084	New Genuine Part
9004464770	90044-64770	New Genuine Part
9004467229	90044-67229	New Genuine Part
9004468290	90044-68290	New Genuine Part
9046609001	90466-09001	Clip(For Fuel Vapor Feed Hose, No.1)

OEM	Part name	Category
23100-BZ220	Pump, Fuel	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
23210-BZ130	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
23232-BZ010	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
23265-BZ010	Bracket, Fuel Pump	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
23300-B4010	Filter Assy, Fuel	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
23300-BZ010	Filter Assy, Fuel	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77001-BZ260	Tank Assy, Fuel	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77001-BZ270	Tank Assy, Fuel	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77013-BZ100	Tube Sub-Assy, Fuel Tank Breather, No.2	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77019-BZ160	Tube Sub-Assy, Fuel Tank To Canister	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77108-B2010	Valve Sub-Assy, Fuel Tank Filler Check	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77141-BZ090	Reinforcement, Fuel Tank Flange, No.1	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77141-BZ120	Reinforcement, Fuel Tank Flange	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77141-BZ130	Reinforcement, Fuel Tank Flange	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77201-BZ170	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77203-BZ100	Tube Sub-Assy, Fuel Suction	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77204-BZ010	Tube, Fuel Tank Return	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77213-BZ160	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77213-BZ170	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77219-0K010	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77251-BZ210	Tube, Fuel Main	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77259-BZ010	Hose, Fuel	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77263-BZ160	Tube, Fuel Tank To Canister, No.3	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77269-B0010	Hose, Fuel Tank Breather	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77269-BZ010	Hose, Fuel Tank Breather	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77269-BZ170	Hose, Fuel Tank Breather	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77277-BZ012	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77285-B0010	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77286-B0010	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77293-BZ012	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77300-52030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77377-12050	Bracket, Fuel Lid Lock Control	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77380-0K010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77391-BZ010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77391-BZ040	Ring, Fuel Inlet Box	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77631-BZ061	Protector, Fuel Tank, Lower Center	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77651-BZ030	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77652-B2010	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
77652-BZ040	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
87268-BZ020	Protector, No.1	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90041-05481	Bolt, Fuel Tank	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90041-19608	New Genuine Part	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90041-20084	New Genuine Part	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90044-30291	Gasket(For Fuel Tank)	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90044-64770	New Genuine Part	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90044-67229	New Genuine Part	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90044-67244	Clamp Or Clip, Hose(For Water By-Pass Pipe)	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90044-68290	New Genuine Part	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
90466-09001	Clip(For Fuel Vapor Feed Hose, No.1)	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
96111-30440	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([12.2013 - ] FUEL TANK (1312- ))
