Search › Model › F654

F654

Toyota AVANZA · 2015 · 1,943 parts · 166 categories

1,943 items

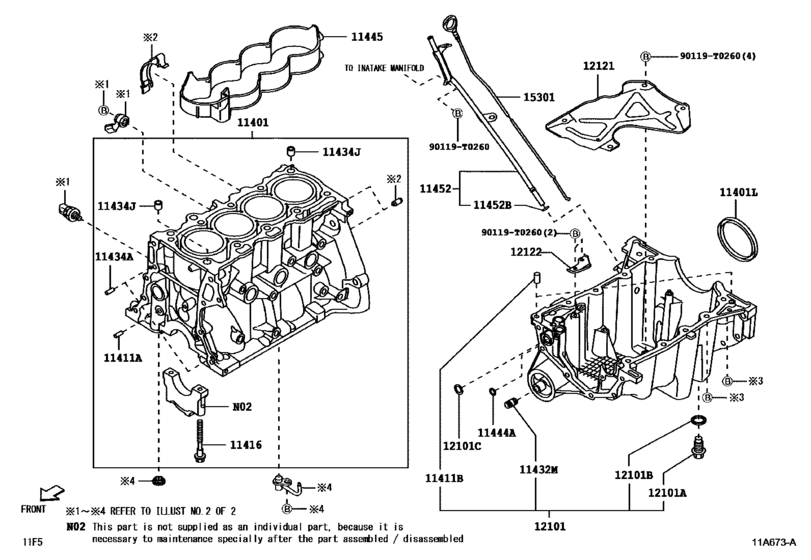

Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE) 24

#	OEM	Part name
11363	11363-BZ010	Cover, Flywheel Housing Side
11401	11410-B9020	Block Sub-Assy, Cylinder
11401	90311-T0074	Seal, Engine Rear Oil
11411	90250-10030	Pin, Straight(For Clutch Housing Set)
11411	90250-08120	Pin, Straight, No.1
11416	90910-02175	Bolt(For Crankshaft Bearing Cap Set)
11432	90404-19011	Union(For Oil Filter)
11434	90250-04097	Pin, Straight(For Camshaft Housing Rh)
11434	90253-13017	Pin, Ring W/head
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11444	90301-T0055	Ring, O
11445	11445-0Y020	Spacer, Cylinder Block Water Jacket
11452	11409-BZ100	Guide, Oil Level Gage
12101	12101-BZ090	Pan Sub-Assy, Oil
12101	90301-T0057	Ring, O(For Oil Pan)
12121	12121-BZ070	Plate, Oil Pan Baffle, No.1
12122	12122-BZ010	Plate, Oil Pan Baffle, No.2
15301	15301-BZ100	Gage Sub-Assy, Oil Level
15471	90430-T0023	Gasket No.1(For Oil Pan)
15708	15708-0Y040	Nozzle Sub-Assy, Oil, No.1
15797	90110-T0002	Bolt, Oil Nozzle Union
90105	90105-T0271	Bolt(For Camshaft Housing Set)
90105	90105-T0272	New Genuine Part
90119	90119-T0260	New Genuine Part

OEM	Part name	Category
11363-BZ010	Cover, Flywheel Housing Side	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
11409-BZ100	Guide, Oil Level Gage	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
11410-B9020	Block Sub-Assy, Cylinder	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
11445-0Y020	Spacer, Cylinder Block Water Jacket	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
12101-BZ090	Pan Sub-Assy, Oil	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
12121-BZ070	Plate, Oil Pan Baffle, No.1	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
12122-BZ010	Plate, Oil Pan Baffle, No.2	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
15301-BZ100	Gage Sub-Assy, Oil Level	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
15708-0Y040	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90105-T0271	Bolt(For Camshaft Housing Set)	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90105-T0272	New Genuine Part	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90110-T0002	Bolt, Oil Nozzle Union	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90119-T0260	New Genuine Part	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90250-04097	Pin, Straight(For Camshaft Housing Rh)	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90250-08120	Pin, Straight, No.1	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90250-10030	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90253-13017	Pin, Ring W/head	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90301-T0055	Ring, O	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90301-T0057	Ring, O(For Oil Pan)	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90311-T0074	Seal, Engine Rear Oil	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90404-19011	Union(For Oil Filter)	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90430-T0023	Gasket No.1(For Oil Pan)	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
90910-02175	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([07.2015 - ] (1507- )1NRVE,2NRVE)
