Search › Model › F653
F653

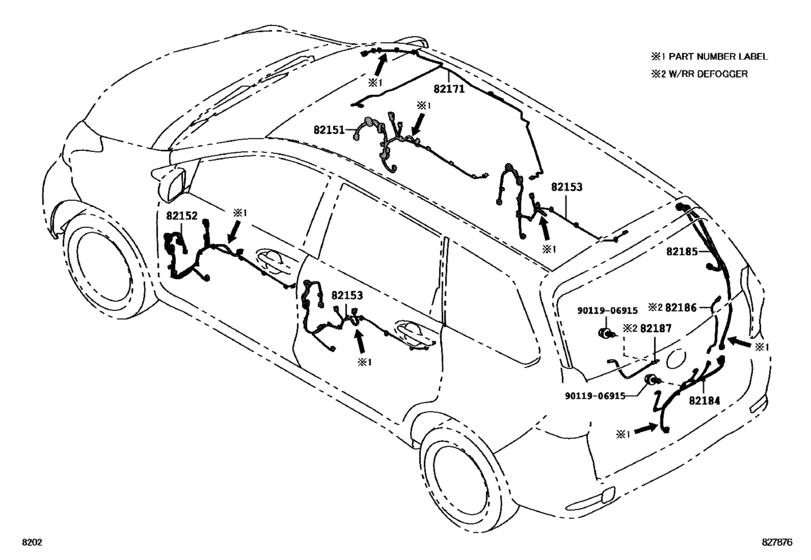

Wiring & Clamp ([11.2011 - ] DOOR & ROOF (1111- )) 7
| # | OEM | Part name |
|---|---|---|
| 82151 | 82151-BZB20 | Wire, Front Door, Rh |
| 82152 | 82152-BZC70 | Wire, Front Door, Lh |
| 82153 | 82153-BZ250 | Wire, Rear Door, No.1 |
| 82171 | 82171-BZ390 | Wire, Roof, No.1 |
| 82184 | 82184-BZ390 | Wire, Back Door, No.1 |
| 82185 | 82185-BZ240 | Wire, Back Door, No.2 |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82151-BZB20 | Wire, Front Door, Rh | Wiring & Clamp ([11.2011 - ] DOOR & ROOF (1111- )) |
| 82152-BZC70 | Wire, Front Door, Lh | Wiring & Clamp ([11.2011 - ] DOOR & ROOF (1111- )) |
| 82153-BZ250 | Wire, Rear Door, No.1 | Wiring & Clamp ([11.2011 - ] DOOR & ROOF (1111- )) |
| 82171-BZ390 | Wire, Roof, No.1 | Wiring & Clamp ([11.2011 - ] DOOR & ROOF (1111- )) |
| 82184-BZ390 | Wire, Back Door, No.1 | Wiring & Clamp ([11.2011 - ] DOOR & ROOF (1111- )) |
| 82185-BZ240 | Wire, Back Door, No.2 | Wiring & Clamp ([11.2011 - ] DOOR & ROOF (1111- )) |
| 90119-06915 | BOLT W-WASHER | Wiring & Clamp ([11.2011 - ] DOOR & ROOF (1111- )) |
