Search › Model › F653

F653

Toyota AVANZA · 2015 · 1,939 parts · 163 categories

1,939 items

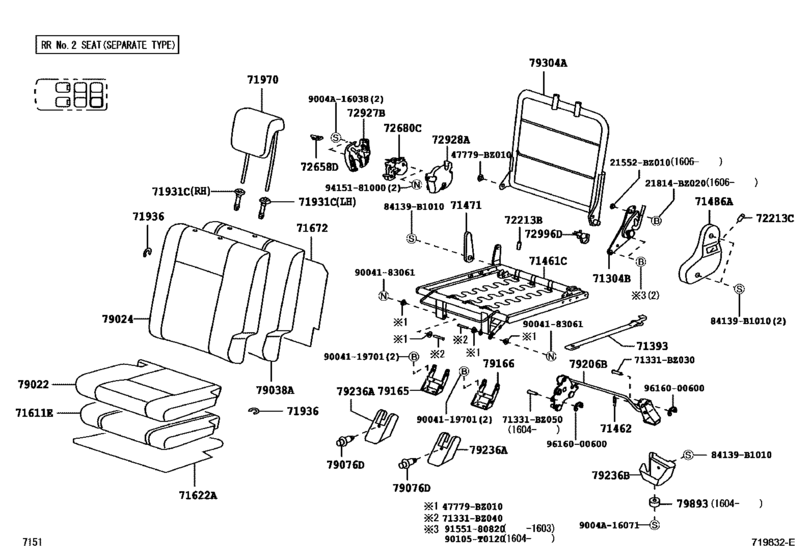

Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH) 44

#	OEM	Part name
21552	21552-BZ010	Bush Or Spacer, Rear Seat Back Hinge
71304	71304-BZ060	Hinge Sub-Assy, Rear No.2 Seat, Lh
71393	78980-BZ070-B0	Band, Rear Seat Cushion
71461	79370-BZ010	Spring, Rear Seat Cushion, Lh
71462	71462-BZ070	Spring, Rear Seat Cushion, No.2
71471	71485-BZ110-B0	Cover, Rear Seat Hinge
71486	79273-BZ042-B0	Cover, Rear Seat Hinge, No.2 Lh
71611	79036-BZ010	Pad, Rear No.2 Seat Cushion, A
71622	71622-BZ080	Pad, Rear Seat Cushion Silencer, B
71672	71672-BZ080	Pad, Rear Seat Back Silencer, B
71931	71930-BZ040-B0	Support Assy, Rear No.2 Seat Headrest
71931	71931-BZ030-B0	Support Assy, Rear No.2 Seat Headrest
71931	71930-BZ040-E1	Support Assy, Rear No.2 Seat Headrest
71931	71931-BZ030-E1	Support Assy, Rear No.2 Seat Headrest
71970	71940-BZA80-C1	Headrest Assy, Rear Seat
71970	71940-BZA90-E1	Headrest Assy, Rear Seat
72213	72213-BZ010	Knob, Seat Track Adjusting Handle, Rh
72658	72658-BZ020-B0	Knob, Rear Seat Lock Handle
72680	72680-BZ190	Lock Assy, Rear Seat Cushion, No.2 Lh
72927	79225-BZ080-B0	Cover, Rear Seat Cushion Under
72927	79952-BZ100-B0	Cover, Rear Seat Cushion Under
72928	79225-BZ070-B0	Cover, Rear Seat Cushion Under, No.2
72928	79952-BZ090-B0	Cover, Rear Seat Cushion Under, No.2
79022	79022-BZ030-C1	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-BZ020-E0	Cover Sub-Assy, No.2 Seat Cushion, Lh
79024	79024-BZ280-C1	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-BZ270-E0	Cover Sub-Assy, No.2 Seat Back, Lh
79038	79038-BZ110	Pad Sub-Assy, No.3 Seat Back, Lh
79076	90044-67579-B0	Clip, Deck Board
79076	90044-67579-C2	Clip(For Instrument Lower Cover)
79165	79318-BZ030	Bracket, No.3 Seat Leg, Rear Rh
79166	79328-BZ040	Bracket, No.3 Seat Leg, Rear Lh
79206	79208-BZ020	Leg Sub-Assy, No.2 Seat, Lh
79236	79236-BZ080-B0	Cover, No.2 Seat Leg
79236	79246-BZ070-B0	Cover, No.2 Seat Leg, Lh
79304	79304-BZ100	Frame Sub-Assy, No.3 Seat Back, Lh
79893	79893-BZ020	Cushion, Fold Seat Leg
84139	84139-B1010	New Genuine Part
90105	90105-T0120	BOLT FLANGE
9004119701	90041-19701	New Genuine Part
9004183061	90041-83061	New Genuine Part
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9415181000	94151-81000	NUT FLANGE
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
21552-BZ010	Bush Or Spacer, Rear Seat Back Hinge	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71304-BZ060	Hinge Sub-Assy, Rear No.2 Seat, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71462-BZ070	Spring, Rear Seat Cushion, No.2	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71485-BZ110-B0	Cover, Rear Seat Hinge	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71622-BZ080	Pad, Rear Seat Cushion Silencer, B	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71672-BZ080	Pad, Rear Seat Back Silencer, B	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71930-BZ040-B0	Support Assy, Rear No.2 Seat Headrest	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71930-BZ040-E1	Support Assy, Rear No.2 Seat Headrest	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71931-BZ030-B0	Support Assy, Rear No.2 Seat Headrest	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71931-BZ030-E1	Support Assy, Rear No.2 Seat Headrest	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71940-BZA80-C1	Headrest Assy, Rear Seat	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
71940-BZA90-E1	Headrest Assy, Rear Seat	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
72213-BZ010	Knob, Seat Track Adjusting Handle, Rh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
72658-BZ020-B0	Knob, Rear Seat Lock Handle	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
72680-BZ190	Lock Assy, Rear Seat Cushion, No.2 Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
78980-BZ070-B0	Band, Rear Seat Cushion	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79022-BZ020-E0	Cover Sub-Assy, No.2 Seat Cushion, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79022-BZ030-C1	Cover Sub-Assy, No.2 Seat Cushion, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79024-BZ270-E0	Cover Sub-Assy, No.2 Seat Back, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79024-BZ280-C1	Cover Sub-Assy, No.2 Seat Back, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79036-BZ010	Pad, Rear No.2 Seat Cushion, A	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79038-BZ110	Pad Sub-Assy, No.3 Seat Back, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79208-BZ020	Leg Sub-Assy, No.2 Seat, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79225-BZ070-B0	Cover, Rear Seat Cushion Under, No.2	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79225-BZ080-B0	Cover, Rear Seat Cushion Under	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79236-BZ080-B0	Cover, No.2 Seat Leg	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79246-BZ070-B0	Cover, No.2 Seat Leg, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79273-BZ042-B0	Cover, Rear Seat Hinge, No.2 Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79304-BZ100	Frame Sub-Assy, No.3 Seat Back, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79318-BZ030	Bracket, No.3 Seat Leg, Rear Rh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79328-BZ040	Bracket, No.3 Seat Leg, Rear Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79370-BZ010	Spring, Rear Seat Cushion, Lh	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79893-BZ020	Cushion, Fold Seat Leg	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79952-BZ090-B0	Cover, Rear Seat Cushion Under, No.2	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
79952-BZ100-B0	Cover, Rear Seat Cushion Under	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
84139-B1010	New Genuine Part	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90041-19701	New Genuine Part	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90041-83061	New Genuine Part	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90044-67579-B0	Clip, Deck Board	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90044-67579-C2	Clip(For Instrument Lower Cover)	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90105-T0120	BOLT FLANGE	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
94151-81000	NUT FLANGE	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Seat & Seat Track ([07.2015 - ] RR NO.2 SEAT(SEPERATE TYPE) (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)

Source: Public OEM parts-catalog data
Variants: 2 / 32
Category: 163
Collected: 2026-08-02
