Search › Model › F653

F653

Toyota AVANZA · 2015 · 1,939 parts · 163 categories
F653 ×

← Back to categories

1,939 items

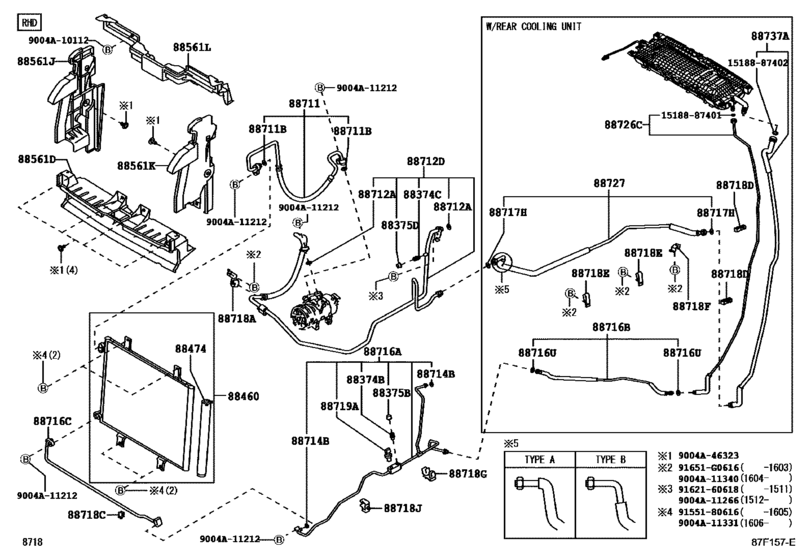

Heating & Air Conditioning - Cooler Piping ([07.2015 - ] (1507- )F653,654..RHD..MID,SPO,STD ; (1508- )LO,VB..SA) 37
#OEMPart name
9004 90041-09231 New Genuine Part
88374 88374-87601 Valve, Service, No.1
88375 88375-87603 Cap, Service Valve (For Cooler Pipe)
88375 88375-87601 Cap, Service Valve, No.1
88460 88460-BZ240 Condenser Assy, Cooler
88474 88474-B2010 Dryer, Cooler
88561 88561-BZ370 Grille, Air Inlet No.3
88561 88561-BZ390 Grille, Air Inlet No.1
88561 88561-BZ410 Grille, Air Inlet No.2
88561 88561-BZ280 Grille, Air Inlet No.4
88561 88561-BZ380 Grille, Air Inlet No.1
88561 88561-BZ400 Grille, Air Inlet No.2
88711 88711-BZ560 Hose, Cooler Refrigerant Discharge, No.1
88711 15188-87402 Ring, O
88712 15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)
88712 88712-BZ590 Hose, Suction
88712 88712-BZ591 Hose, Suction
88714 15188-87401 Ring, O
88716 88716-BZB30 Pipe, Cooler Refrigerant Liquid, A
88716 88716-BZ730 Pipe, Cooler Refrigerant Liquid, B
88716 88716-BZB70 Pipe, Cooler Refrigerant Liquid, C
88718 88718-BZ620 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-BZ280 Clamp(For Cooler Refrigerant Pipe), No.3
88718 88718-BZ720 Clamp(For Cooler Refrigerant Pipe), No.4
88718 88718-BZ030 Clamp(For Cooler Refrigerant Pipe), No.5
88718 88718-BZ040 Clamp(For Cooler Refrigerant Hose), No.1
88718 88718-BZ550 Clamp(For Cooler Refrigerant Hose), No.2
88718 88718-BZ660 Clamp(For Cooler Refrigerant Hose), No.4
88719 88719-B2010 Switch, Pressure No.1
88726 88716-BZ750 Pipe, Cooler Refrigerant Liquid, C
88727 88717-BZ400 Tube, Suction, No.2
88727 88717-BZ401 Tube, Suction, No.2
88737 88717-BZ300 Tube, Suction, A(For Cool Box)
91651 91651-G0616 BOLT WWASHER
9155180616 91551-80616 BOLT FLANGE
9162160618 91621-60618 New Genuine Part
9162160618 91651-B0620 New Genuine Part
