Search › Model › F653

F653

Toyota AVANZA · 2015 · 1,939 parts · 163 categories

1,939 items

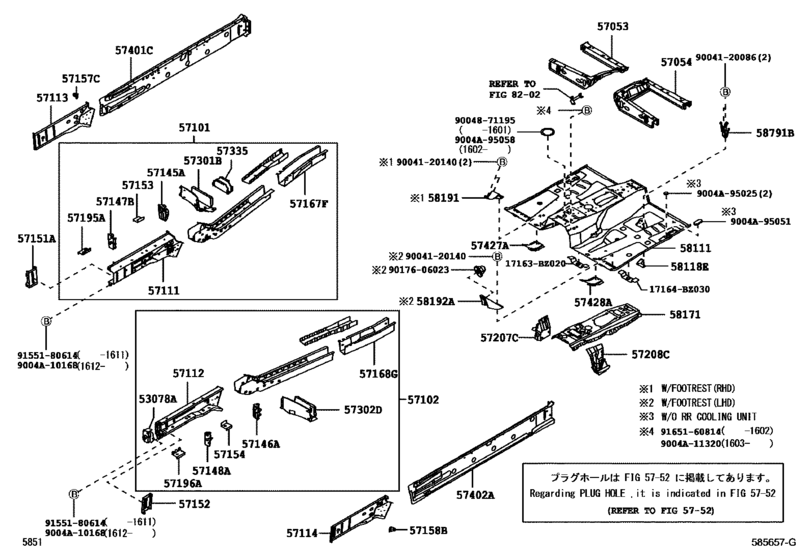

Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH) 46

#	OEM	Part name
17163	17163-BZ020	Bracket, Heat Insulator, No.1
17164	17164-BZ030	Bracket, Heat Insulator, No.2
53078	53078-BZ090	Extension Sub-Assy, Front Fender Apron, Lh
57053	57053-BZ030	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-BZ050	Reinforce Sub-Assy, Front Side Member, No.5
57101	57101-BZ530	Member Sub-Assy, Front Side, Rh
57102	57102-BZ550	Member Sub-Assy, Front Side, Lh
57111	57111-BZ210	Member, Front Side, Rh
57112	57112-BZ230	Member, Front Side, Lh
57113	57113-BZ020	Extension, Front Side Member, Rh
57114	57114-BZ030	Extension, Front Side Member, Lh
57145	51501-BZ060	Reinforcement, Front Side Member, Rear Rh
57146	51502-BZ070	Reinforcement, Front Side Member, Rear Lh
57147	57147-BZ010	Plate, Front Side Member, Rear Rh
57148	57148-BZ010	Plate, Front Side Member, Rear Lh
57151	57151-BZ110	Reinforcement, Front Side Member, No.1 Rh
57152	57152-BZ130	Reinforcement, Front Side Member, No.1 Lh
57153	57153-BZ020	Reinforcement, Front Side Member, No.2 Rh
57154	57154-BZ070	Reinforcement, Front Side Member, No.2 Lh
57157	57157-BZ010	Bracket, Flexible Hose, Front Rh
57158	57158-BZ010	Bracket, Flexible Hose, Front Lh
57167	57167-BZ011	Reinforcement, Front Crossmember Side, Rh
57168	57168-BZ110	Member, Front Floor, Lh
57195	57195-BZ050	Reinforcement, Front Side Member, Front Rh
57196	57196-BZ030	Reinforcement, Front Side Member, Front Lh
57207	57207-BZ050	Bracket Sub-Assy, Engine Rear Mounting, Rh
57208	57208-BZ060	Bracket Sub-Assy, Engine Rear Mounting, Lh
57301	57301-BZ090	Outrigger Sub-Assy, No.1 Rh
57302	57302-BZ090	Outrigger Sub-Assy, No.1 Lh
57335	57335-BZ030	Outrigger, No.2 Front Rh
57401	57401-BZ310	Member Sub-Assy, Floor Side, Inner Rh
57402	57402-BZ330	Member Sub-Assy, Floor Side, Inner Lh
57427	57427-BZ070	Reinforcement, Front Floor, No.3 Rh
57428	57428-BZ020	Reinforcement, Front Floor, No.3 Lh
58111	58111-BZ080	Pan, Front Floor
58118	58793-BZ010	Bracket, Jack Set
58171	58171-BZ030	Reinforcement, Parking Brake Base
58191	58191-BZ010	Footrest, Front Floor
58791	58791-BZ060	Carrier, Jack
9004120086	90041-20086	New Genuine Part
9004120140	90041-20140	New Genuine Part
9004871195	90048-71195	New Genuine Part
9017606023	90176-06023	NUT CAP
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9165160814	91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814	91651-B0814	Bolt with washer

OEM	Part name	Category
17163-BZ020	Bracket, Heat Insulator, No.1	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
17164-BZ030	Bracket, Heat Insulator, No.2	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
51501-BZ060	Reinforcement, Front Side Member, Rear Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
51502-BZ070	Reinforcement, Front Side Member, Rear Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
53078-BZ090	Extension Sub-Assy, Front Fender Apron, Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57053-BZ030	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57054-BZ050	Reinforce Sub-Assy, Front Side Member, No.5	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57101-BZ530	Member Sub-Assy, Front Side, Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57102-BZ550	Member Sub-Assy, Front Side, Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57111-BZ210	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57112-BZ230	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57113-BZ020	Extension, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57114-BZ030	Extension, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57147-BZ010	Plate, Front Side Member, Rear Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57148-BZ010	Plate, Front Side Member, Rear Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57151-BZ110	Reinforcement, Front Side Member, No.1 Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57152-BZ130	Reinforcement, Front Side Member, No.1 Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57153-BZ020	Reinforcement, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57154-BZ070	Reinforcement, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57157-BZ010	Bracket, Flexible Hose, Front Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57158-BZ010	Bracket, Flexible Hose, Front Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57167-BZ011	Reinforcement, Front Crossmember Side, Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57168-BZ110	Member, Front Floor, Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57195-BZ050	Reinforcement, Front Side Member, Front Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57196-BZ030	Reinforcement, Front Side Member, Front Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57207-BZ050	Bracket Sub-Assy, Engine Rear Mounting, Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57208-BZ060	Bracket Sub-Assy, Engine Rear Mounting, Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57301-BZ090	Outrigger Sub-Assy, No.1 Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57302-BZ090	Outrigger Sub-Assy, No.1 Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57335-BZ030	Outrigger, No.2 Front Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57401-BZ310	Member Sub-Assy, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57402-BZ330	Member Sub-Assy, Floor Side, Inner Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57427-BZ070	Reinforcement, Front Floor, No.3 Rh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
57428-BZ020	Reinforcement, Front Floor, No.3 Lh	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
58111-BZ080	Pan, Front Floor	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
58171-BZ030	Reinforcement, Parking Brake Base	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
58191-BZ010	Footrest, Front Floor	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
58791-BZ060	Carrier, Jack	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
58793-BZ010	Bracket, Jack Set	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90041-20086	New Genuine Part	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90041-20140	New Genuine Part	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90048-71195	New Genuine Part	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
90176-06023	NUT CAP	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
91651-B0814	Bolt with washer	Front Floor Panel & Front Floor Member ([07.2015 - ] (1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,S A,TH)
