Search › Model › F653

F653

Toyota AVANZA · 2015 · 1,939 parts · 163 categories

1,939 items

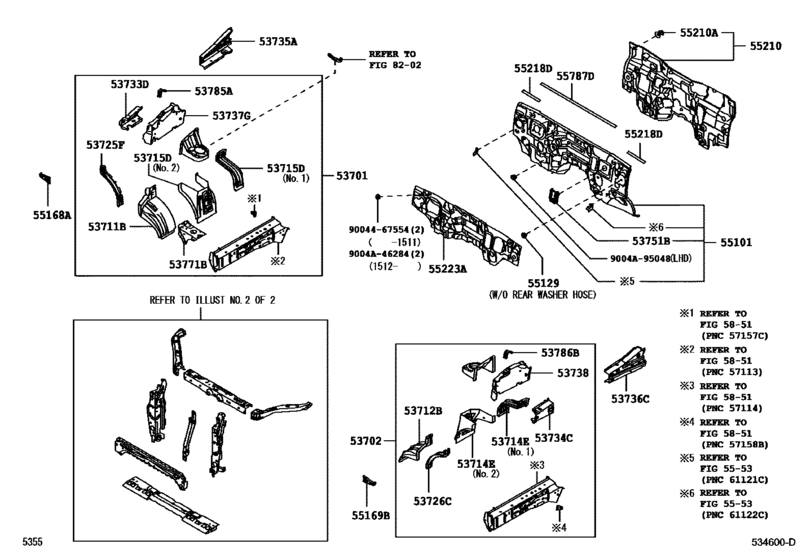

Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654) 43

#	OEM	Part name
52021	52021-BZ220	Reinforcement Sub-Assy, Front Bumper
53028	53028-BZ140	Support Sub-Assy, Radiator, Lower
53201	53201-BZ290	Support Sub-Assy, Radiator
53202	53202-BZ100	Support Sub-Assy, Radiator, Rh
53203	53203-BZ170	Support Sub-Assy, Radiator, Lh
53205	53205-BZ160	Support Sub-Assy, Radiator, Upper
53208	53208-BZ110	Support Sub-Assy, Hood Lock
53213	53213-BZ120	Support, Radiator, Upper Rh
53214	53214-BZ080	Support, Radiator, Upper Lh
53381	53381-BZ010	Clip(For Hood To Radiator Support Seal)
53701	53701-BZ380	Apron Sub-Assy, Front Fender, Rh
53702	53702-BZ200	Apron Sub-Assy, Front Fender, Lh
53711	53711-BZ160	Apron, Front Fender, Front Rh
53712	53712-BZ170	Apron, Front Fender, Front Lh
53714	53714-BZ010	Apron, Front Fender, Rear Lh - FENDER APRON SPLASH, LH
53714	53718-BZ100	Apron, Front Fender, Rear Lh
53714	53718-BZ101	Apron, Front Fender, Rear Lh
53715	53713-BZ010	Apron, Fender Side, Rh - FRONT FENDER REAR, RH
53715	53717-BZ100	Apron, Fender Side, Rh
53725	53725-BZ020	Apron, Front Fender No.2 Side, Rh
53726	53726-BZ020	Apron, Front Fender No.2 Side, Lh
53733	53733-BZ070	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-BZ070	Member, Front Apron To Cowl Side, Lower Front Lh
53735	57023-BZ020	Member, Front Apron To Cowl Side, Lower Rh
53736	57024-BZ010	Member, Front Apron To Cowl Side, Lower Lh
53737	53737-BZ080	Plate, Front Apron To Cowl Side Member, Rh
53738	53738-BZ080	Plate, Front Apron To Cowl Side Member, Lh
53751	53751-BZ140	Bracket, Charcoal Canister Mounting
53771	53703-BZ080	Support, Battery Carrier, Rh
53785	53785-BZ010	Gusset, Front Fender Apron, Upper Rh
55101	55101-BZL20	Panel Sub-Assy, Dash
55168	55168-BZ150	Bracket, Front Fender Mounting, Rh
55168	55168-BZ151	Bracket, Front Fender Mounting, Rh
55169	55169-BZ120	Bracket, Front Fender Mounting, Lh
55210	55210-BZ450	Insulator Assy, Dash Panel
55210	90467-11122	Clip
55218	55259-BZ010	Seal, Dash Panel
55223	55223-BZ130	Insulator, Dash Panel, Outer
55787	55787-BZ010	Insulator, Cowl Top Panel, No.1
9004105489	90041-05489	New Genuine Part
9004467554	90044-67554	New Genuine Part
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)

OEM	Part name	Category
52021-BZ220	Reinforcement Sub-Assy, Front Bumper	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53028-BZ140	Support Sub-Assy, Radiator, Lower	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53201-BZ290	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53202-BZ100	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53203-BZ170	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53205-BZ160	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53208-BZ110	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53213-BZ120	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53214-BZ080	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53381-BZ010	Clip(For Hood To Radiator Support Seal)	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53701-BZ380	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53702-BZ200	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53703-BZ080	Support, Battery Carrier, Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53711-BZ160	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53712-BZ170	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53713-BZ010	Apron, Fender Side, Rh - FRONT FENDER REAR, RH	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53714-BZ010	Apron, Front Fender, Rear Lh - FENDER APRON SPLASH, LH	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53717-BZ100	Apron, Fender Side, Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53718-BZ100	Apron, Front Fender, Rear Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53718-BZ101	Apron, Front Fender, Rear Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53725-BZ020	Apron, Front Fender No.2 Side, Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53726-BZ020	Apron, Front Fender No.2 Side, Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53733-BZ070	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53734-BZ070	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53737-BZ080	Plate, Front Apron To Cowl Side Member, Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53738-BZ080	Plate, Front Apron To Cowl Side Member, Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53751-BZ140	Bracket, Charcoal Canister Mounting	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
53785-BZ010	Gusset, Front Fender Apron, Upper Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
55101-BZL20	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
55168-BZ150	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
55168-BZ151	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
55169-BZ120	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
55210-BZ450	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
55223-BZ130	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
55259-BZ010	Seal, Dash Panel	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
55787-BZ010	Insulator, Cowl Top Panel, No.1	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
57023-BZ020	Member, Front Apron To Cowl Side, Lower Rh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
57024-BZ010	Member, Front Apron To Cowl Side, Lower Lh	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
90041-05489	New Genuine Part	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
90044-67554	New Genuine Part	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
90467-11122	Clip	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Front Fender Apron & Dash Panel ([07.2015 - ] (1507- )F653,654)

Source: Public OEM parts-catalog data
Variants: 2 / 32
Category: 163
Collected: 2026-08-02
