F653

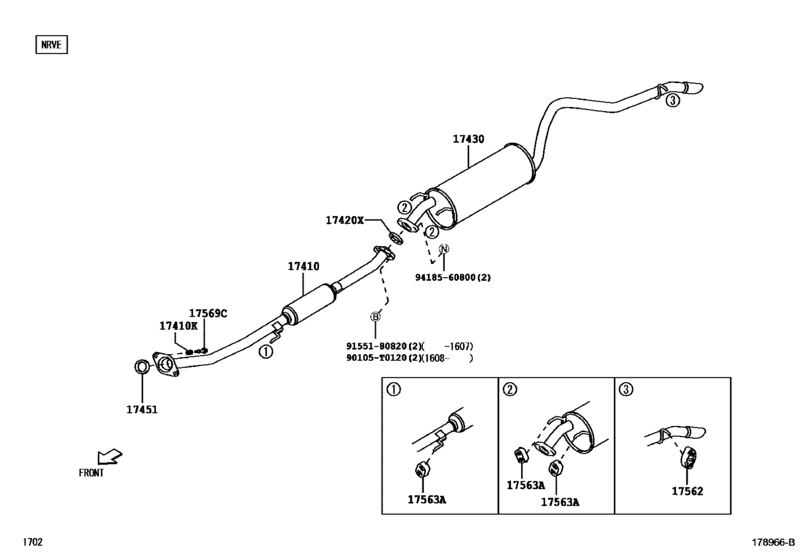

Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) 11
| # | OEM | Part name |
|---|---|---|
| 17410 | 17410-BZ640 | Pipe Assy, Exhaust, Front |
| 17410 | 17152-B1010 | Spring, Exhaust Pipe |
| 17420 | 17451-BZ010 | Gasket, Exhaust Pipe |
| 17430 | 17430-BZ340 | Pipe Assy, Exhaust, Tail |
| 17451 | 17451-21030 | Gasket, Exhaust Pipe |
| 17562 | 17567-87703 | Support, Exhaust Pipe, No.2 |
| 17563 | 17567-BZ030 | Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.1 |
| 17569 | 17569-97501 | Bolt Or Ring, Exhaust Pipe Front (For Front) |
| 90105 | 90105-T0120 | BOLT FLANGE |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| 9418560800 | 94185-60800 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 17152-B1010 | Spring, Exhaust Pipe | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 17410-BZ640 | Pipe Assy, Exhaust, Front | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 17430-BZ340 | Pipe Assy, Exhaust, Tail | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 17451-21030 | Gasket, Exhaust Pipe | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 17451-BZ010 | Gasket, Exhaust Pipe | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 17567-87703 | Support, Exhaust Pipe, No.2 | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 17567-BZ030 | Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.1 | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 17569-97501 | Bolt Or Ring, Exhaust Pipe Front (For Front) | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 90105-T0120 | BOLT FLANGE | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
| 94185-60800 | NUT | Exhaust Pipe ([07.2015 - ] (1507- )1NRVE,2NRVE) |
