F653

Toyota AVANZA · 2015 · 1,939 parts · 163 categories

1,939 items

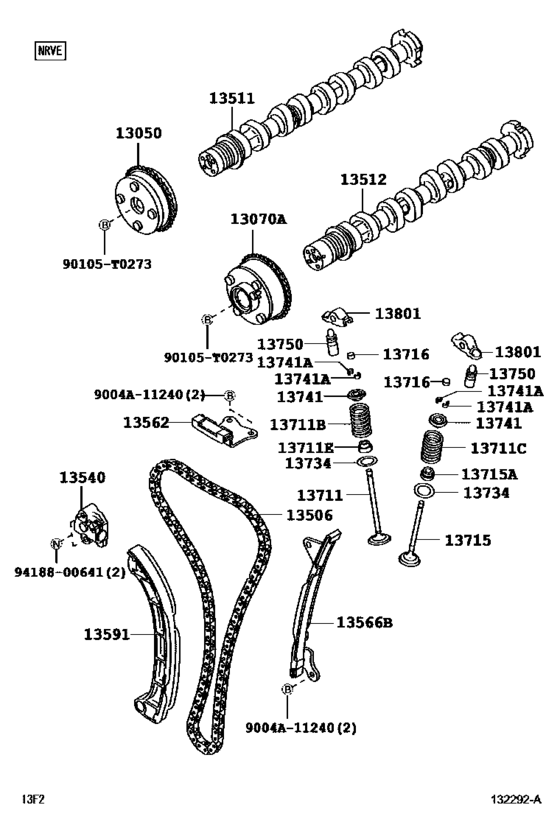

Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE) 22

#	OEM	Part name
13050	13050-0Y020	Gear Assy, Camshaft Timing
13070	13070-0Y020	Gear Assy, Camshaft Timing Exhaust
13506	13506-0Y040	Chain Sub-Assy
13511	13501-BZ040	Camshaft
13512	13502-BZ030	Camshaft, No.2
13540	13540-0Y010	Tensioner Assy, Chain, No.1
13562	13562-0Y020	Damper, Chain Vibration, No.2
13566	13566-0Y010	Guide, Timing Chain
13591	13591-0Y010	Arm, Timing Chain Tension
13711	13711-0Y020	Valve, Intake
13711	90501-T0045	Spring, Compression(For Inner)
13711	90913-T2004	Seal, Intake Valve Stem Oil
13711	90080-31084	Seal Or Ring, O(For Valve Stem Oil)
13715	13715-0Y020	Valve, Exhaust
13715	90913-T2005	Seal, Exhaust Valve Stem Oil
13715	90080-31085	Seal Or Ring, O(For Valve Stem Oil)
13716	13716-0C020	Cap, Valve Stem
13734	13734-0C010	Seat, Valve Spring
13741	13741-0Y010	Retainer, Valve Spring
13741	90913-03028	Lock, Valve Spring Retainer
13750	13750-0C040	Adjuster Assy, Valve Lash
13801	13801-0C030	Arm Sub-Assy, Valve Rocker, No.1

OEM	Part name	Category
13050-0Y020	Gear Assy, Camshaft Timing	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13070-0Y020	Gear Assy, Camshaft Timing Exhaust	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13501-BZ040	Camshaft	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13502-BZ030	Camshaft, No.2	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13506-0Y040	Chain Sub-Assy	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13540-0Y010	Tensioner Assy, Chain, No.1	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13562-0Y020	Damper, Chain Vibration, No.2	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13566-0Y010	Guide, Timing Chain	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13591-0Y010	Arm, Timing Chain Tension	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13711-0Y020	Valve, Intake	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13715-0Y020	Valve, Exhaust	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13716-0C020	Cap, Valve Stem	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13734-0C010	Seat, Valve Spring	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13741-0Y010	Retainer, Valve Spring	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13750-0C040	Adjuster Assy, Valve Lash	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
13801-0C030	Arm Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
90080-31084	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
90080-31085	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
90501-T0045	Spring, Compression(For Inner)	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
90913-03028	Lock, Valve Spring Retainer	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
90913-T2004	Seal, Intake Valve Stem Oil	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
90913-T2005	Seal, Exhaust Valve Stem Oil	Camshaft & Valve ([07.2015 - ] (1507- )1NRVE,2NRVE)
