Search › Model › F653

F653

Toyota AVANZA · 2015 · 1,939 parts · 163 categories

1,939 items

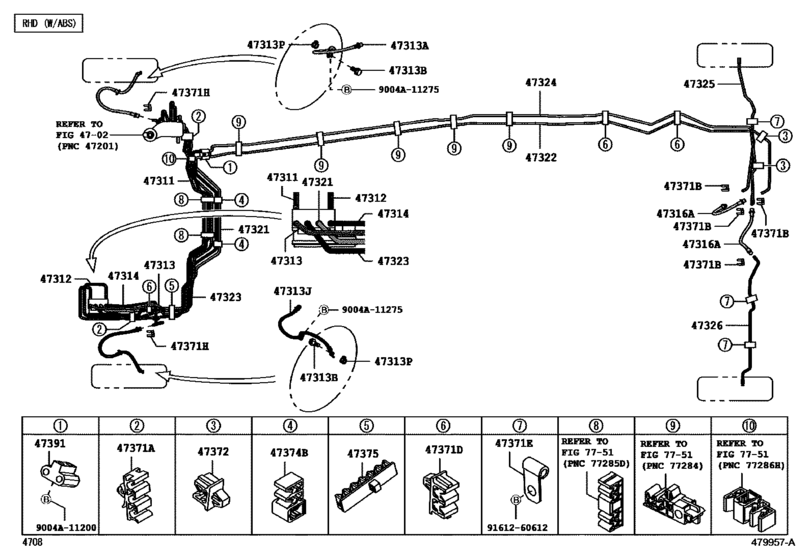

Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD) 22

#	OEM	Part name
47311	47311-BZ450	Tube, Front Brake, No.1
47312	47312-BZ480	Tube, Front Brake, No.2
47313	47313-BZ440	Tube, Front Brake, No.3
47313	47330-BZ020	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-BZ500	Tube, Front Brake, No.4
47321	47321-BZ260	Tube, Rear Brake, No.1
47322	47322-BZ280	Tube, Rear Brake, No.2
47323	47323-BZ190	Tube, Rear Brake, No.3
47324	47324-BZ400	Tube, Rear Brake, No.4
47325	47325-BZ190	Tube, Rear Brake, No.5
47326	47326-BZ220	Tube, Rear Brake, No.6
47371	90044-64742	Clamp (For Front Drive Vacuum Tube)
47371	90044-65441	Clamp, Brake Tube, No.6
47371	90044-64713	Clamp, Brake Tube, No.3
47371	96221-30705	Clamp, Brake Tube, No.4
47374	90044-64710	Clamp, Brake Tube, No.8
47375	90044-64596	Clamp, Brake Tube, No.7 - BRAKE TUBE, NO.10
47391	44589-B2010	Way, No.1(For Brake Actuator)
9161260612	91612-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161260612	91611-G0612	Bolt

OEM	Part name	Category
44589-B2010	Way, No.1(For Brake Actuator)	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47311-BZ450	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47312-BZ480	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47313-BZ440	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47314-BZ500	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47321-BZ260	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47322-BZ280	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47323-BZ190	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47324-BZ400	Tube, Rear Brake, No.4	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47325-BZ190	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47326-BZ220	Tube, Rear Brake, No.6	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47330-BZ020	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
90044-64596	Clamp, Brake Tube, No.7 - BRAKE TUBE, NO.10	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
90044-64710	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
90044-64713	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
90044-64742	Clamp (For Front Drive Vacuum Tube)	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
90044-65441	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
91611-G0612	Bolt	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
91612-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
96221-30705	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([07.2015 - ] RHD W/ABS (1507- )F653,654..RHD)
