F653

Toyota AVANZA · 2015 · 1,939 parts · 163 categories

1,939 items

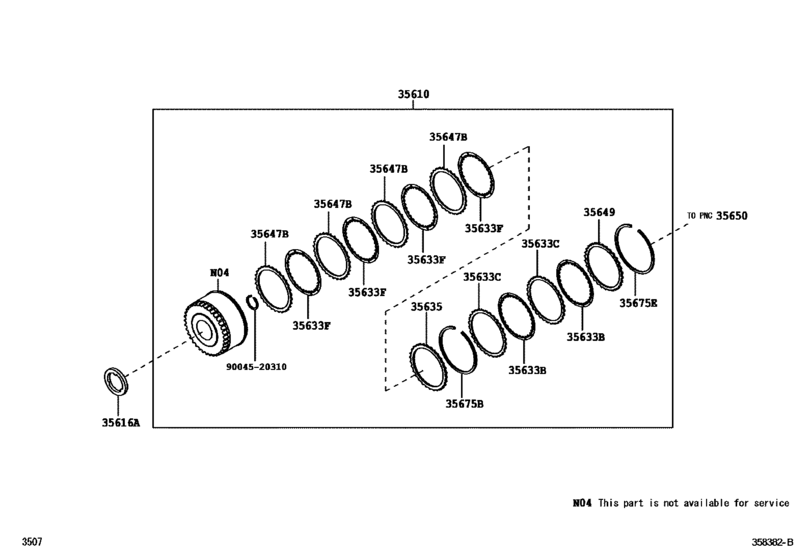

Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT) 20

#	OEM	Part name
35610	35610-97204	Clutch Assy, Front Multiple Disc
35610	35610-B1030	Clutch Assy, Front Multiple Disc
35616	90043-74043	Bearing, Thrust Needle Roller (For Front Clutch Drum)
35616	90043-74044	Bearing, Thrust Needle Roller (For Front Clutch Drum)
35616	90043-74045	Bearing, Thrust Needle Roller (For Front Clutch Drum)
35633	35633-97205	Disc, Clutch (For Forward Multiple Disc Clutch)
35633	35633-B1010	Disc, Clutch (For Forward Multiple Disc Clutch)
35633	35634-97206	Disc, Clutch (For Direct Multiple Disc Clutch)
35633	35667-97206	Disc, Clutch (For Front Clutch)
35635	35635-97201	Flange, Forward Clutch
35647	35647-97204	Plate, Clutch, No.2
35649	35675-97201	Flange, Reverse Clutch
35650	35650-B1020	Clutch Assy, Rear Multiple Disc
35675	90045-21164	Ring, Hole Snap (For Forward Clutch Flange)
35675	90045-21166	Ring, Hole Snap (For Forward Clutch Flange)
35675	90045-21167	Ring, Hole Snap (For Forward Clutch Flange)
35675	90045-21168	Ring, Hole Snap (For Forward Clutch Flange)
35675	90045-21169	Ring, Hole Snap (For Forward Clutch Flange)
35675	90045-21165	Ring, Hole Snap (For Rear Clutch Flange)
9004520310	90045-20310	New Genuine Part

OEM	Part name	Category
35610-97204	Clutch Assy, Front Multiple Disc	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35610-B1030	Clutch Assy, Front Multiple Disc	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35633-97205	Disc, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35633-B1010	Disc, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35634-97206	Disc, Clutch (For Direct Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35635-97201	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35647-97204	Plate, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35650-B1020	Clutch Assy, Rear Multiple Disc	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35667-97206	Disc, Clutch (For Front Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
35675-97201	Flange, Reverse Clutch	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90043-74043	Bearing, Thrust Needle Roller (For Front Clutch Drum)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90043-74044	Bearing, Thrust Needle Roller (For Front Clutch Drum)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90043-74045	Bearing, Thrust Needle Roller (For Front Clutch Drum)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90045-20310	New Genuine Part	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90045-21164	Ring, Hole Snap (For Forward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90045-21165	Ring, Hole Snap (For Rear Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90045-21166	Ring, Hole Snap (For Forward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90045-21167	Ring, Hole Snap (For Forward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90045-21168	Ring, Hole Snap (For Forward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
90045-21169	Ring, Hole Snap (For Forward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([11.2011 - ] A4Q-D1 (1111- )4AT)
