F653

Toyota AVANZA · 2015 · 1,939 parts · 163 categories

← Back to categories

1,939 items

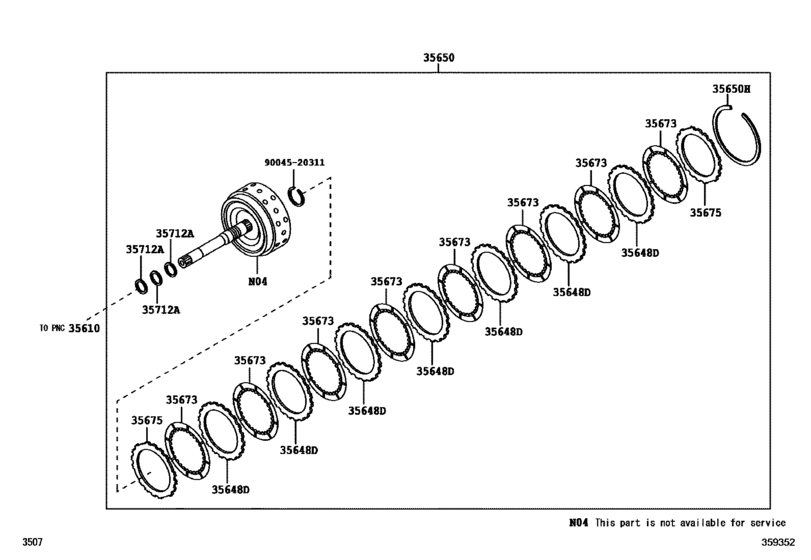

Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT) 12

#	OEM	Part name
35610	35610-97204	Clutch Assy, Front Multiple Disc
35610	35610-B1030	Clutch Assy, Front Multiple Disc
35648	35648-97205	Plate, Clutch, No.3
35650	35650-B1020	Clutch Assy, Rear Multiple Disc
35650	90045-21170	Ring, Hole Snap (For Rear Multiple Disc Cluthc)
35650	90045-21171	Ring, Hole Snap (For Rear Multiple Disc Cluthc)
35650	90045-21172	Ring, Hole Snap (For Rear Multiple Disc Cluthc)
35650	90045-21173	Ring, Hole Snap (For Rear Multiple Disc Cluthc)
35673	35677-B1011	Disc, Rear Clutch
35675	35689-B1010	Plate, Clutch, No.3
35712	35712-97201	Ring, Input Shaft Oil Seal
9004520311	90045-20311	New Genuine Part

OEM	Part name	Category
35610-97204	Clutch Assy, Front Multiple Disc	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
35610-B1030	Clutch Assy, Front Multiple Disc	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
35648-97205	Plate, Clutch, No.3	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
35650-B1020	Clutch Assy, Rear Multiple Disc	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
35677-B1011	Disc, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
35689-B1010	Plate, Clutch, No.3	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
35712-97201	Ring, Input Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
90045-20311	New Genuine Part	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
90045-21170	Ring, Hole Snap (For Rear Multiple Disc Cluthc)	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
90045-21171	Ring, Hole Snap (For Rear Multiple Disc Cluthc)	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
90045-21172	Ring, Hole Snap (For Rear Multiple Disc Cluthc)	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)
90045-21173	Ring, Hole Snap (For Rear Multiple Disc Cluthc)	Brake Band & Multiple Disc Clutch (Atm) ([07.2015 - ] (1507- )F653,654..4AT)

Source: Public OEM parts-catalog data
Variants: 2 / 32
Category: 163
Collected: 2026-08-02
