F653

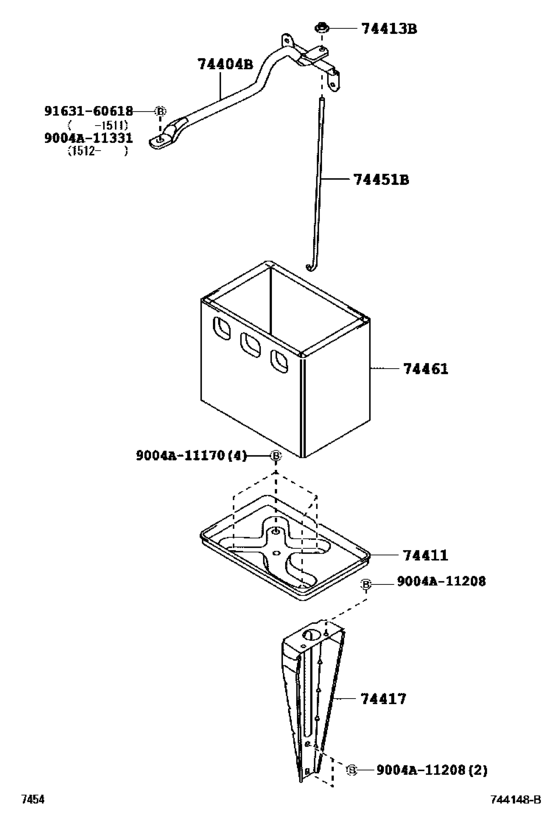

Battery Carrier ([07.2015 - ] (1507- )F653,654) 8
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-BZ100 | Clamp Sub-Assy, Battery |
| 74411 | 74411-BZ090 | Carrier, Battery |
| 74413 | 90041-79111 | Nut, Wing (For Battery Clamp Bolt) |
| 74417 | 74417-BZ070 | Bracket, Battery Carrier |
| 74451 | 74451-BZ070 | Bolt, Battery Clamp |
| 74461 | 74405-BZ080 | Cover, Battery |
| 9163160618 | 91631-60618 | BOLT WWASHER |
| 9163160618 | 91631-B0618 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 74404-BZ100 | Clamp Sub-Assy, Battery | Battery Carrier ([07.2015 - ] (1507- )F653,654) |
| 74405-BZ080 | Cover, Battery | Battery Carrier ([07.2015 - ] (1507- )F653,654) |
| 74411-BZ090 | Carrier, Battery | Battery Carrier ([07.2015 - ] (1507- )F653,654) |
| 74417-BZ070 | Bracket, Battery Carrier | Battery Carrier ([07.2015 - ] (1507- )F653,654) |
| 74451-BZ070 | Bolt, Battery Clamp | Battery Carrier ([07.2015 - ] (1507- )F653,654) |
| 90041-79111 | Nut, Wing (For Battery Clamp Bolt) | Battery Carrier ([07.2015 - ] (1507- )F653,654) |
| 91631-60618 | BOLT WWASHER | Battery Carrier ([07.2015 - ] (1507- )F653,654) |
| 91631-B0618 | BOLT WWASHER | Battery Carrier ([07.2015 - ] (1507- )F653,654) |
