Search › Model › F652
F652

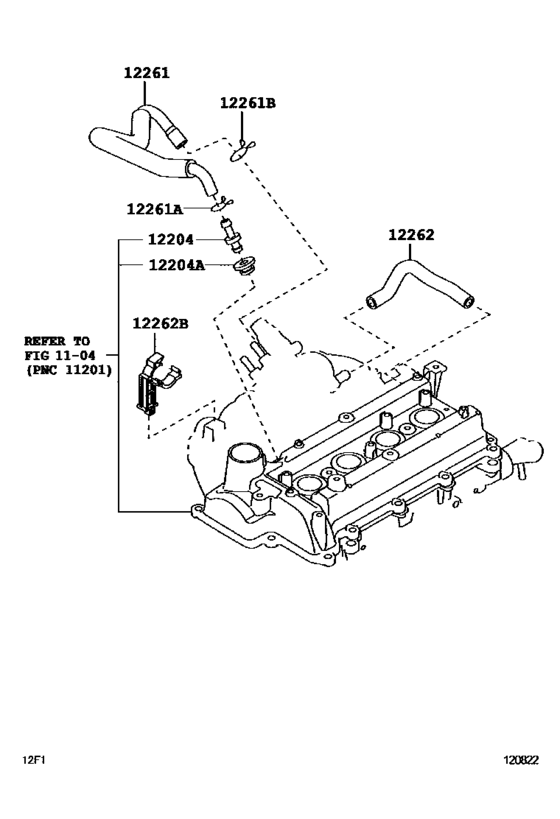

Ventilation Hose ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-97401 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-BZ140 | Hose, Ventilation |
| 12261 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-18003 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-BZ010 | Hose, Ventilation, No.2 |
| 12262 | 90044-64813 | Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-97401 | Valve Sub-Assy, Ventilation | Ventilation Hose ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 12261-BZ140 | Hose, Ventilation | Ventilation Hose ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 12262-BZ010 | Hose, Ventilation, No.2 | Ventilation Hose ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 90044-64813 | Clamp(For Ventilation Hose) | Ventilation Hose ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 90467-18003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
