F652

Toyota AVANZA · 2011 · 2,042 parts · 165 categories

2,042 items

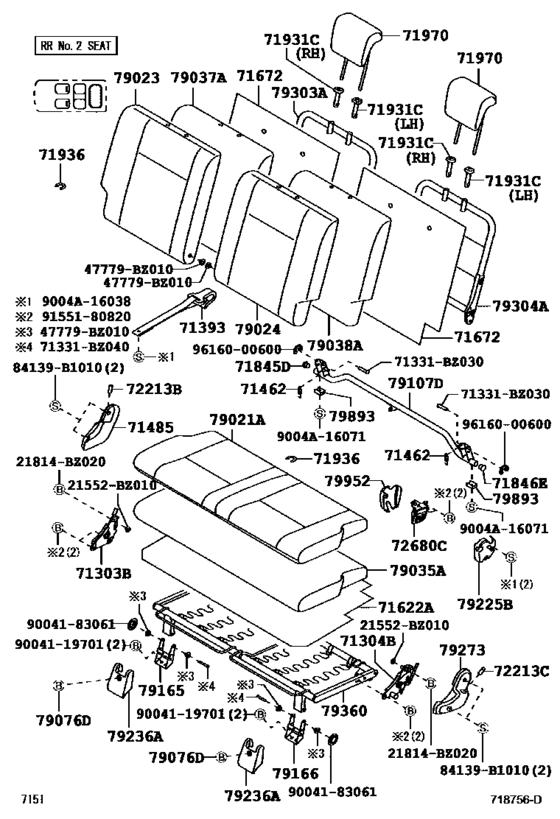

Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH) 38

#	OEM	Part name
21552	21552-BZ010	Bush Or Spacer, Rear Seat Back Hinge
71303	71303-BZ050	Hinge Sub-Assy, Rear No.2 Seat, Rh
71304	71304-BZ040	Hinge Sub-Assy, Rear No.2 Seat, Lh
71393	78980-BZ070-B0	Band, Rear Seat Cushion
71462	71462-BZ070	Spring, Rear Seat Cushion, No.2
71485	71485-BZ060-B0	Cover, Rear Seat Hinge
71622	71622-BZ070	Pad, Rear Seat Cushion Silencer, B
71672	71672-BZ080	Pad, Rear Seat Back Silencer, B
71845	71845-BZ010	Cap, Rear Seat Cover, Rh
71931	71930-BZ040-E0	Support Assy, Rear No.2 Seat Headrest
71931	71931-BZ030-E0	Support Assy, Rear No.2 Seat Headrest
71970	71940-BZ710-E1	Headrest Assy, Rear Seat
72213	72213-BZ010	Knob, Seat Track Adjusting Handle, Rh
72680	72680-BZ070	Lock Assy, Rear Seat Cushion, Lh
79021	79021-BZ542-E1	Cover Sub-Assy, No.2 Seat Cushion
79023	79023-BZ501-E1	Cover Sub-Assy, No.2 Seat Back, Rh
79024	79024-BZ031-E1	Cover Sub-Assy, No.2 Seat Back, Lh
79035	79035-BZ150	Pad Sub-Assy, No.3 Seat Cushion, Rh
79037	79037-BZ130	Pad Sub-Assy, No.3 Seat Back, Rh
79038	79038-BZ030	Pad Sub-Assy, No.3 Seat Back, Lh
79076	90044-67579-B0	Clip, Deck Board
79107	79206-BZ050	Leg Sub-Assy, No.2 Seat, Rear
79165	79318-BZ020	Bracket, No.3 Seat Leg, Rear Rh
79166	79328-BZ020	Bracket, No.3 Seat Leg, Rear Lh
79225	79225-BZ040-B0	Carpet, Rear No.2 Seat Cushion, Lh
79236	79236-BZ070-B0	Cover, No.2 Seat Leg
79273	79273-BZ040-B0	Cover, No.2 Seat Hinge
79303	79303-BZ170	Frame Sub-Assy, No.3 Seat Back, Rh
79304	79304-BZ080	Frame Sub-Assy, No.3 Seat Back, Lh
79360	79360-BZ040	Spring Assy, No.3 Seat Cushion
79360	79360-BZ041	Spring Assy, No.3 Seat Cushion
79893	79893-BZ010	Cushion, Fold Seat Leg
79952	79952-BZ040-B0	Cover, No.2 Seat Hinge, No.2
84139	84139-B1010	New Genuine Part
9004119701	90041-19701	New Genuine Part
9004183061	90041-83061	New Genuine Part
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
21552-BZ010	Bush Or Spacer, Rear Seat Back Hinge	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71303-BZ050	Hinge Sub-Assy, Rear No.2 Seat, Rh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71304-BZ040	Hinge Sub-Assy, Rear No.2 Seat, Lh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71462-BZ070	Spring, Rear Seat Cushion, No.2	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71485-BZ060-B0	Cover, Rear Seat Hinge	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71622-BZ070	Pad, Rear Seat Cushion Silencer, B	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71672-BZ080	Pad, Rear Seat Back Silencer, B	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71845-BZ010	Cap, Rear Seat Cover, Rh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71930-BZ040-E0	Support Assy, Rear No.2 Seat Headrest	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71931-BZ030-E0	Support Assy, Rear No.2 Seat Headrest	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
71940-BZ710-E1	Headrest Assy, Rear Seat	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
72213-BZ010	Knob, Seat Track Adjusting Handle, Rh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
72680-BZ070	Lock Assy, Rear Seat Cushion, Lh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
78980-BZ070-B0	Band, Rear Seat Cushion	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79021-BZ542-E1	Cover Sub-Assy, No.2 Seat Cushion	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79023-BZ501-E1	Cover Sub-Assy, No.2 Seat Back, Rh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79024-BZ031-E1	Cover Sub-Assy, No.2 Seat Back, Lh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79035-BZ150	Pad Sub-Assy, No.3 Seat Cushion, Rh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79037-BZ130	Pad Sub-Assy, No.3 Seat Back, Rh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79038-BZ030	Pad Sub-Assy, No.3 Seat Back, Lh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79206-BZ050	Leg Sub-Assy, No.2 Seat, Rear	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79225-BZ040-B0	Carpet, Rear No.2 Seat Cushion, Lh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79236-BZ070-B0	Cover, No.2 Seat Leg	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79273-BZ040-B0	Cover, No.2 Seat Hinge	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79303-BZ170	Frame Sub-Assy, No.3 Seat Back, Rh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79304-BZ080	Frame Sub-Assy, No.3 Seat Back, Lh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79318-BZ020	Bracket, No.3 Seat Leg, Rear Rh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79328-BZ020	Bracket, No.3 Seat Leg, Rear Lh	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79360-BZ040	Spring Assy, No.3 Seat Cushion	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79360-BZ041	Spring Assy, No.3 Seat Cushion	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79893-BZ010	Cushion, Fold Seat Leg	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
79952-BZ040-B0	Cover, No.2 Seat Hinge, No.2	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
84139-B1010	New Genuine Part	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
90041-19701	New Genuine Part	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
90041-83061	New Genuine Part	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
90044-67579-B0	Clip, Deck Board	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Seat & Seat Track ([12.2013 - 08.2015] RR NO.2 SEAT (1312-1507)IDN ; (1312-1508)STD..PHL ; (1312-150 8)F651..LO,MID,STD..GEN,MA,SA ; (13 12-1508)F652..GCC ,GEN,MA,MXC,PHL,SA,TH)
