F652

Toyota AVANZA · 2011 · 2,042 parts · 165 categories
F652 ×

← Back to categories

2,042 items

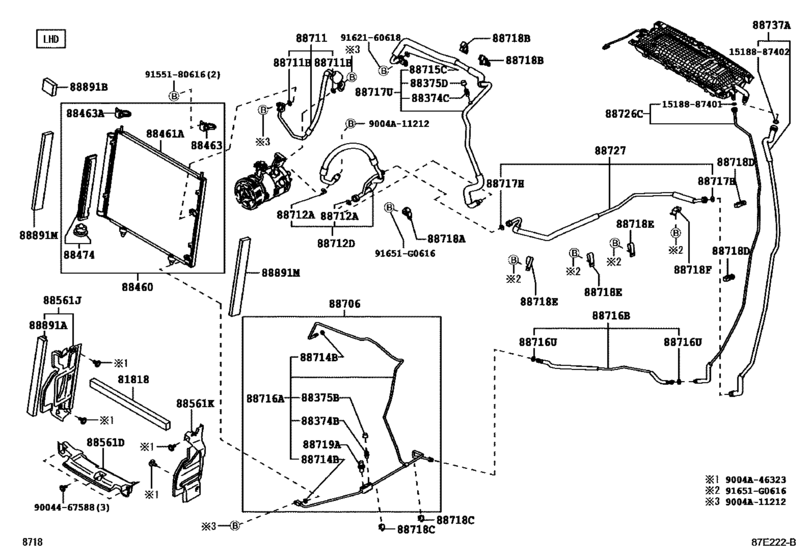

Heating & Air Conditioning - Cooler Piping ([04.2014 - 08.2015] (1404-1508)GCC) 38
#OEMPart name
81818 81818-BZ230 Packing
88374 88374-87601 Valve, Service, No.1
88375 88375-87603 Cap, Service Valve (For Cooler Pipe)
88375 88375-87601 Cap, Service Valve, No.1
88460 88460-BZ150 Condenser Assy, Cooler
88461 88461-BZ050 Core, Cooler Condenser
88463 88463-BZ220 Bracket, Cooler Condenser, No.1
88474 88474-BZ010 Dryer, Cooler
88561 88561-BZ220 Grille, Air Inlet No.3
88561 88561-BZ270 Grille, Air Inlet No.1
88561 88561-BZ200 Grille, Air Inlet No.2
88706 88716-BZA90 Pipe Sub-Assy, Liquid
88711 88711-BZ460 Hose, Cooler Refrigerant Discharge, No.1
88712 15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)
88712 88712-BZ520 Hose, Suction
88714 15188-87401 Ring, O
88716 88716-BZ820 Pipe, Cooler Refrigerant Liquid, A
88716 88716-BZ730 Pipe, Cooler Refrigerant Liquid, B
88717 15188-87402 Ring, O
88717 88717-BZ340 Tube, Suction, No.1
88718 88718-BZ240 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-BZ250 Clamp(For Cooler Refrigerant Pipe), No.2 - NO.3
88718 88718-BZ280 Clamp(For Cooler Refrigerant Pipe), No.3
88718 88718-BZ720 Clamp(For Cooler Refrigerant Pipe), No.4
88718 88718-BZ030 Clamp(For Cooler Refrigerant Pipe), No.5
88718 88718-BZ040 Clamp(For Cooler Refrigerant Hose), No.1
88719 88719-B2010 Switch, Pressure No.1
88726 88716-BZ750 Pipe, Cooler Refrigerant Liquid, C
88727 88717-BZ150 Tube, Suction, No.2
88737 88717-BZ300 Tube, Suction, A(For Cool Box)
88891 81818-BZ250 Packing A (For Cooler)
88891 81818-BZ260 Packing B (For Cooler)
88891 81818-BZ150 Packing
91651 91651-G0616 BOLT WWASHER
9004467588 90044-67588 CLIP
9155180616 91551-80616 BOLT FLANGE
9162160618 91621-60618 New Genuine Part
9162160618 91651-B0620 New Genuine Part
