F652

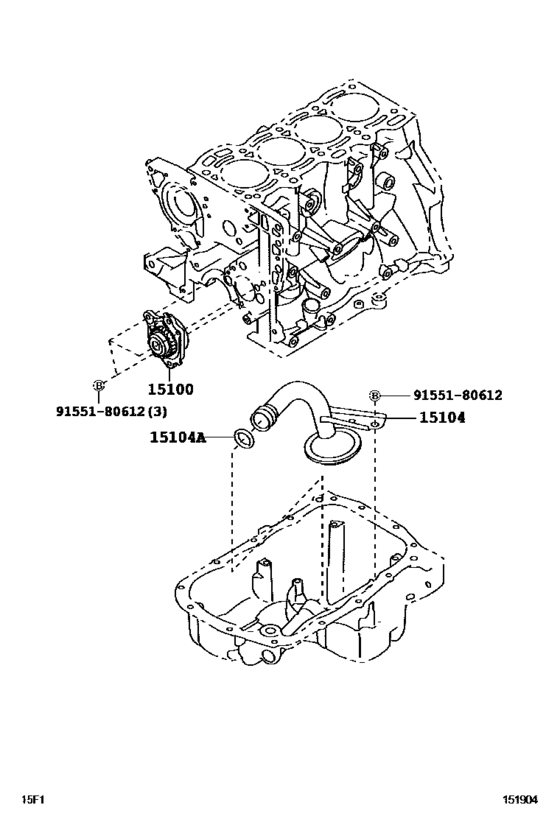

Engine Oil Pump ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) 4
| # | OEM | Part name |
|---|---|---|
| 15100 | 15100-BZ060 | Pump Assy, Oil |
| 15104 | 15140-B0010 | Strainer Sub-Assy, Oil |
| 15104 | 96723-24016 | Ring, O |
| 9155180612 | 91551-80612 | Bolt (For Front Differential Breather Plug Oil Deflector) |
| OEM | Part name | Category |
|---|---|---|
| 15100-BZ060 | Pump Assy, Oil | Engine Oil Pump ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 15140-B0010 | Strainer Sub-Assy, Oil | Engine Oil Pump ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 91551-80612 | Bolt (For Front Differential Breather Plug Oil Deflector) | Engine Oil Pump ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 96723-24016 | Ring, O | Engine Oil Pump ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
