Search › Model › F652
F652

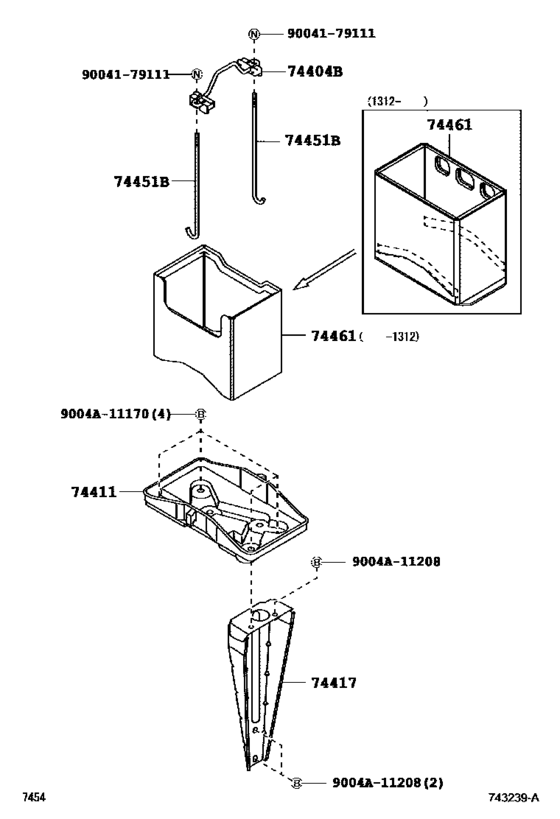

Battery Carrier ([11.2011 - 08.2015] (1111-1508)F651,652) 6
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-BZ010 | Clamp Sub-Assy, Battery |
| 74411 | 74411-BZ010 | Carrier, Battery |
| 74417 | 74417-BZ070 | Bracket, Battery Carrier |
| 74451 | 74451-87Z07 | Bolt, Battery Clamp |
| 74461 | 74405-BZ030 | Cover, Battery |
| 9004179111 | 90041-79111 | Nut, Wing (For Battery Clamp Bolt) |
| OEM | Part name | Category |
|---|---|---|
| 74404-BZ010 | Clamp Sub-Assy, Battery | Battery Carrier ([11.2011 - 08.2015] (1111-1508)F651,652) |
| 74405-BZ030 | Cover, Battery | Battery Carrier ([11.2011 - 08.2015] (1111-1508)F651,652) |
| 74411-BZ010 | Carrier, Battery | Battery Carrier ([11.2011 - 08.2015] (1111-1508)F651,652) |
| 74417-BZ070 | Bracket, Battery Carrier | Battery Carrier ([11.2011 - 08.2015] (1111-1508)F651,652) |
| 74451-87Z07 | Bolt, Battery Clamp | Battery Carrier ([11.2011 - 08.2015] (1111-1508)F651,652) |
| 90041-79111 | Nut, Wing (For Battery Clamp Bolt) | Battery Carrier ([11.2011 - 08.2015] (1111-1508)F651,652) |
