F651

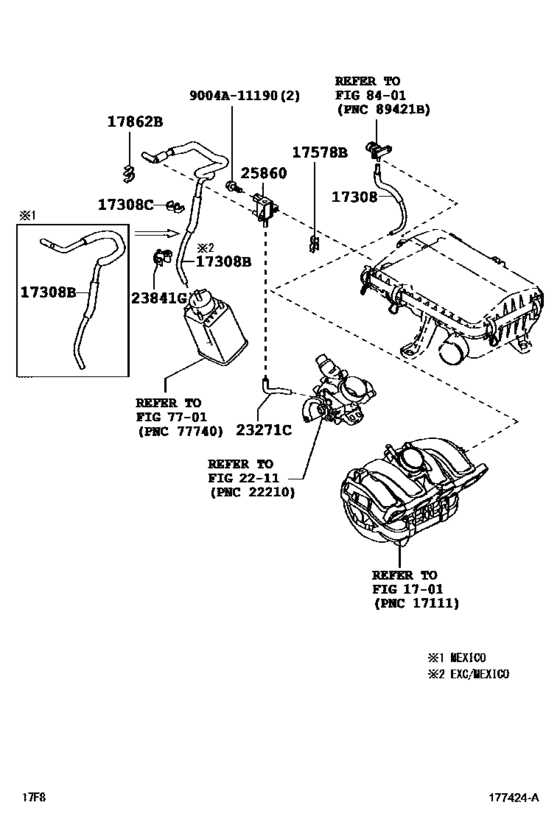

Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) 8
| # | OEM | Part name |
|---|---|---|
| 17308 | 44750-B0050 | Hose Sub-Assy, Vacuum(For Idle-Up) |
| 17308 | 77795-BZ050 | Hose Sub-Assy, Vacuum - CHARCOAL CANISTER OUTLET, NO.2 |
| 17308 | 90044-64797 | Clamp(For Vacuum Hose) |
| 17578 | 90044-64774 | Clamp, Pipe |
| 23271 | 77754-BZ040 | Hose |
| 23841 | 90044-64759 | Clamp, Fuel Hose |
| 25860 | 89470-BZ020 | Valve, Vacuum Switching(For Charcoal Canister) |
| 25860 | 17650-97207 | Valve Assy, Vacuum Switching |
| OEM | Part name | Category |
|---|---|---|
| 17650-97207 | Valve Assy, Vacuum Switching | Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 44750-B0050 | Hose Sub-Assy, Vacuum(For Idle-Up) | Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 77754-BZ040 | Hose | Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 77795-BZ050 | Hose Sub-Assy, Vacuum - CHARCOAL CANISTER OUTLET, NO.2 | Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 89470-BZ020 | Valve, Vacuum Switching(For Charcoal Canister) | Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 90044-64759 | Clamp, Fuel Hose | Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 90044-64774 | Clamp, Pipe | Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
| 90044-64797 | Clamp(For Vacuum Hose) | Vacuum Piping ([11.2011 - 08.2015] (1111-1508)K3VE,3SZVE) |
