F602

Toyota AVANZA · 2006 · 2,601 parts · 153 categories

← Back to categories

2,601 items

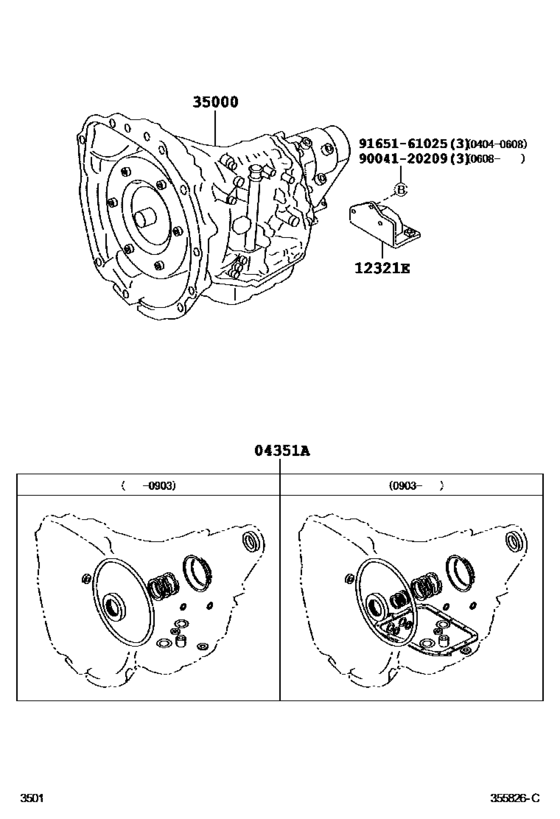

Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT) 9

#	OEM	Part name
4351	04351-B0010	Gasket Kit, Transaxle Overhaul(Atm)
4351	04351-B0012	Gasket Kit, Automatic Transmission Overhaul
4351	04351-B0020	Gasket Kit, Transaxle Overhaul(Atm)
4351	04351-B0021	Gasket Kit, Transaxle Overhaul(Atm)
12321	12321-BZ110	Bracket, Engine Mountimg, Rear
35000	35000-B0020	Transaxle Assy, Automatic
35000	35000-B0040	Transaxle Assy, Automatic
9004120209	90041-20209	New Genuine Part
9165161025	91651-61025	Bolt with washer

OEM	Part name	Category
04351-B0010	Gasket Kit, Transaxle Overhaul(Atm)	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)
04351-B0012	Gasket Kit, Automatic Transmission Overhaul	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)
04351-B0020	Gasket Kit, Transaxle Overhaul(Atm)	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)
04351-B0021	Gasket Kit, Transaxle Overhaul(Atm)	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)
12321-BZ110	Bracket, Engine Mountimg, Rear	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)
35000-B0020	Transaxle Assy, Automatic	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)
35000-B0040	Transaxle Assy, Automatic	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)
90041-20209	New Genuine Part	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)
91651-61025	Bolt with washer	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2004 - ] (0404- )4AT)

Source: Public OEM parts-catalog data
Variants: 2 / 36
Category: 153
Collected: 2026-08-02
