Search › Model › F602

F602

Toyota AVANZA · 2006 · 2,601 parts · 153 categories

2,601 items

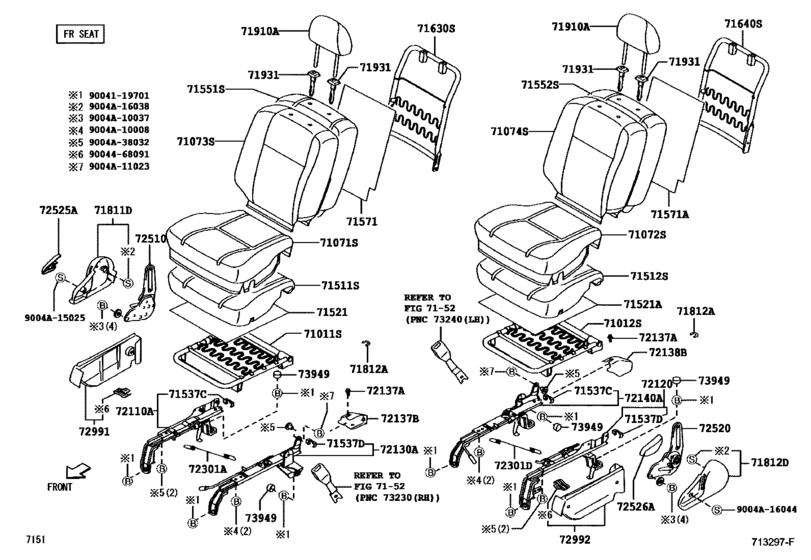

Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA) 55

#	OEM	Part name
71011	71011-BZ020	Frame Sub-Assy, Front Seat Cushion, Rh
71012	71012-BZ020	Frame Sub-Assy, Front Seat Cushion, Lh
71071	71071-BZ690-E0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-BZC30-C0	Cover, Front Seat Cushion, Rh(For Separate Type)
71072	71072-BZ670-E0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-BZC40-C0	Cover, Front Seat Cushion, Lh(For Separate Type)
71073	71073-BZ750-E0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-BZC60-C0	Cover, Front Seat Back, Rh(For Separate Type)
71074	71074-BZ610-E0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-BZ890-C0	Cover, Front Seat Back, Lh(For Separate Type)
71511	71501-BZ030	Pad, Front Seat Cushion, Rh(For Separate Type)
71512	71502-BZ030	Pad, Front Seat Cushion, Lh (For Separate Type)
71521	71521-BZ020	Pad, Front Seat Cushion Silencer, A
71537	71537-BZ010	Protector, Front Seat Cushion Edge, Rh
71551	71505-BZ030	Pad, Front Seat Back, Rh(For Separate Type)
71552	71506-BZ020	Pad, Front Seat Back, Lh(For Separate Type)
71571	71571-BZ020	Pad, Front Seat Back Silencer, A
71630	71630-BZ020	Spring Assy, Front Seat Back, Rh(For Separate Type)
71640	71640-BZ020	Spring Assy, Front Seat Back, Lh(For Separate Type)
71811	71811-BZ020-B0	Shield, Front Seat Cushion, Rh
71811	71811-BZ020-E0	Shield, Front Seat Cushion, Rh
71812	71812-87Z03	Ring, Hog, Small (For Front Seat)
71812	71812-BZ020-B0	Shield, Front Seat Cushion, Lh
71812	71812-BZ020-E0	Shield, Front Seat Cushion, Lh
71910	71910-BZ590-E0	Headrest Assy, Front Seat
71910	71910-BZA20-C0	Headrest Assy, Front Seat
71931	71930-87Z03-B0	Support, Front Seat Headrest
71931	71930-87Z03-E0	Support, Front Seat Headrest
71931	71931-87Z03-B0	Support, Front Seat Headrest
71931	71931-87Z03-E0	Support, Front Seat Headrest
72110	72110-BZ050	Track Assy, Front Seat, Outer Rh
72120	72120-BZ010	Track Assy, Front Seat, Outer Lh
72130	72130-BZ010	Track Assy, Front Seat, Inner Rh
72137	90467-07191-B2	Clip(For Rear Seat)
72137	90467-07191-E2	Clip(For Rear Seat)
72137	72157-BZ010-B0	Cover, Seat Track, Rh
72137	72157-BZ010-E0	Cover, Seat Track, Rh
72138	72158-BZ010-B0	Cover, Seat Track, Lh
72138	72158-BZ010-E0	Cover, Seat Track, Lh
72140	72140-BZ010	Track Assy, Front Seat,inner Lh
72301	72301-BZ020	Wire Sub-Assy, Seat Track Equalizing, Rh
72510	72510-BZ040	Adjuster Assy, Reclining Seat Back, Rh
72520	72520-BZ040	Adjuster Assy, Reclining Seat Back, Lh
72525	72525-BZ020-B0	Handle, Reclining Adjuster Release, Rh
72525	72525-BZ020-E0	Handle, Reclining Adjuster Release, Rh
72526	72526-BZ020-B0	Handle, Reclining Adjuster Release, Lh
72526	72526-BZ020-E0	Handle, Reclining Adjuster Release, Lh
72991	72991-BZ020-B0	Cover, Front Seat Cushion, Rh
72991	72991-BZ020-E0	Cover, Front Seat Cushion, Rh
72992	72992-BZ020-B0	Cover, Front Seat Cushion, Lh
72992	72992-BZ020-E0	Cover, Front Seat Cushion, Lh
73949	73949-87502	Cap
9004119701	90041-19701	New Genuine Part
9004468091	90044-68091	Clip(For Panel, Instrument Cluster Finish)
9004468091	90044-68324	Clip(For Panel, Instrument Cluster Finish)

OEM	Part name	Category
71011-BZ020	Frame Sub-Assy, Front Seat Cushion, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71012-BZ020	Frame Sub-Assy, Front Seat Cushion, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71071-BZ690-E0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71071-BZC30-C0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71072-BZ670-E0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71072-BZC40-C0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71073-BZ750-E0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71073-BZC60-C0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71074-BZ610-E0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71074-BZ890-C0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71501-BZ030	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71502-BZ030	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71505-BZ030	Pad, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71506-BZ020	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71521-BZ020	Pad, Front Seat Cushion Silencer, A	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71537-BZ010	Protector, Front Seat Cushion Edge, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71571-BZ020	Pad, Front Seat Back Silencer, A	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71630-BZ020	Spring Assy, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71640-BZ020	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71811-BZ020-B0	Shield, Front Seat Cushion, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71811-BZ020-E0	Shield, Front Seat Cushion, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71812-87Z03	Ring, Hog, Small (For Front Seat)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71812-BZ020-B0	Shield, Front Seat Cushion, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71812-BZ020-E0	Shield, Front Seat Cushion, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71910-BZ590-E0	Headrest Assy, Front Seat	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71910-BZA20-C0	Headrest Assy, Front Seat	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71930-87Z03-B0	Support, Front Seat Headrest	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71930-87Z03-E0	Support, Front Seat Headrest	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71931-87Z03-B0	Support, Front Seat Headrest	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
71931-87Z03-E0	Support, Front Seat Headrest	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72110-BZ050	Track Assy, Front Seat, Outer Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72120-BZ010	Track Assy, Front Seat, Outer Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72130-BZ010	Track Assy, Front Seat, Inner Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72140-BZ010	Track Assy, Front Seat,inner Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72157-BZ010-B0	Cover, Seat Track, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72157-BZ010-E0	Cover, Seat Track, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72158-BZ010-B0	Cover, Seat Track, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72158-BZ010-E0	Cover, Seat Track, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72301-BZ020	Wire Sub-Assy, Seat Track Equalizing, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72510-BZ040	Adjuster Assy, Reclining Seat Back, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72520-BZ040	Adjuster Assy, Reclining Seat Back, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72525-BZ020-B0	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72525-BZ020-E0	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72526-BZ020-B0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72526-BZ020-E0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72991-BZ020-B0	Cover, Front Seat Cushion, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72991-BZ020-E0	Cover, Front Seat Cushion, Rh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72992-BZ020-B0	Cover, Front Seat Cushion, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
72992-BZ020-E0	Cover, Front Seat Cushion, Lh	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
73949-87502	Cap	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
90041-19701	New Genuine Part	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
90044-68091	Clip(For Panel, Instrument Cluster Finish)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
90044-68324	Clip(For Panel, Instrument Cluster Finish)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
90467-07191-B2	Clip(For Rear Seat)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
90467-07191-E2	Clip(For Rear Seat)	Seat & Seat Track ([10.2004 - ] FRONT SEAT (0410- )MA)
